Comprehensive Guide for the GAIA AIR – Ampel360XWLRGA Aircraft Autopilot System
| Version | Date | Author | Description / Change Notes | Impact on Design | Affected Sections |
|---|---|---|---|---|---|
| 1.0 | 2024-12-29 | Amedeo Pelliccia, ChatGPT & Gemini | Creation of the consolidated Autopilot System document, merging all new enhancements (predictive maintenance, quantum security, etc.). | High | All |
The Autopilot System is a critical component of the GAIA AIR – Ampel360XWLRGA Aircraft, providing automated control of the aircraft's flight path, reducing pilot workload, and enhancing flight safety and efficiency. This document serves as a comprehensive guide for the management, operation, maintenance, and troubleshooting of the Autopilot System, adhering to ATA Chapter 22 standards and regulatory requirements from authorities such as EASA and FAA.
The purpose of this document is to:
- Define Autopilot System Management Requirements: Establish procedures and standards for the operation, maintenance, troubleshooting, and management of the Autopilot System.
- Ensure Compliance: Guarantee adherence to ATA Chapter 22 standards and regulatory requirements set by EASA, FAA, and other relevant aviation authorities.
- Standardize Procedures: Provide a unified approach for Autopilot System maintenance, operation, and troubleshooting, promoting consistency across all operational teams.
- Facilitate Training: Offer guidelines and serve as a reference for training personnel in Autopilot System operation, maintenance, and troubleshooting techniques.
- Enhance Operational Safety: Ensure the reliability and performance of the Autopilot System, contributing to the overall safety of flight operations.
Breakdown: This section clearly and concisely states the objectives of the document, emphasizing the importance of the Autopilot System and the need for standardized procedures.
This document encompasses the framework for managing the Autopilot System on the GAIA AIR – Ampel360XWLRGA Aircraft project, including but not limited to:
- Autopilot System Design and Configuration: Overview of the system's design, components, and their functions.
- Operational Procedures: Guidelines for operating the Autopilot System during various phases of flight.
- Maintenance and Inspection: Procedures for routine and non-routine maintenance, inspections, and servicing.
- Troubleshooting: Methods for diagnosing and resolving Autopilot System issues, including the use of diagnostic tools and BITE (Built-In Test Equipment).
- Component Replacement: Guidelines for replacing Autopilot System components, including removal, installation, and testing procedures.
- Documentation and Reporting: Establishing systems for documenting Autopilot System operation, maintenance activities, issues, and resolutions.
- Integration with Advanced Technologies: Utilization of technologies such as predictive maintenance tools, automated diagnostics, and digital twins.
- Training and Awareness: Ensuring personnel are adequately trained in Autopilot System operation, maintenance, and safety procedures.
- Configuration Management: Maintaining control over the Autopilot System's configuration, including software and hardware versions.
Breakdown: This section provides a comprehensive overview of what the document covers, ensuring that readers understand the breadth of the Autopilot System management addressed.
This document is organized into the following key sections:
- 22.10 Introduction: Provides the purpose, scope, document structure, and terminology related to the Autopilot System.
- 22.20 Overview of ATA Chapter 22: Explores the importance and principles of Autopilot System operation and maintenance.
- 22.30 Compliance and Standards: Ensures Autopilot System procedures comply with ATA standards and regulatory requirements.
- 22.40 Application to GAIA AIR Project: Details the specific application of the Autopilot System within the GAIA AIR project.
- 22.50 Autopilot System Maintenance Procedures: Outlines preventive and corrective maintenance procedures.
- 22.60 Roles and Responsibilities: Defines the roles of personnel involved in the Autopilot System's lifecycle.
- 22.70 Integration with Other Documents and Systems: Describes how the Autopilot System integrates with other systems and documentation.
- 22.80 Training and Awareness: Details training programs and awareness campaigns for personnel.
- 22.90 Audits and Continuous Improvement: Covers internal audits and processes for continuous improvement.
- 22.100 Human Factors: Addresses ergonomics, reducing human error, and HMI design.
- 22.110 Case Studies: Presents case studies on successful implementations and technological impacts.
- 22.120 Future Trends: Discusses advanced technologies, evolving regulations, and predictive maintenance.
- 22.130 References: Lists all references used in the document.
- 22.140 Visual Aids: Provides diagrams and charts related to the Autopilot System.
- 22.150 Sample Forms and Templates: Includes checklists, report templates, and logs.
- 22.170 Acronyms and Abbreviations: Defines all acronyms and abbreviations used.
- 22.180 Companion (Introductory Insights): Offers introductory insights related to the Autopilot System.
- 22.190 Generator (Design Solutions): Presents design solutions for the Autopilot System.
- 22.200 Implementator (Scalability and Operation): Discusses scalability and operational aspects.
The Autopilot System is integral to modern aviation, enabling precise control of the aircraft's flight path with minimal pilot intervention. It enhances safety by reducing human error, increases efficiency by optimizing flight parameters, and allows pilots to focus on strategic decision-making and monitoring rather than routine control tasks. In the context of the GAIA AIR – Ampel360XWLRGA Aircraft, the Autopilot System is designed to meet advanced operational requirements, ensuring reliability and performance across various flight conditions.
The operation of the Autopilot System is based on fundamental principles such as stability, redundancy, and fail-safe mechanisms. Maintenance practices adhere to these principles to ensure system reliability and performance. Regular inspections, preventive maintenance, and timely troubleshooting are essential to uphold the system's integrity.
Key Principles:
- Stability: Ensuring that the Autopilot System maintains a stable flight path under varying conditions.
- Redundancy: Incorporating multiple layers of backups to prevent system failures.
- Fail-Safe Mechanisms: Designing the system to default to a safe state in the event of a malfunction.
- Continuous Monitoring: Implementing real-time monitoring of system performance to detect anomalies early.
- Predictive Maintenance: Utilizing data analytics and AI to predict potential failures before they occur.
Compliance with regulatory bodies like EASA (European Union Aviation Safety Agency) and FAA (Federal Aviation Administration) is mandatory. These regulations dictate standards for system design, maintenance, operation, and safety protocols to ensure the Autopilot System meets all necessary aviation safety requirements.
Key Regulatory Aspects:
- Certification: Autopilot systems must be certified by EASA and FAA before operational use.
- Operational Standards: Adherence to operational guidelines for autopilot usage during various flight phases.
- Maintenance Standards: Compliance with maintenance procedures and intervals as specified by regulatory authorities.
- Safety Protocols: Implementation of safety measures to prevent accidents related to autopilot malfunctions.
Adherence to ATA Chapter 22 standards ensures consistency in Autopilot System documentation, maintenance procedures, and operational guidelines. These standards provide a structured approach to managing the Autopilot System lifecycle.
Key ATA Standards:
- Documentation Standards: Uniform format for manuals, checklists, and reports.
- Maintenance Procedures: Standardized preventive and corrective maintenance practices.
- Operational Guidelines: Consistent procedures for operating the Autopilot System across different aircraft models.
- Safety Standards: Established safety measures to mitigate risks associated with autopilot usage.
Risk assessments are integrated into the Autopilot System management to identify potential hazards, evaluate their impact, and implement mitigation strategies. This proactive approach enhances safety and reliability.
Risk Assessment Process:
- Hazard Identification: Identify potential risks associated with the Autopilot System.
- Risk Analysis: Evaluate the likelihood and severity of identified hazards.
- Risk Evaluation: Prioritize risks based on their potential impact.
- Mitigation Strategies: Develop and implement measures to reduce or eliminate risks.
- Monitoring and Review: Continuously monitor risk factors and review mitigation effectiveness.
Design Specifications:
-
Hardware Components:
- Flight Control Computers (FCC): Central processing units that execute autopilot commands.
- Servo Actuators: Mechanisms that adjust control surfaces based on FCC inputs.
- Sensors: Include gyroscopes, accelerometers, airspeed indicators, and altitude sensors.
- Mode Control Panel (MCP): Interface for pilots to interact with the autopilot system.
-
Software Architecture:
- Control Algorithms: Ensure accurate flight path tracking and stability.
- Redundancy Systems: Multiple processing units to prevent single points of failure.
- User Interface Software: Provides intuitive controls and displays for pilots.
-
Configuration Settings:
- Operational Modes: AUTO, MANUAL, ALTITUDE HOLD, NAVIGATION TRACK.
- Safety Settings: Limits on operational parameters to prevent overcontrol.
Integration with Aircraft Systems:
- Navigation Systems: Synchronization with GPS and inertial navigation systems for precise path tracking.
- Engine Systems: Coordination with engine controls for optimal thrust management.
- Communication Systems: Integration with avionics for seamless data exchange.
Standard Operating Procedures (SOPs):
-
Activation:
- Engage Autopilot via MCP.
- Verify system status indicators.
- Confirm flight parameters (altitude, speed).
-
Configuration:
- Input desired flight path parameters.
- Select appropriate operational mode.
- Monitor system responses.
-
Disengagement:
- Manually disengage Autopilot via MCP.
- Transition to manual flight controls.
- Verify system status.
Flight Phases:
- Takeoff: Manual control until safe altitude is reached, then engage Autopilot.
- Cruise: Utilize Autopilot for optimal fuel efficiency and flight path maintenance.
- Descent: Gradual disengagement of Autopilot to allow manual control for landing.
- Emergency Situations: Procedures for rapid disengagement and manual takeover.
Maintenance Schedule:
- Daily Inspections: System status checks and basic functionality tests.
- Weekly Maintenance: Detailed inspections of hardware components and software diagnostics.
- Monthly Overhauls: Comprehensive system reviews, including firmware updates and sensor calibrations.
- Annual Certifications: Full system certification and compliance checks by authorized personnel.
Inspection Procedures:
- Visual Inspections: Check for physical damages, loose connections, and wear on components.
- Functional Tests: Execute autopilot commands and verify system responses.
- Calibration: Ensure sensors and actuators are accurately calibrated to specifications.
- Software Updates: Install and verify the latest firmware and software patches.
Documentation Protocols:
- Maintenance Logs: Record all maintenance activities, including date, personnel, tasks performed, and outcomes.
- Inspection Reports: Detailed reports of each inspection, highlighting any findings or required actions.
- Troubleshooting Records: Logs of identified issues, diagnostic steps taken, and resolutions implemented.
- Component Replacement Records: Documentation of replaced parts, including serial numbers and specifications.
Reporting Systems:
- Automated Reporting: Utilize CMMS for real-time reporting and tracking of maintenance activities.
- Incident Reporting: Immediate documentation and reporting of any system malfunctions or failures.
- Compliance Reporting: Generate reports to demonstrate adherence to regulatory and ATA standards during audits.
Preventive maintenance aims to minimize system failures and extend the Autopilot System's lifespan through regular inspections and servicing.
Scheduled Tasks:
- System Calibration: Monthly calibration of sensors and actuators to ensure accurate readings and responses.
- Software Updates: Quarterly updates to firmware and software to incorporate improvements and security patches.
- Component Lubrication: Bi-monthly lubrication of moving parts to reduce wear and prevent malfunctions.
- Data Backup: Weekly backups of system data and configurations to prevent data loss.
Maintenance Benefits:
- Increased Reliability: Regular servicing ensures consistent system performance.
- Cost Efficiency: Preventing major failures reduces long-term maintenance costs.
- Enhanced Safety: Early detection of potential issues mitigates risks during flight operations.

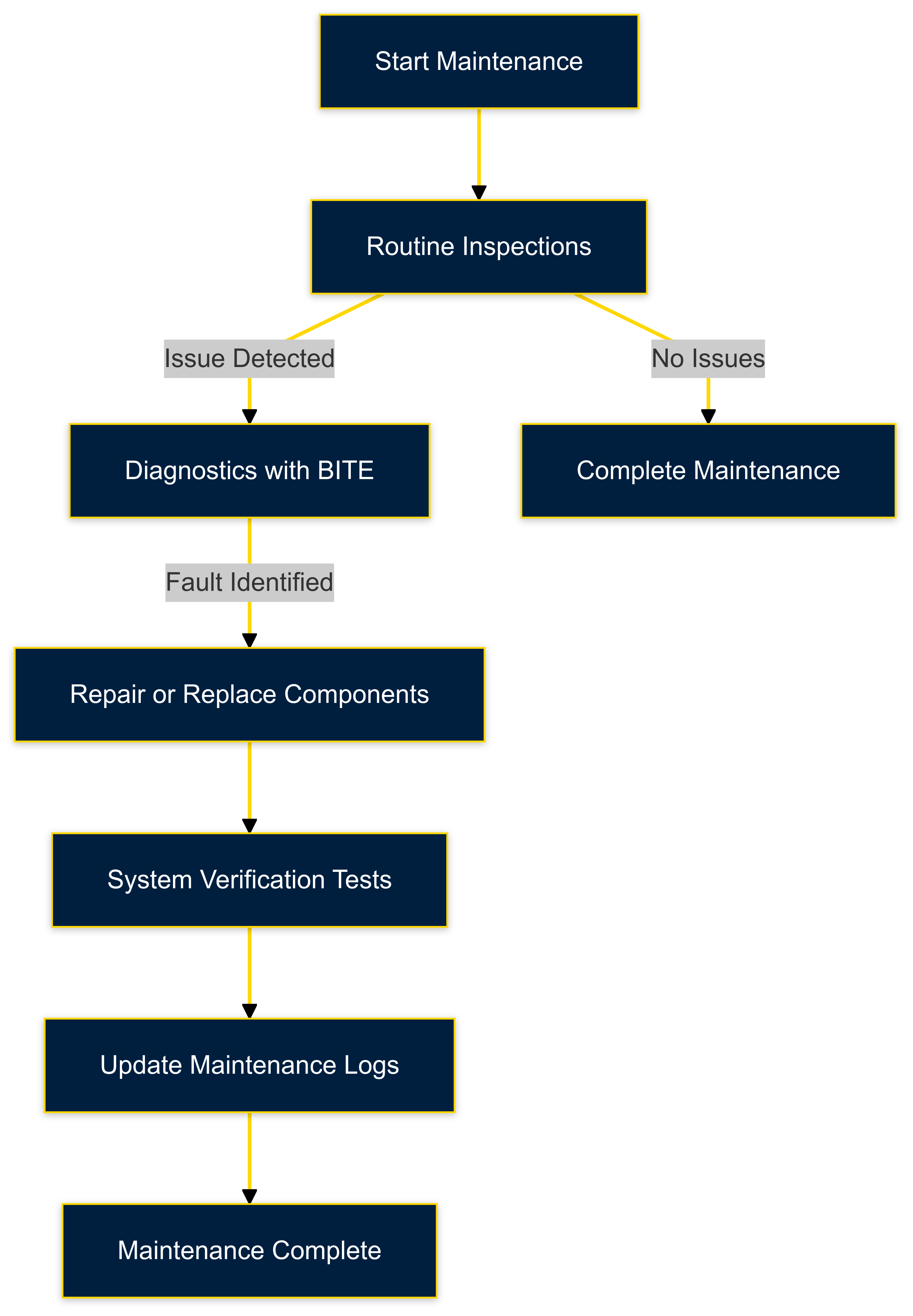

Corrective maintenance addresses system malfunctions and failures to restore the Autopilot System to operational status.
Procedures:
-
Issue Identification:
- Receive fault codes from BITE.
- Analyze system logs for anomalies.
-
Diagnosis:
- Conduct visual inspections of affected components.
- Utilize diagnostic tools to pinpoint the malfunction.
-
Repair/Replacement:
- Repair minor issues such as loose connections or software glitches.
- Replace faulty hardware components as necessary.
-
Verification:
- Test the system to confirm the issue is resolved.
- Update maintenance logs with corrective actions taken.
Documentation:
- Record all corrective maintenance activities, including root cause analysis and steps taken to resolve the issue.
A systematic approach to diagnosing and resolving Autopilot System issues ensures efficient problem resolution and minimal downtime.
Troubleshooting Steps:
-
Safety First:
- Ensure the aircraft is in a safe configuration.
- Follow lockout/tagout procedures before commencing troubleshooting.
-
Consult Documentation:
- Refer to the Autopilot Maintenance Manual (AMM) and Troubleshooting Manual (TSM).
-
Data Collection:
- Gather data from BITE, system logs, and pilot reports.
-
Component Isolation:
- Isolate subsystems to identify the faulty component.
-
Verification:
- After repairs, verify system functionality through tests.
-
Documentation:
- Document all troubleshooting steps, findings, and corrective actions.
Common Issues and Solutions:
| Symptom | Possible Causes | Troubleshooting Steps |
|---|---|---|
| Autopilot Not Engaging | Power supply failure, software glitch, sensor malfunction | 1. Check power sources. 2. Reset system. 3. Verify sensor functionality. 4. Reinstall software if necessary. |
| Erratic Flight Path | Sensor calibration issues, actuator malfunctions | 1. Calibrate sensors. 2. Inspect actuators for wear. 3. Replace faulty sensors or actuators. |
| System Lag or Delay | Software performance issues, data transmission delays | 1. Update software. 2. Check data cables and connections. 3. Optimize network settings. |
| Unexpected Disengagement | Overheating, software errors, hardware failures | 1. Inspect for overheating. 2. Check for software errors and apply patches. 3. Replace faulty hardware components. |
| Inaccurate Navigation | GPS signal loss, inertial navigation system (INS) errors | 1. Verify GPS connectivity. 2. Calibrate INS. 3. Perform system diagnostics to identify underlying issues. |
Enhance the Autopilot System’s maintenance workflow by incorporating predictive strategies driven by AI and quantum data analytics, thereby increasing reliability and minimizing unplanned downtime.
Predictive maintenance focuses on forecasting potential failures before they occur. By leveraging large-scale data analytics (including quantum-enhanced computations) and machine learning, the Autopilot System can anticipate required maintenance actions, optimize scheduling, and maintain continuous performance.
- Real-Time Sensor Data: Collect parameters such as temperature, pressure, vibration, and other operational metrics from critical Autopilot components.
- Historical Records: Analyze past maintenance, failure, and parts-replacement data to detect early-warning signals.
- Flight Profiles: Include flight hours, usage patterns, and environmental conditions for holistic analysis.
- Machine Learning Models: Identify correlations in data that signal impending malfunctions.
- Quantum Algorithms: Rapidly analyze extensive datasets, enabling sharper anomaly detection and more accurate forecasts.
- Proactive Alerts: Generate maintenance warnings whenever operational data deviates from baseline thresholds.
- CMMS Synchronization: Integrate predictive outputs into the Computerized Maintenance Management System for automated work orders.
- Prioritized Actions: Rank tasks by urgency, ensuring critical repairs are addressed promptly.
- Continuous Feedback: Update models with fresh data to improve prediction accuracy over time.
- Minimized Downtime: Early detection of issues curtails unexpected outages.
- Cost Efficiency: Proactive interventions reduce maintenance costs and part replacements.
- Reliability: Ensures steady Autopilot performance, enhancing overall flight safety.
- Data Quality: Ensure continuous, accurate data streams.
- System Security: Protect predictive datasets from cyber threats (refer to §22.93).
- Personnel Training: Train maintenance staff to interpret AI-based alerts and incorporate them into routine checks.
The following diagram illustrates how predictive maintenance leverages real-time and historical data for anomaly detection and proactive scheduling:
flowchart TD
Sensors[Real-Time Data Streams] -->|Parameters: Temp, Pressure| AI[AI-Based Analytics]
Historical[Historical Logs] -->|Failure Patterns| AI
AI -->|Anomaly Detected| CMMS[Maintenance Scheduler]
CMMS -->|Work Order| Technician[Maintenance Team]
Technician --> AI
%% Styling
style Sensors fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Historical fill:#00274C,stroke:#FEC524,color:#FFFFFF
style AI fill:#00274C,stroke:#FEC524,color:#FFFFFF
style CMMS fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Technician fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Guidelines for safely and efficiently replacing Autopilot System components ensure minimal disruption and maintain system integrity.
Replacement Procedures:
-
Identify Faulty Component:
- Use diagnostic tools and system logs to confirm the faulty part.
-
Safety Precautions:
- Follow lockout/tagout procedures.
- Use appropriate PPE.
-
Remove Faulty Component:
- Disconnect power sources.
- Carefully remove the component following manufacturer guidelines.
-
Install New Component:
- Ensure compatibility and correct specifications.
- Securely install the new component.
-
System Testing:
- Perform functional tests to verify successful replacement.
- Update maintenance records with replacement details.
Documentation:
- Record part numbers, serial numbers, and specifications of replaced components.
- Update system diagrams and configuration records accordingly.

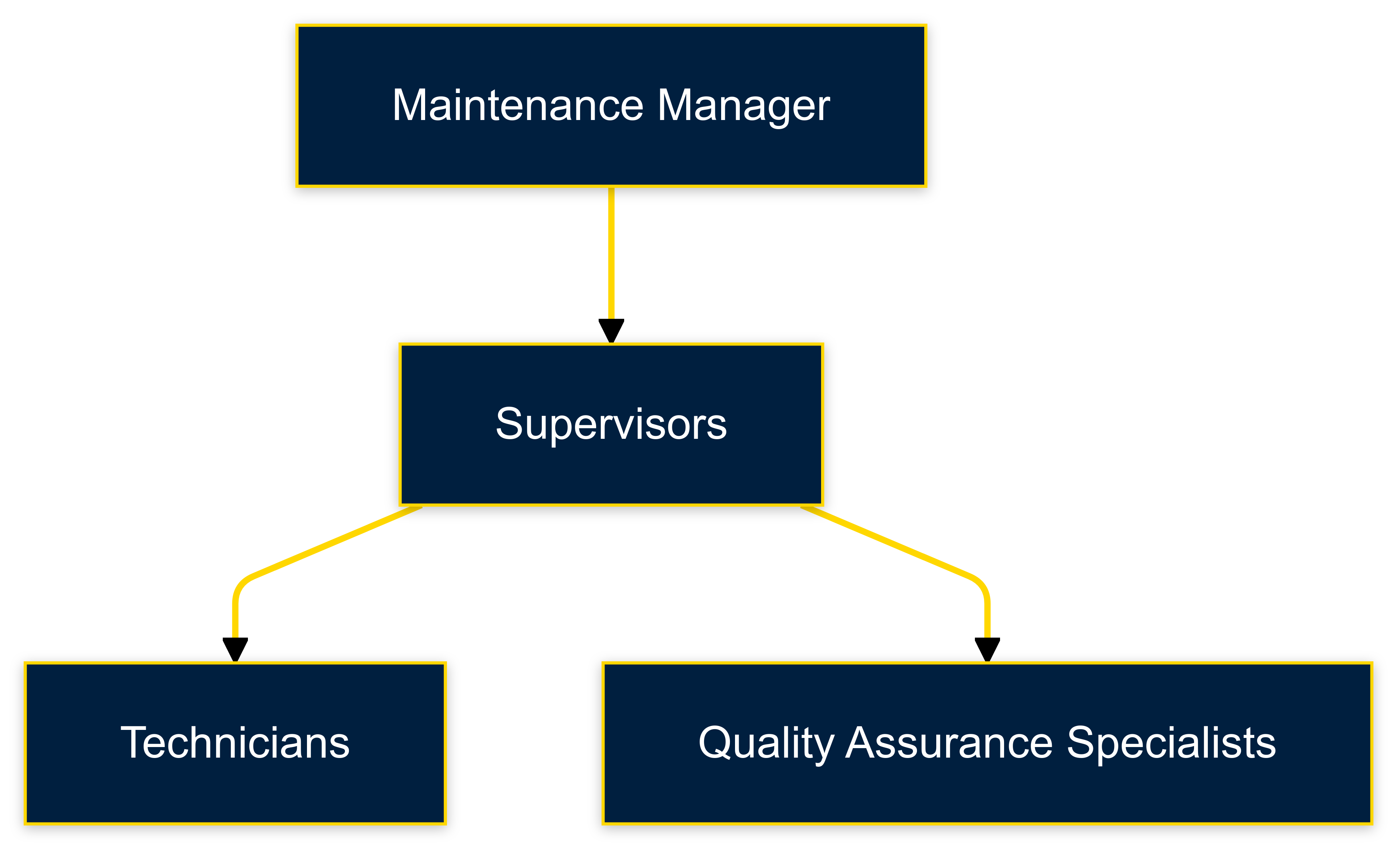

Responsibilities:
- Oversee all maintenance activities related to the Autopilot System.
- Ensure compliance with ATA Chapter 22 standards and regulatory requirements.
- Coordinate training programs for maintenance personnel.
- Manage maintenance schedules and resource allocation.
- Conduct regular reviews and audits of maintenance practices.
- Implement continuous improvement initiatives.
Qualifications:
- Certified aircraft maintenance engineer.
- Extensive experience with autopilot systems.
- Strong leadership and organizational skills.
- Knowledge of regulatory standards and compliance requirements.
Responsibilities:
- Perform routine and corrective maintenance on the Autopilot System.
- Conduct inspections and diagnostics using approved tools and procedures.
- Document all maintenance activities accurately.
- Report any anomalies or potential issues promptly.
- Participate in training programs to stay updated on system advancements.
Qualifications:
- Certified aircraft maintenance technician.
- Hands-on experience with autopilot systems.
- Proficiency in using diagnostic tools and CMMS.
- Attention to detail and adherence to safety protocols.
Responsibilities:
- Ensure all maintenance activities meet quality and safety standards.
- Conduct regular audits and inspections of maintenance processes.
- Validate the effectiveness of maintenance procedures.
- Identify areas for improvement and recommend corrective actions.
- Maintain records of quality assurance activities.
Qualifications:
- Certified quality assurance professional.
- In-depth knowledge of ATA Chapter 22 and aviation standards.
- Analytical skills for evaluating maintenance processes.
- Strong communication and reporting abilities.
Responsibilities:
- Operate the Autopilot System during flights as per SOPs.
- Monitor system performance and respond to any alerts or malfunctions.
- Perform manual control adjustments when necessary.
- Report any system anomalies to maintenance personnel.
- Participate in training programs to maintain proficiency in autopilot operations.
Qualifications:
- Certified pilot with experience in advanced autopilot systems.
- Comprehensive understanding of Autopilot System functionalities.
- Ability to respond swiftly and effectively to system issues.
- Commitment to continuous learning and adherence to safety protocols.
Dependencies Matrix:
| Autopilot System Component | Dependent Systems | Description of Dependencies |
|---|---|---|
| Flight Control Computers (FCC) | Navigation Systems, Engine Controls | Synchronizes flight path data with engine thrust management systems. |
| Servo Actuators | Control Surfaces (Ailerons, Rudder) | Adjusts control surfaces based on FCC commands for precise flight control. |
| Sensors | Inertial Navigation System (INS), GPS | Provides real-time data for accurate autopilot adjustments. |
| Mode Control Panel (MCP) | Pilot Interface, Flight Deck Displays | Enables pilots to interact with and configure the Autopilot System. |
Glossary:
| Term | Definition |
|---|---|
| Autopilot System | Automated system controlling the aircraft's flight path without pilot input. |
| BITE | Built-In Test Equipment used for system diagnostics and fault detection. |
| FCC | Flight Control Computers responsible for processing autopilot commands. |
| HMI | Human-Machine Interface facilitating interaction between users and systems. |
| INS | Inertial Navigation System providing positional data without external references. |
| MCP | Mode Control Panel allowing pilots to select and configure autopilot modes. |
| CMMS | Computerized Maintenance Management System for tracking maintenance activities. |
The Autopilot System integrates seamlessly with the Computerized Maintenance Management System (CMMS) to streamline maintenance tracking, scheduling, and documentation.
Integration Features:
- Automated Work Orders: Generate work orders based on system alerts, fault codes, and scheduled maintenance tasks.
- Real-Time Tracking: Monitor maintenance activities in real-time, ensuring timely completion of tasks.
- Documentation Linking: Access relevant maintenance manuals, schematics, and troubleshooting guides directly from the CMMS.
- Reporting and Analytics: Utilize CMMS reporting tools to analyze maintenance trends, system reliability, and performance metrics.
Benefits:
- Efficiency: Reduces manual tracking and increases the speed of maintenance operations.
- Accuracy: Minimizes errors in maintenance scheduling and documentation.
- Visibility: Provides comprehensive visibility into maintenance activities and system health.
The Autopilot System interacts with various other ATA chapters to ensure cohesive and efficient system management across the aircraft.
Key Integrations:
- ATA Chapter 33 (Navigation): Ensures synchronization between navigation data and autopilot commands.
- ATA Chapter 35 (Landing Gear): Coordinates landing procedures and autopilot control during approach and landing.
- ATA Chapter 36 (Propulsion): Integrates engine thrust management with autopilot flight path adjustments.
- ATA Chapter 45 (Electrical Power): Manages power supply to the Autopilot System, ensuring reliability and redundancy.
Integration Benefits:
- Holistic System Management: Facilitates comprehensive oversight and coordination between interconnected systems.
- Enhanced Reliability: Reduces system conflicts and ensures consistent performance across different aircraft domains.
- Improved Safety: Streamlines communication and data exchange between systems, enhancing overall flight safety.
Leverage digital twin technology, updated in real time, to model and optimize the Autopilot System’s behavior across diverse operational scenarios.
A digital twin is a virtual replica of the physical Autopilot System, enabling risk-free testing, refinement, and optimization. It reduces development costs, enhances safety, and provides a robust platform for predictive analysis and scenario testing.
- Data Ingestion: Mirror sensor inputs, flight data, and historical logs into the digital environment for accurate system representation.
- Virtual Modeling: Simulate critical conditions, such as weather variability, mechanical stress, and system loads, to assess performance under various scenarios.
- Continuous Updates: Maintain real-time synchronization with live operational metrics for accurate and dynamic modeling.
- Scenario Testing: Validate the system’s resilience by simulating extreme conditions such as emergencies or high-traffic airspace operations before deployment.
- Predictive Simulations: Anticipate potential hardware and software stress points to prevent failures.
- Rapid Iterations: Test and refine new patches or parameter changes in a controlled, zero-risk virtual environment.
- Training Utility: Provide advanced training scenarios for both pilots and maintenance teams to enhance readiness and competency.
- Enhanced Reliability: Detect and address potential issues early.
- Reduced Costs: Minimize the need for full-scale physical testing, conserving resources.
- Faster Upgrades: Expedite validation and deployment of system enhancements.
- Scalability: Ensure the digital twin can adapt to additional features and future hardware expansions.
- Data Security: Protect the digital twin’s data channels from unauthorized access or intrusion.
- Infrastructure: Allocate sufficient computational resources to support real-time simulations effectively.
The following diagram visualizes the workflow of a digital twin system, showcasing data ingestion, real-time synchronization, and operational utility:
flowchart TD
Sensors[Sensor Inputs & Logs] -->|Data Ingestion| Twin[Digital Twin]
Twin -->|Simulated Scenarios| Validation[Performance Validation]
Twin -->|Predictive Alerts| Analysis[Scenario Analysis]
Validation --> System[Physical Autopilot Updates]
Analysis --> Training[Training Scenarios]
%% Styling
style Sensors fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Twin fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Validation fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Analysis fill:#00274C,stroke:#FEC524,color:#FFFFFF
style System fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Training fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Objective: Ensure that all personnel involved in the operation and maintenance of the Ampel360XWLRGA Autopilot System are adequately trained and updated with the latest technologies, procedures, and regulations. Training will focus on innovation, predictive maintenance, and automation—fundamental pillars for efficiency and safety in modern aviation.
Autopilot Fundamentals:
- Principles of Operation:
- Understanding how the Autopilot System maintains flight path and stability.
- Integration with navigation and flight control systems.
- System Architecture:
- Overview of hardware and software components.
- Functional relationships between components.
- Operational Modes:
- AUTO, MANUAL, ALTITUDE HOLD, NAVIGATION TRACK, etc.
- Practical applications and scenarios for each mode.
Normal Operation:
- Activation Procedures:
- Steps to engage the Autopilot System.
- Verifying system status indicators.
- Configuration Settings:
- Inputting desired flight path parameters.
- Selecting operational modes based on flight phase.
- Monitoring Performance:
- Continuous monitoring of system indicators.
- Adjusting settings for optimal performance.
Abnormal and Emergency Procedures:
- System Malfunctions:
- Recognizing signs of autopilot failure (e.g., loss of control, erratic behavior).
- Manual Control Transition:
- Procedures for disengaging Autopilot and regaining manual control.
- Use of Quick Reference Handbook (QRH):
- Step-by-step instructions for addressing emergencies.
- Risk Mitigation:
- Strategies to manage and mitigate risks associated with system failures.
Recurrent Training:
- Annual Refreshers:
- Reinforcing knowledge and skills.
- System Updates:
- Training on new features, software updates, and modifications.
- Simulator Sessions:
- Practical exercises in handling complex scenarios and system failures.
System Theory and Description:
- In-Depth Understanding:
- Comprehensive study of Autopilot System components and their functions.
- Detailed examination of ATA Chapter 22.
- System Architecture:
- Analysis of hardware and software integration.
- Functional workflows and data flow diagrams.
Component-Specific Training:
- Flight Control Computers (FCC):
- Operation, diagnostics, calibration, and replacement.
- Servo Actuators:
- Maintenance, functionality testing, and replacement.
- Sensors:
- Types, calibration, verification, and replacement.
- Mode Control Panel (MCP):
- Operation, configuration, and fault diagnostics.
- Interfaces with Other Systems:
- Understanding interactions with FMS, IRS, Air Data System, etc.
Maintenance Procedures:
- Scheduled Tasks:
- Routine inspections, component replacements, system testing.
- Unscheduled Tasks:
- Emergency repairs, diagnostic procedures.
- Tools and Equipment:
- Proper use of specialized tools and testing equipment.
Troubleshooting:
- Diagnostic Methodologies:
- Systematic approaches using BITE and system logs.
- Error Code Interpretation:
- Understanding and addressing specific fault codes.
- Use of Manuals and Schematics:
- Leveraging troubleshooting guides and system diagrams.
Safety:
- Lockout/Tagout Procedures:
- Ensuring systems are safely isolated before maintenance.
- Personal Protective Equipment (PPE):
- Proper use of PPE to prevent accidents and injuries.
- Safe Handling of Components:
- Guidelines for handling sensitive and high-voltage components.
Advanced Software and Diagnostics:
- Diagnostic Software:
- Training on specific tools for system diagnostics and data analysis.
- Data Interpretation:
- Analyzing system performance data to identify trends and potential issues.
- Predictive Maintenance:
- Utilizing AI and machine learning to forecast maintenance needs and prevent failures.
Certification:
- Certification Program:
- Structured program for Autopilot System maintenance technicians.
- Levels of certification based on expertise and experience.
- Assessment and Testing:
- Practical and theoretical evaluations to ensure competency.
Recurrent Training:
- Periodic Updates:
- Training sessions on system updates, new procedures, and technological advancements.
- Continuous Learning:
- Encouraging ongoing education and skill enhancement.
- Classroom Instruction: Theoretical classes covering system fundamentals, applicable regulations, and maintenance procedures.
- Computer-Based Training (CBT): Interactive modules for self-paced learning, including assessments and simulations.
- Simulator Training: Use of flight simulators (for pilots) and maintenance simulators (for technicians) to practice normal and emergency procedures in a safe environment.
- On-the-Job Training (OJT): Practical learning under the supervision of experienced personnel.
- Virtual Reality (VR) and Augmented Reality (AR):
- VR: Complete simulations of maintenance procedures in a controlled environment.
- AR: Overlay digital information (diagrams, instructions) onto real equipment during maintenance tasks.
- Practical Workshops: Sessions where maintenance tasks can be performed on real components or system models.
- Maintain Detailed Records:
- Training modules completed.
- Dates of training.
- Assessment results.
- Certifications obtained.
- Learning Management System (LMS):
- Utilize LMS to track training progress and ensure compliance with requirements.
- Provide access to training materials and resources.
- Audit Trails:
- Ensure all training activities are recorded and easily accessible for audits and reviews.
- Promotion of a Safety Culture:
- Campaigns emphasizing the importance of adhering to procedures and reporting any autopilot system anomalies.
- Recognition of best practices in safety and maintenance.
- Technological Updates:
- Newsletters and webinars to keep personnel informed about the latest innovations and technologies related to the autopilot.
- Best Practices:
- Sharing success stories, lessons learned, and best practices among maintenance teams through an internal knowledge platform.
- Regulatory Compliance:
- Awareness campaigns highlighting the importance of complying with FAA, EASA, and other relevant authority regulations.
- Posters and Brochures: Visual materials highlighting key safety points and standard operating procedures.
- Newsletters: Periodic publications with system updates, maintenance tips, and relevant news.
- Training Videos: Short videos demonstrating maintenance procedures or explaining new components.
- Online Platform: Dedicated web portal for autopilot awareness, with access to manuals, videos, FAQs, and discussion forums.
- Surveys: Gather feedback from personnel on the effectiveness of awareness campaigns.
- Incident Analysis: Monitor for reductions in autopilot-related incidents following campaign implementation.
- Audits: Assess adherence to procedures and personnel understanding during regular audits.
Breakdown:
This section provides a comprehensive training and awareness framework, covering technical knowledge, safety, integration of new technologies, and aspects such as training methods, training records, and awareness campaigns.
Conclusion of Section 22.80
Training and awareness are fundamental pillars for the safe and efficient maintenance and operation of the Ampel360XWLRGA Autopilot System. A solid training program, combined with effective awareness campaigns, will ensure that all personnel are well-prepared to handle the complexities of this advanced system, contributing to the safety and reliability of flight operations. Investing in training and continuous personnel development is an investment in GAIA AIR's future.
Regular internal audits are conducted to ensure compliance with maintenance procedures, operational protocols, and safety standards. Audits help identify areas for improvement and verify the effectiveness of training programs.
Audit Objectives:
- Compliance Verification: Ensure all maintenance activities adhere to ATA Chapter 22 and regulatory standards.
- Procedure Adherence: Confirm that operational and maintenance procedures are followed correctly.
- Safety Compliance: Assess the implementation of safety protocols and measures.
- Performance Evaluation: Evaluate the efficiency and effectiveness of maintenance practices and training programs.
Audit Process:
- Planning:
- Define audit scope and objectives.
- Develop audit checklists based on standards and procedures.
- Execution:
- Conduct on-site inspections and interviews.
- Review maintenance records and documentation.
- Observe maintenance personnel during operations.
- Reporting:
- Compile audit findings and observations.
- Highlight areas of non-compliance and potential improvements.
- Follow-Up:
- Develop corrective action plans for identified issues.
- Monitor the implementation of corrective actions.
- Re-audit as necessary to ensure compliance.
Implement structured methodologies such as Kaizen, Six Sigma, or Total Quality Management (TQM) to systematically enhance training programs and maintenance procedures based on feedback and performance metrics.
Continuous Improvement Steps:
- Identify Opportunities:
- Collect data from audits, maintenance records, and personnel feedback.
- Analyze performance metrics to identify trends and areas for improvement.
- Analyze Root Causes:
- Use tools like Root Cause Analysis (RCA) and Fishbone Diagrams to determine underlying causes of issues.
- Develop Improvement Plans:
- Create actionable plans to address identified issues.
- Set measurable goals and objectives for improvement.
- Implement Changes:
- Execute the improvement plans with necessary resources and support.
- Update procedures, training materials, and documentation as needed.
- Evaluate Results:
- Monitor the impact of implemented changes on system performance and maintenance efficiency.
- Use feedback and performance data to assess the effectiveness of improvements.
- Standardize Successful Practices:
- Incorporate successful changes into standard operating procedures.
- Share best practices across teams to ensure widespread adoption.
- Review and Iterate:
- Continuously review processes to identify new improvement opportunities.
- Foster a culture of ongoing enhancement and excellence.
Tools and Techniques:
- Kaizen: Focus on small, incremental changes to improve efficiency and quality.
- Six Sigma: Utilize data-driven methodologies to reduce defects and variability.
- Total Quality Management (TQM): Integrate quality principles across all organizational processes.
- Lean Manufacturing: Eliminate waste and optimize processes for maximum efficiency.
Benefits of Continuous Improvement:
- Enhanced Efficiency: Streamlined maintenance processes reduce downtime and operational costs.
- Improved Quality: Higher standards of maintenance and operation lead to more reliable system performance.
- Increased Safety: Proactive identification and mitigation of risks enhance overall flight safety.
- Employee Engagement: Involving personnel in improvement initiatives fosters a sense of ownership and motivation.
Employ quantum cybersecurity to protect the Autopilot System from advanced digital threats, ensuring the security and integrity of critical data streams.
As data-driven avionics become integral to modern aircraft, sophisticated cyber threats demand equally advanced security measures. By adopting post-quantum cryptography and quantum-resistant protocols, the Autopilot System achieves resilience against emerging cyberattack vectors.
- Quantum Key Distribution (QKD):
Use quantum mechanics to establish secure encryption keys that can detect interception attempts. - Post-Quantum Algorithms:
Adopt cryptographic methods designed to withstand decryption by quantum computers, ensuring long-term security.
- End-to-End Security:
Encrypt in-flight data streams with quantum-safe layers, preserving confidentiality throughout data transmission. - Firmware Validation:
Authenticate firmware updates with quantum-secure digital signatures, preventing unauthorized or malicious modifications.
- Quantum-Enhanced Monitoring:
Deploy algorithms capable of nuanced and rapid threat detection within avionics and Autopilot data streams. - Adaptive Policies:
Dynamically update security rules based on evolving threat environments, ensuring a proactive defense.
- Longevity:
Quantum-resistant measures provide enduring protection against classical and emerging quantum computational risks. - Regulatory Compliance:
Aligns with anticipated quantum-safe aviation standards, ensuring future-proof compliance. - Operational Confidence:
Safeguards flight-critical systems, reducing risks of data breaches or system manipulation.
- System Overhead:
Incorporating quantum security may require additional computational resources and potential hardware upgrades. - Stakeholder Coordination:
Foster collaboration with OEMs, cryptographic experts, and regulatory bodies to standardize and align security measures. - Maintenance Staff Training:
Train teams to understand quantum security protocols, enabling effective monitoring, deployment, and troubleshooting.
Objective:
Safeguard the Autopilot System and cabin network against digital threats, ensuring secure data flows and system integrity during flight operations.
Key Components:
- Cabin Firewall Segregation:
Protects critical systems by isolating passenger-accessible networks from operational avionics. - Quantum-Enhanced Encryption:
Utilizes advanced cryptographic protocols to secure communication between system nodes, mitigating risks of interception. - Incident Response:
Real-time alerts and automated response protocols coordinate mitigation efforts across the Security Operations Center (SOC) and maintenance teams.

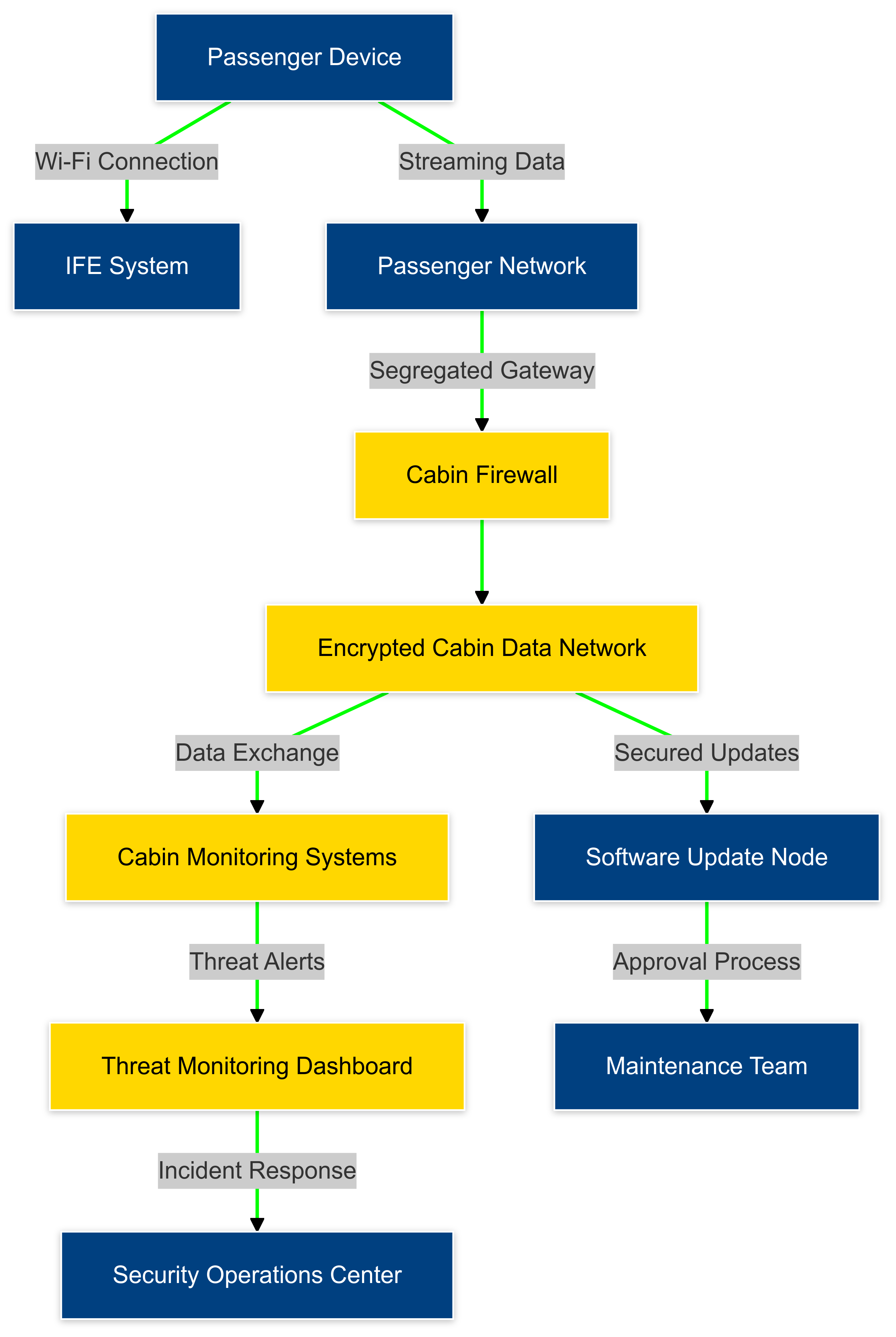

Visual Aid:
Passenger Device Interaction with Cabin Firewall and Encrypted Data Systems
Description:
This diagram illustrates secure data flow within the cabin network of the GAIA AIR – Ampel360XWLRGA Aircraft, showcasing:
- Passenger Device Connectivity: Devices connect via Wi-Fi to the In-Flight Entertainment (IFE) System.
- Gateway Protection: A segregated gateway filters and isolates passenger network data before entering the cabin firewall.
- Encrypted Cabin Data Network: Ensures operational systems are secure from passenger device interactions.
- Threat Monitoring: Real-time alerts enable swift detection and mitigation of potential breaches.
- Incident Response Coordination: Links with the Security Operations Center (SOC) and Maintenance Team ensure robust issue resolution.
Key Benefits:
- Protects sensitive operational data and systems.
- Aligns with DO-326A and emerging quantum cybersecurity standards.
- Ensures uninterrupted Autopilot and avionics performance.
The following diagram illustrates the key components of quantum cybersecurity within the Autopilot System:
flowchart TD
DataStream[In-Flight Data Streams] -->|Encryption| QKD[Quantum Key Distribution]
Firmware[Firmware Updates] -->|Validation| PostQuantum[Post-Quantum Algorithms]
QKD -->|Secures| Communication[Secure Communication Channels]
PostQuantum -->|Protects| Monitoring[Quantum-Enhanced Threat Monitoring]
Monitoring -->|Detects Anomalies| Adaptive[Adaptive Security Policies]
Adaptive --> System[Autopilot System Protection]
%% Styling
style DataStream fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Firmware fill:#00274C,stroke:#FEC524,color:#FFFFFF
style QKD fill:#00274C,stroke:#FEC524,color:#FFFFFF
style PostQuantum fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Communication fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Monitoring fill:#00274C,stroke:#FEC524,color:#FFFFFF
style Adaptive fill:#00274C,stroke:#FEC524,color:#FFFFFF
style System fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Integrate sustainability metrics and circular economy principles into the Autopilot System, aiming to reduce environmental impact while maintaining optimal performance.
In line with global aviation goals to minimize emissions, waste, and resource consumption, GAIA AIR’s Autopilot System embeds sustainability-focused technologies. This approach ensures environmental stewardship while preserving safety and efficiency.
- AI-Driven Routing:
Leverage real-time traffic, weather, and operational data to minimize fuel burn. - Reduced Idling:
Employ Autopilot optimizations to limit idle thrust during ground operations. - Continuous Descent Approaches (CDA):
Smooth altitude transitions reduce noise pollution and fuel consumption.
- Recyclable Components:
Use materials that can be easily recycled or repurposed, reducing end-of-life waste. - Modular Upgrades:
Extend the system's lifecycle by replacing specific sub-modules rather than entire assemblies.
- Real-Time Monitoring:
Track emissions and resource usage to generate actionable insights for ongoing improvements. - Reporting & Compliance:
Meet stringent environmental standards with comprehensive audits and certifications.
- Lower Operating Costs:
Enhanced fuel efficiency leads to significant financial savings over time. - Enhanced Brand Reputation:
Demonstrates GAIA AIR’s commitment to eco-responsible aviation technologies. - Regulatory Readiness:
Prepares the Autopilot System to comply with stricter global environmental mandates.
- Performance Balances:
Ensure sustainability measures maintain operational safety and reliability. - Stakeholder Engagement:
Collaborate with suppliers, regulators, and customers to align sustainability goals. - Continuous Evaluation:
Periodically review and adapt sustainability metrics to reflect advancements in technology and changing regulations.
The diagram below illustrates the sustainability strategies integrated into the Autopilot System:
flowchart LR
A[Autopilot System] -->|AI-Driven Routing| B[Fuel Efficiency]
A -->|Reduced Idling| C[Lower Emissions]
A -->|Continuous Descent Approaches| D[Noise Reduction]
A -->|Material Selection| E[Recyclable Components]
A -->|Modular Design| F[Longer Lifecycle]
A -->|Real-Time Monitoring| G[Emission Reporting]
G -->|Compliance| H[Regulatory Standards]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
style E fill:#00274C,stroke:#FEC524,color:#FFFFFF
style F fill:#00274C,stroke:#FEC524,color:#FFFFFF
style G fill:#00274C,stroke:#FEC524,color:#FFFFFF
style H fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Provide AI-driven, pilot-centric Human-Machine Interfaces (HMIs) to simplify Autopilot management, aligning with design requirements FR161 (User-Friendly) and FR245 (Enhanced Accessibility).
Pilot-focused interface designs reduce cognitive load, enhance situational awareness, and improve flight safety. The integration of AI ensures the HMI dynamically adapts to real-time flight conditions and pilot preferences, offering intuitive control paths and proactive alerts.
- Simplicity & Clarity:
- Present essential data succinctly, ensuring warnings and critical metrics are easily distinguishable.
- Adaptive Layouts:
- Rearrange displayed information based on flight phases (e.g., takeoff, cruise, approach) to highlight relevant metrics.
- Accessibility:
- Support multilingual text, colorblind-friendly palettes, and alternative input modes (voice, touch, etc.).
- Predictive Inputs:
- Suggest optimal autopilot settings based on flight conditions and historical data.
- Voice Interaction:
- Allow pilots to make adjustments using natural language commands, reducing manual workload.
- Contextual Assistance:
- Offer tooltips or tutorials when usage patterns suggest potential confusion or inefficiency.
- Active Alerts & Guidance:
- Generate real-time warnings and recommendations (e.g., minor heading adjustments to avoid weather).
- Feedback Loop:
- Continuously refine interface responsiveness using pilot feedback and post-flight analysis.
- FR161 (User-Friendly):
- Streamline workflows to minimize error-prone steps or overly complex navigation.
- FR245 (Enhanced Accessibility):
- Ensure inclusive design for pilots with diverse operational needs, maintaining universal access.
- Prototype & Testing:
- Develop interface prototypes, validate them in flight simulators, and gather pilot feedback through iterative testing cycles.
- System Integration:
- Embed AI modules into the Autopilot architecture, ensuring seamless data exchange and stable performance.
- Pilot Training:
- Provide comprehensive training sessions to familiarize pilots with new HMI features, including voice commands and adaptive layouts.
- Reduced Cognitive Load:
- Simplified workflows allow pilots to focus on broader flight parameters.
- Accelerated Responses:
- AI-driven prompts and voice commands enable quicker decision-making in dynamic environments.
- User Satisfaction:
- Adaptive, user-friendly interfaces build trust and acceptance among pilots.
The following diagram visualizes the integration and evolution of AI-based HMIs in the Autopilot System:
graph TB
A[Traditional HMI] -->|Static Data| B[AI-Driven HMI]
B -->|Predictive Feedback| C[Quantum-Based HMI]
C -->|Real-Time Adaptation| D[Pilot Insights & Proactive Alerts]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Demonstrate explicit connections between the Autopilot System and other pivotal aircraft systems, reinforcing a cohesive avionics ecosystem.
-
Data Flows:
- Ensure seamless display of autopilot data, including fuel optimization modes and route deviations, on cockpit instruments.
- Provide pilots with integrated views of quantum optimization statuses and maintenance alerts for real-time decision-making.
-
Display Protocols:
- Standardize cockpit display elements to accommodate Autopilot commands, warnings, and performance metrics.
-
Instrument-Integration Schematic:
- Illustrate how Autopilot commands and alerts are visually and functionally incorporated into instrumentation interfaces.
-
Real-Time Synchronization:
- Showcase feedback loops between ATA 31 sensors and Autopilot calculations, ensuring synchronized and precise performance.
-
Navigation Data Feeds:
- Demonstrate how the Autopilot System uses waypoints, terrain data, and GPS/INS signals to optimize route planning and execution.
-
Quantum-Enhanced Optimization:
- Leverage quantum algorithms to process large-scale navigational datasets, enabling highly accurate and efficient route adjustments.
-
Collaboration Maps:
- Depict the interplay between Autopilot logic and key navigational inputs, such as altitude, velocity, and wind data.
-
Fail-Safe Coordination:
- Define fallback procedures to ensure operational continuity in case of ATA 34 data feed disruptions.
The following diagram illustrates the Autopilot System's interaction with ATA 31 (Instruments) and ATA 34 (Navigation):
flowchart LR
A[Autopilot System] -->|Data Feeds| B[ATA 31 Instruments]
A -->|Route Data| C[ATA 34 Navigation]
B -->|Display Info| D[Flight Deck Display]
C -->|Navigation Signals| D
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Clarify how OEMs, airlines, and regulators collaborate in line with GQP’s iterative ethos to refine and deploy Autopilot capabilities, ensuring alignment with industry standards, operational requirements, and emerging technologies.
-
Avionics Compatibility:
- Ensure Autopilot updates align seamlessly with the overarching avionics roadmap, maintaining interoperability across systems.
-
Data Interface Standards:
- Collaborate on shared protocols to standardize data communication, enabling smooth integration of hardware and software.
-
Real-World Insights:
- Airlines supply critical operational data, including flight schedules, maintenance logs, and real-time pilot feedback, to enhance predictive maintenance models (see §22.53.1).
-
Use Case Validation:
- Pilot feedback on AI-driven HMIs (see §22.95) helps refine interface usability, ensuring designs cater to diverse operational needs.
-
Compliance and Standards Evolution:
- Maintain active engagement with regulators to align Autopilot capabilities with quantum security mandates (see §22.93) and aviation regulations.
-
Iterative Feedback Loop:
- Use insights from certification audits to guide ongoing refinements and ensure compliance with evolving standards.
-
Interdisciplinary Collaboration:
- Form teams comprising quantum specialists, maintenance engineers, flight operations experts, and regulators to address diverse system needs.
-
Shared Decision-Making:
- Develop consensus on design choices, training methodologies, and criteria for the acceptance of new features, including quantum-enhanced modules.
-
Transparency:
- Operate under GAIA QUANTUM, PORTAL (GQP) principles, ensuring transparent knowledge sharing and consistent alignment with organizational goals.
-
Stakeholder Alignment:
- Balance input from all stakeholders to support iterative improvements and long-term system integration.
The following diagram illustrates the interplay between OEMs, airlines, and regulatory authorities in the Autopilot lifecycle:
flowchart LR
A[OEMs] -->|Avionics Updates & Standards| B[Autopilot System]
B -->|Operational Data| C[Airlines]
C -->|Feedback| B
B -->|Compliance Audits| D[Regulatory Authorities]
D -->|Standards & Approvals| B
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Showcase the Autopilot System’s modular, adaptive design—ready to serve large commercial jets, UAVs, and next-generation aircraft, while maintaining compliance with diverse operational requirements and global standards.
-
High-Throughput Analytics:
- Leverage quantum algorithms to handle complex route planning and operational data for large fleets with heavy passenger volumes.
-
Complex Predictive Maintenance:
- Use AI-driven models to minimize downtime by predicting maintenance needs across high-frequency flight operations.
-
Lightweight Footprints:
- Optimize the Autopilot System for minimal size, weight, and power (SWaP) constraints, critical for UAV deployments.
-
Autonomous Missions:
- Integrate digital twin technology (see §22.73.1) for real-time mission simulations and route optimization in fully autonomous operations.
-
Modular Power Management:
- Seamlessly integrate with innovative propulsion systems, maintaining flight stability and efficient resource use across hybrid-electric platforms.
-
Environmental Targets:
- Align system operations with sustainability goals (see §22.94) by managing emissions and balancing battery/fuel usage.
graph TD
A[Core Autopilot System] --> B[Commercial Jets]
A --> C[Unmanned Aerial Vehicles UAVs]
A --> D[Hybrid-Electric Aircraft]
B --> E[High-Throughput Analytics]
C --> F[Lightweight Footprints]
D --> G[Modular Power Management]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
style E fill:#00274C,stroke:#FEC524,color:#FFFFFF
style F fill:#00274C,stroke:#FEC524,color:#FFFFFF
style G fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
-
Interface Localization:
- Support multiple language packs to ensure ease of use for pilots worldwide.
-
Regulatory Diversity:
- Customize labeling and HMI configurations to comply with EASA, FAA, or other regional aviation authorities.
-
Unified Compliance Matrix:
- Maintain a centralized framework to track varying global standards and ensure consistent regulatory adherence.
-
Scalable Security:
- Guarantee compatibility with quantum cybersecurity protocols (see §22.93) across diverse regulatory regimes.
-
Universal Data Buses:
- Use standardized communication protocols (ARINC 429, AFDX, etc.) for seamless integration across different aircraft architectures.
-
Upgrade Pathways:
- Design modular systems to allow incremental updates for advanced propulsion technologies or extended operational ranges, avoiding full-system replacements.
flowchart LR
A[Global Fleet Compatibility] -->|Localization| B[Multi-Lingual HMI]
A -->|Compliance Tracking| C[Cross-Market Certification]
A -->|Standardized Design| D[Platform-Agnostic Modules]
B -->|Tailored UI| E[Localized Interfaces]
C -->|Regulatory Adherence| F[Quantum Cybersecurity]
D -->|Incremental Updates| G[Upgrade Pathways]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
style E fill:#00274C,stroke:#FEC524,color:#FFFFFF
style F fill:#00274C,stroke:#FEC524,color:#FFFFFF
style G fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
To fully realize the benefits described in preceding sections, the following refinements address visualization, training, metrics, and expanded ecosystem integration. These steps ensure a seamless transition from design to operational excellence while fostering collaboration and stakeholder alignment.
- ATA Linkages: Highlight intersections between Autopilot data, ATA 31 (Instruments), and ATA 34 (Navigation).
- Quantum & AI Modules: Illustrate internal data flows for predictive maintenance, quantum routing, and HMI logic.
- Platform Overviews: Depict modular component adaptability for UAVs, commercial jets, and hybrid-electric platforms.
- Upgrade Path Timelines: Outline phases for incremental expansions to support emerging aircraft technologies.
flowchart TD
A[Visualization Tools] -->|Data Representation| B[Data Flow Diagrams]
A -->|Adaptation Visualization| C[Scalability Charts]
B --> D[ATA 31 & 34 Intersections]
B --> E[Quantum & AI Modules]
C --> F[Platform Overviews]
C --> G[Upgrade Path Timelines]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
style E fill:#00274C,stroke:#FEC524,color:#FFFFFF
style F fill:#00274C,stroke:#FEC524,color:#FFFFFF
style G fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
-
Quantum Features:
- Emphasize quantum cybersecurity (see §22.93) and quantum analytics in predictive maintenance (see §22.53.1).
-
AI-Driven HMIs (22.95):
- Conduct simulator sessions and provide interactive tutorials for mastering advanced interface features.
-
Phased Adoption:
- Gradually introduce new functionalities, ensuring stable transitions and minimal disruptions.
-
Stakeholder Communication:
- Regularly update airlines, OEMs, and regulators on milestones and adoption progress.
- Key KPIs: Track Mean Time Between Failures (MTBF), false alert rates, and actual vs. predicted component lifespans.
- Data-Driven Dashboards: Integrate metrics into the CMMS for real-time tracking and actionable insights.
- Flight Efficiency Metrics: Measure fuel savings and CO₂ reductions post-implementation of optimized routing algorithms.
- Sustainability Index: Aggregate metrics to evaluate adherence to circular economy principles (see §22.94).
- AI HMI Usage Rates: Monitor the frequency of advanced interface usage in live operations.
- Pilot Feedback Surveys: Collect pilot feedback to assess satisfaction and ease of use.
flowchart LR
A[Metrics for Success] -->|Performance| B[Predictive Maintenance Accuracy]
A -->|Sustainability| C[Emission Reductions]
A -->|User Engagement| D[Adoption & Satisfaction]
B --> E[Key KPIs]
C --> F[Fuel Savings & CO₂ Cuts]
D --> G[Feedback Surveys]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
style E fill:#00274C,stroke:#FEC524,color:#FFFFFF
style F fill:#00274C,stroke:#FEC524,color:#FFFFFF
style G fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
-
Air Traffic Control (ATC):
- Enable real-time synchronization with ATC advisories for enhanced flight path optimization.
-
Ground Operations & Weather Forecasting:
- Utilize predictive analytics augmented by ground-based data and advanced meteorological feeds.
-
Open Data Exchanges:
- Collaborate with third-party services and GAIA AIR systems to share relevant datasets.
-
Future Partnerships:
- Build alliances with technology providers specializing in AI, quantum computing, and sustainable aviation R&D.
flowchart TD
A[Ecosystem Synergy] -->|Integration| B[External Systems]
A -->|Collaboration| C[Industry Platforms]
B --> D[Air Traffic Control]
B --> E[Weather Forecasting]
C --> F[Open Data Exchanges]
C --> G[Future Partnerships]
%% Styling
style A fill:#00274C,stroke:#FEC524,color:#FFFFFF
style B fill:#00274C,stroke:#FEC524,color:#FFFFFF
style C fill:#00274C,stroke:#FEC524,color:#FFFFFF
style D fill:#00274C,stroke:#FEC524,color:#FFFFFF
style E fill:#00274C,stroke:#FEC524,color:#FFFFFF
style F fill:#00274C,stroke:#FEC524,color:#FFFFFF
style G fill:#00274C,stroke:#FEC524,color:#FFFFFF
linkStyle default stroke:#00509E,stroke-width:2px
Design maintenance workspaces and procedures to reduce physical strain and enhance efficiency, ensuring that maintenance personnel can perform tasks comfortably and safely.
Ergonomic Considerations:
-
Workspace Design:
- Adjustable workbenches to accommodate different tasks and personnel heights.
- Proper lighting to reduce eye strain and improve visibility.
- Organized tool storage to minimize movement and reach.
-
Tool Design:
- Use of ergonomic tools to reduce hand and wrist strain.
- Proper labeling and storage of tools for easy access.
-
Task Design:
- Simplify complex tasks to reduce cognitive load.
- Provide clear instructions and visual aids to guide maintenance personnel.
-
Personal Protective Equipment (PPE):
- Comfortable and appropriately sized PPE to prevent fatigue and discomfort.
Benefits:
- Reduced Physical Strain: Enhances the well-being of maintenance personnel.
- Increased Efficiency: Streamlined workspaces and tools improve task performance speed and accuracy.
- Enhanced Safety: Ergonomic designs reduce the risk of accidents and injuries during maintenance operations.
Implement strategies such as standardized procedures, checklists, and error-proofing techniques to minimize the likelihood of human errors during autopilot operations and maintenance.
Error Reduction Strategies:
-
Standardized Procedures:
- Develop and enforce standardized operating and maintenance procedures.
- Ensure all personnel are trained on these procedures.
-
Checklists:
- Utilize detailed checklists for maintenance tasks to ensure all steps are completed.
- Implement pilot checklists for operating the Autopilot System.
-
Error-Proofing (Poka-Yoke):
- Design systems and procedures to prevent errors, such as connectors that only fit in the correct orientation.
- Use automated alerts and warnings for potential mistakes.
-
Training and Education:
- Provide comprehensive training on common error types and prevention methods.
- Encourage a culture of attention to detail and accountability.
-
Feedback Mechanisms:
- Establish systems for reporting and analyzing errors to identify patterns and implement corrective actions.
Benefits:
- Enhanced Safety: Reducing errors directly contributes to safer flight operations.
- Improved Reliability: Minimizing human errors increases the reliability of the Autopilot System.
- Operational Efficiency: Reducing errors leads to fewer maintenance issues and smoother operations.
Design intuitive and user-friendly interfaces that facilitate easy interaction between humans and the Autopilot System, enhancing usability and reducing the potential for operational mistakes.
Design Principles:
- Clarity: Information displayed should be clear, unambiguous, and easily understood by pilots and maintenance personnel.
- Consistency: Use consistent terminology, symbols, and layouts across all HMI interfaces.
- Simplicity: Avoid unnecessary complexity; present information in a straightforward and uncluttered manner.
- Visibility of System Status: Provide continuous feedback on the current status of the Autopilot System and its components.
- Error Prevention: Design interfaces to minimize the possibility of errors, such as confirmation prompts for critical actions.
- Accessibility: Ensure that HMIs are accessible to individuals with disabilities, adhering to relevant accessibility standards.
- User-Centered Design: Involve pilots and maintenance personnel in the design process to ensure the interface meets their needs and expectations.
- Compliance with Standards: Follow relevant human factors design standards and guidelines (e.g., FAA Human Factors Design Standard, MIL-STD-1472).
Flight Deck HMI (For Pilots):
- Integration with EICAS/ECAM: Autopilot status and controls should be integrated into the Engine Indication and Crew Alerting System (EICAS) or Electronic Centralized Aircraft Monitor (ECAM).
- Intuitive Controls: Use rotary knobs, push buttons, and touchscreen controls that are logically positioned and labeled.
- Clear Displays: Provide clear displays of key autopilot parameters such as:
- Cabin temperature (set point and actual)
- Cabin altitude
- Cabin pressure differential
- Autopilot mode (AUTO, MANUAL)
- System status indicators (e.g., PACK 1 ON, PACK 2 ON)
- Fault indications and warnings
- Automated Alerts: Configure the system to automatically alert the flight crew to any autopilot anomalies or malfunctions.
- Color Coding: Use color-coding to indicate system status (e.g., green for normal, amber for caution, red for warning).
Maintenance HMI (For Technicians):
- Diagnostic Interface: Provide a dedicated interface for maintenance personnel to access detailed system data, run diagnostics, and perform maintenance tasks. This could be a laptop-based interface or a dedicated panel in the avionics bay.
- Data Logging: The HMI should allow technicians to access historical data logs for troubleshooting and trend analysis.
- Component Control: Provide controls for manually operating individual autopilot components (e.g., valves, actuators) for testing and troubleshooting.
- Calibration and Configuration: Allow technicians to calibrate sensors and configure system parameters as needed.
- Security: Implement appropriate security measures (e.g., password protection) to prevent unauthorized access to the maintenance HMI.
HMI Design Process:
- Requirements Gathering: Define the specific information and control needs of both pilots and maintenance personnel.
- Prototyping: Develop prototypes of the HMI and test them with representative users.
- Usability Testing: Conduct formal usability tests to evaluate the effectiveness and efficiency of the HMI.
- Iterative Refinement: Iteratively refine the HMI design based on user feedback and test results.
- Validation and Verification: Ensure the final HMI design meets all requirements and complies with relevant standards.
Example HMI Design Considerations:
- Touchscreen vs. Physical Controls: For the flight deck, consider a combination of touchscreen and physical controls. Touchscreens offer flexibility, but physical controls may be preferred for critical functions to provide tactile feedback.
- Display Brightness and Contrast: Ensure displays are easily readable under all lighting conditions, including bright sunlight and darkness.
- Font Size and Style: Use fonts that are large enough and easy to read, even from a distance or under stress.
- Menu Structure: Design a logical and intuitive menu structure that allows users to quickly find the information or controls they need.
- Language: Provide multilingual support if necessary.
Breakdown:
This section ensures that the HMI is designed with the user in mind, enhancing interaction efficiency and reducing the potential for errors through thoughtful design and adherence to human factors principles.
Case Study: AirTech Airlines
Background:
AirTech Airlines implemented a comprehensive Autopilot Maintenance Program for their fleet of A320 aircraft. The program was designed to enhance system reliability, reduce downtime, and ensure compliance with regulatory standards.
Implementation Steps:
-
Assessment of Existing Practices:
- Conducted a thorough review of current maintenance procedures.
- Identified gaps and areas for improvement.
-
Development of Standardized Procedures:
- Created detailed maintenance checklists aligned with ATA Chapter 22.
- Implemented preventive maintenance schedules.
-
Training Programs:
- Developed training modules for maintenance personnel.
- Conducted simulator-based training sessions.
-
Integration with CMMS:
- Integrated maintenance schedules and records with the existing CMMS.
- Enabled automated work order generation based on system alerts.
-
Continuous Monitoring and Feedback:
- Established a feedback loop for continuous improvement.
- Regularly reviewed maintenance data and audit findings.
Results:
- Increased Reliability: Significant reduction in autopilot-related malfunctions.
- Reduced Downtime: Maintenance operations became more efficient, minimizing aircraft downtime.
- Enhanced Compliance: Achieved full compliance with EASA and FAA regulations.
- Improved Safety: Enhanced safety measures and timely issue resolution contributed to overall flight safety.
Case Study: SkyPilot Technologies
Background:
SkyPilot Technologies integrated advanced AI and machine learning algorithms into their Autopilot Systems for the latest generation of business jets. The goal was to enhance system efficiency, predict potential failures, and improve overall reliability.
Technological Advancements:
-
Artificial Intelligence (AI):
- Implemented AI algorithms to optimize flight path adjustments in real-time.
- Enhanced decision-making capabilities for handling complex flight scenarios.
-
Predictive Maintenance:
- Utilized machine learning to analyze maintenance data and predict component failures before they occur.
- Enabled proactive maintenance scheduling, reducing unexpected downtimes.
-
Digital Twins:
- Developed digital twins of the Autopilot System to simulate performance and conduct virtual testing.
- Facilitated real-time monitoring and anomaly detection.
-
Enhanced Sensors:
- Upgraded sensors for more accurate data collection and system responsiveness.
- Improved integration with other avionics systems for seamless data exchange.
Results:
- Enhanced Efficiency: AI-driven optimizations led to more fuel-efficient flight operations.
- Improved Reliability: Predictive maintenance reduced the frequency of system failures.
- Proactive Issue Resolution: Digital twins enabled early detection and resolution of potential issues.
- Operational Flexibility: Enhanced sensors provided more accurate and timely data, allowing for better system adjustments.
Conclusion:
Technological advancements such as AI, predictive maintenance, and digital twins significantly enhance the efficiency and reliability of Autopilot Systems. These innovations contribute to safer, more efficient flight operations and provide maintenance teams with powerful tools for system management.
Emerging Technologies:
-
Enhanced AI Capabilities:
- AI-driven decision-making for dynamic flight path adjustments.
- Machine learning algorithms that adapt to different flight conditions and optimize performance.
-
Improved Sensor Integration:
- Use of high-precision sensors for better data accuracy.
- Integration with IoT devices for real-time data collection and system monitoring.
-
Advanced Navigation Algorithms:
- Development of algorithms that improve navigation accuracy and reliability.
- Enhanced route optimization for fuel efficiency and time savings.
-
Autonomous Operations:
- Moving towards fully autonomous flight operations with minimal human intervention.
- Incorporating autonomous decision-making in emergency scenarios.
Impact on Autopilot Systems:
- Increased Efficiency: Advanced technologies enable more precise control and optimization of flight parameters.
- Enhanced Safety: Improved data accuracy and autonomous capabilities reduce the risk of human error.
- Greater Reliability: AI and machine learning contribute to more resilient and adaptable systems.
Certainly! Below is the translated 22.121.4 Integration of Enhancements for Autonomous Flight section. This translation maintains the original structure, formatting, and technical terminology to ensure clarity and consistency with the ATA 22 standard.
Okay, here's a fully integrated version of Section 22.121.4, "Integration of Enhancements for Autonomous Flight," incorporating the expansions and specialist input we discussed. I've also added more context and details to make it a standalone, comprehensive section.
22.121.4 Integration of Enhancements for Autonomous Flight
1. Scope and Objective
This section outlines the strategy and procedures for integrating new components, algorithms, and functionalities aimed at achieving enhanced autonomous flight capabilities in aircraft equipped with GAIA AIR's Autopilot systems, specifically the Ampel360XWLRGA model. The integration focuses on a modular architecture that builds upon existing systems to minimize disruption while maximizing capability upgrades.
Objectives:
- Consolidate Automated Decision-Making: Integrate advanced AI and, optionally, quantum computing algorithms to enhance automated decision-making across various flight scenarios, including cruise, approach, and contingencies. This consolidation aims to streamline the autopilot's response to diverse operational conditions.
- Optimize Sensor Usage and Data Fusion: Improve the utilization of onboard sensors and data fusion techniques to create a more accurate and reliable understanding of the aircraft's environment, thereby reducing reliance on human intervention.
- Ensure Interoperability with ATC and Airspace Management: Guarantee seamless integration with current and future Air Traffic Control (ATC) systems and other airspace management systems to maintain safety and compliance in increasingly complex airspace environments.
- Compliance with FAA/EASA Regulations: Ensure that all autonomous enhancements are developed and implemented in accordance with current and evolving FAA and EASA regulations. (See Appendix A for detailed regulatory references and compliance steps).
2. Integration Structure
The integration of autonomous flight improvements is based on a modular architecture, allowing for flexibility and scalability. Each module represents a specific functional area that enhances the Autopilot's capabilities:
a. Sensors and Data Fusion Module:
- Functionality: This module is responsible for collecting real-time data from various onboard sensors, including but not limited to:
- Engine performance sensors (temperature, pressure, RPM)
- Navigation sensors (GPS, IMU, altimeter)
- Air data sensors (airspeed, altitude, angle of attack)
- Weather sensors (radar, lidar, weather data link)
- Vision systems (cameras for object detection and avoidance)
- Data Fusion: The module employs advanced data fusion algorithms, such as:
- Extended Kalman Filters (EKF): To estimate the aircraft's state by combining data from multiple sensors, taking into account their uncertainties.
- Neural Networks: To process complex sensor data, identify patterns, and enhance the accuracy of environmental perception.
- Output: Provides a unified and reliable representation of the aircraft's state and its surrounding environment.
b. Analysis and Decision Module (AI / Quantum):
- AI Sub-Module:
- Functionality: Employs deep learning models for anomaly detection, trajectory prediction, and intelligent decision-making.
- Anomaly Detection: Identifies deviations from normal operating parameters or unexpected events (e.g., system malfunctions, unusual weather patterns). (Refer to §22.190.2 Contingency Management for detailed procedures).
- Trajectory Prediction: Predicts the future state of the aircraft and its environment based on current data and learned patterns.
- Decision-Making: Makes autonomous decisions regarding flight path adjustments, speed control, and other operational parameters based on the analysis of fused sensor data and predicted scenarios.
- Quantum Computing Sub-Module (Optional):
- Functionality: Leverages quantum optimization algorithms to explore a vast solution space for complex problems, such as route planning and resource allocation.
- Route Optimization: Calculates optimal flight paths considering multiple variables (e.g., weather, air traffic, fuel efficiency, restricted airspaces) in a significantly reduced timeframe compared to classical methods.
- Resource Allocation: Optimizes the allocation of resources (e.g., fuel, crew, maintenance schedules) under various constraints.
- Note: The Quantum Computing Sub-Module is considered optional and may be implemented as technology matures and becomes more readily available.
c. Execution / Robotics Module:
- Functionality: This module translates the decisions made by the Analysis and Decision Module into physical actions.
- Control Surface Management: Controls the aircraft's flight surfaces (ailerons, rudder, elevators, flaps) to adjust attitude, altitude, and direction.
- Engine Thrust Control: Manages engine thrust to control airspeed and achieve desired performance.
- Redundancy: Implements redundant servo-control strategies to ensure continued operation in case of component failures. This includes backup actuators and control mechanisms.
d. Interface and Communication Module (ATC / Crew):
- ATC Integration:
- Automated Communication: Establishes two-way communication with ATC systems to receive clearances, instructions, and traffic advisories.
- Flight Plan Adjustments: Automatically adjusts the flight plan based on ATC instructions or automated ATM (Air Traffic Management) system updates.
- Compliance Monitoring: Continuously monitors the flight profile to ensure compliance with ATC clearances and airspace regulations (e.g., separation minima, assigned altitudes, route adherence).
- Pilot Interface:
- Supervisory Control: Provides a supervisory channel for the flight crew to monitor the autonomous system's status, decisions, and actions.
- Intervention Capability: Allows the crew to intervene and override the autonomous system if necessary. This includes manual control inputs and the ability to disengage the autopilot.
- Multi-Modal Interaction: Supports various interaction modalities, including:
- Voice Control: Allows pilots to issue commands and queries using voice.
- Augmented Reality (AR) Overlays: Provides pilots with real-time visual information about the autonomous system's status and the surrounding environment (e.g., planned flight path, potential hazards). (See §22.95 for detailed HMI design specifications).
- Alerts and Notifications: Provides clear and timely alerts and notifications to the crew regarding system status, anomalies, and decision rationale.
3. Implementation Process (General Pseudocode)
# Pseudocode: Integration of Enhancements for Autonomous Flight
function AutonomousEnhancementIntegration(flight_data, sensor_stream, atc_inputs):
# 1. Sensor Fusion
fused_data = sensor_fusion_engine(sensor_stream)
# Combines data from multiple sensors using algorithms like Extended Kalman Filters or Neural Networks
# 2. AI/Quantum Analysis
optimized_plan = quantum_ai_optimizer(fused_data, flight_data)
# Employs AI for anomaly detection and decision-making. Optionally uses Quantum Computing for optimization.
# 3. Constraint Validation
if violates_constraints(optimized_plan, atc_inputs):
# Checks if the optimized plan complies with ATC instructions, airspace regulations, and safety parameters.
re_optimize_with_constraints(optimized_plan, atc_inputs)
# Re-optimizes the plan, taking into account the violated constraints.
# 4. Command Execution
flight_commands = generate_flight_commands(optimized_plan)
# Generates specific commands for control surfaces and engines based on the optimized plan.
autopilot.execute_commands(flight_commands)
# Executes the commands through the autopilot system, adjusting the aircraft's flight path and performance.
# 5. State Monitoring
anomaly_score = run_anomaly_detection(fused_data)
# Continuously monitors fused sensor data for anomalies using AI-based detection algorithms.
if anomaly_score > threshold:
# If an anomaly is detected (score exceeds a predefined threshold):
handle_contingency() # Executes contingency procedures, which may involve fallback to a pre-planned route, alerting the pilot, or initiating an emergency landing.
# 6. Interface Feedback
update_pilot_interface(autopilot.status)
# Updates the pilot interface (e.g., cockpit displays, AR overlays) with the current status of the autopilot and its decisions.
send_compliance_ack(atc_inputs)
# Sends acknowledgments to ATC, confirming receipt and compliance with instructions.
# 7. Advanced Logging for Digital Twin
log_ai_iteration(fused_data, optimized_plan, flight_commands, anomaly_score)
# Logs detailed data from each AI iteration for post-flight analysis and model refinement.
# 8. Digital Twin Synchronization
digital_twin.update(fused_data, flight_commands)
# Updates the Digital Twin with real-time data to maintain synchronization with the physical aircraft.
return autopilot.status
# Returns the current status of the autopilot system.
# Placeholder functions for detailed implementation
function sensor_fusion_engine(sensor_stream):
# ... Implementation for sensor fusion ...
function quantum_ai_optimizer(fused_data, flight_data):
# ... Implementation for AI/Quantum analysis and optimization ...
function violates_constraints(optimized_plan, atc_inputs):
# ... Implementation for constraint validation ...
function re_optimize_with_constraints(optimized_plan, atc_inputs):
# ... Implementation for re-optimization ...
function generate_flight_commands(optimized_plan):
# ... Implementation for generating flight commands ...
function run_anomaly_detection(fused_data):
# ... Implementation for anomaly detection ...
function handle_contingency():
# ... Implementation for contingency handling ...
function update_pilot_interface(status):
# ... Implementation for updating pilot interface ...
function send_compliance_ack(atc_inputs):
# ... Implementation for sending compliance acknowledgements ...
function log_ai_iteration(fused_data, optimized_plan, flight_commands, anomaly_score):
# ... Implementation for logging AI iterations ...
digital_twin = initialize_digital_twin() # Assume a Digital Twin is initialized elsewhere
function initialize_digital_twin():
# ... Implementation for initializing the Digital Twin ...
4. Outputs and Expected Benefits
- Optimized Route: The autonomous system continuously calculates and adjusts the aircraft's route to optimize for fuel efficiency, reduced flight time, and passenger comfort. These routes are dynamically adjusted in response to real-time data, such as changing weather conditions or air traffic congestion.
- Autonomous Contingency Responses: Upon detecting system anomalies or failures (e.g., engine malfunction, sensor discrepancies), the system automatically executes predefined emergency protocols to mitigate risks and ensure safe operation. This could involve diverting to an alternate airport, adjusting flight parameters, or alerting the crew.
- ATC Integration: The system maintains continuous compliance with ATC instructions and airspace regulations. It automatically checks the flight profile against ATC clearances, restricted areas, and separation requirements, making necessary adjustments to ensure adherence.
- Historical Records / Traceability: Every decision made by the autopilot, along with the corresponding sensor data and rationale, is logged for post-flight analysis. This data is invaluable for:
- Auditing: Verifying the system's performance and compliance.
- Incident Investigation: Understanding the sequence of events leading to any incidents or anomalies.
- Model Refinement: Using real-world data to improve the AI/ML models and the Digital Twin through a continuous feedback loop.
5. Applications
- Commercial Aircraft with Reduced Crew: The autonomous system can handle most routine flight operations, allowing for a reduced crew complement. The captain and/or first officer primarily act as supervisors, monitoring the system's performance and intervening only when necessary. This model can lead to significant cost savings for airlines.
- Large Drones / UAVs: The system is well-suited for large cargo or transportation drones that require a high degree of autonomy for long-range missions. AI-based redundancy in navigation and decision-making enhances safety and reliability.
- Emerging Aviation (eVTOL): Electric Vertical Take-Off and Landing (eVTOL) aircraft, particularly those designed for urban air mobility, will heavily rely on autonomous control algorithms to navigate congested airspace safely and efficiently.
6. Integration Example: Dynamic Route Change
Scenario: A passenger aircraft equipped with the enhanced autopilot system is in cruise when it encounters an unexpected, severe storm front.
System Actions:
- Sensor Data and Fusion: The aircraft's weather radar, satellite data link, and other sensors detect the storm's location, intensity, and movement. The Sensors and Data Fusion Module combines this data to create a comprehensive picture of the hazard.
- Quantum/AI Analysis: The Quantum Analysis Module (or the AI sub-module if quantum computing is not implemented) rapidly computes an alternate route that bypasses the storm. It considers factors such as distance, time, fuel consumption, passenger comfort (minimizing turbulence), and any potential conflicts with other aircraft.
- ATC Communication: The Interface and Communication Module automatically generates a route change request and transmits it to ATC. It also checks for any ATC restrictions or instructions that might affect the new route.
- Constraint Validation: The system verifies that the new route complies with all airspace regulations and does not violate any safety parameters.
- Autopilot Execution: If the route change is approved by ATC (either automatically or manually), the Autopilot smoothly adjusts the aircraft's heading, altitude, and speed to follow the new trajectory.
- Pilot Interface Update: The Pilot Interface is updated to display the new route, the reason for the change (e.g., "Weather Deviation"), and the estimated time of arrival. An appropriate message like "Reroute Accepted, ETA +8 min" is displayed. The AR overlay (if equipped) visually highlights the new route and the storm to be avoided.
- Continuous Monitoring: The system continues to monitor the situation, including the storm's development and any further ATC instructions. It remains ready to make further adjustments if necessary.
- Digital Twin Update: The Digital Twin is updated in real-time to reflect the route change and the aircraft's new trajectory. This allows for ground-based monitoring and analysis of the situation.
Outcome: The aircraft safely avoids the severe turbulence associated with the storm, ensuring passenger safety and comfort. The autonomous system handles the situation efficiently, with minimal intervention required from the flight crew. The entire process is documented for later review and analysis.
7. Diagram
flowchart LR
A[Sensor Data] --> B(Sensor Fusion)
B --> C(Quantum/AI Optimizer)
C --> D{Check Constraints}
D -->|OK| E[Generate Flight Commands]
D -->|Violates| R[Re-Optimize]
R --> E
E --> F(Autopilot Execution)
F --> G[Monitoring & Anomaly Detection]
G -->|Anomaly| H[Contingency Handler]
G -->|No Anomaly| I[Interface Updates]
H --> J[Alert Pilot/ATC]
I --> K[Update Pilot Interface/ATC]
subgraph "Subroutines"
R --> R1[Extended Holding Pattern]
R --> R2[Auto-Diversion to Alternate]
end
style R1 fill:#ccf,stroke:#333,stroke-width:2px
style R2 fill:#ccf,stroke:#333,stroke-width:2px
style H fill:#fcc,stroke:#333,stroke-width:2px
Description: This flowchart illustrates the autonomous flight process, from sensor data acquisition to autopilot execution and contingency handling.
- Sensor Data: Represents the raw data collected from various aircraft sensors.
- Sensor Fusion: Combines data from multiple sensors to create a more accurate and reliable understanding of the aircraft's state and environment.
- Quantum/AI Optimizer: Uses AI and/or quantum computing to analyze the fused data and determine the optimal flight plan.
- Check Constraints: Verifies that the optimized plan complies with ATC instructions, airspace regulations, and safety parameters.
- Generate Flight Commands: Translates the optimized plan into specific commands for the aircraft's control surfaces and engines.
- Autopilot Execution: The autopilot system executes the commands, controlling the aircraft's flight path.
- Monitoring & Anomaly Detection: Continuously monitors the aircraft's state and the environment for any anomalies or deviations from the expected behavior.
- Contingency Handler: Activated if an anomaly is detected, triggering pre-defined emergency procedures or alternative plans.
- Interface Updates: Keeps the pilot and ATC informed about the autonomous system's status and decisions.
- Alert Pilot/ATC: Specifically for critical situations, this module will generate alerts.
- Subroutines (R1, R2):
- Extended Holding Pattern: A subroutine that can be activated if the aircraft needs to enter a holding pattern.
- Auto-Diversion to Alternate: A subroutine that can be activated if the aircraft needs to divert to an alternate airport.
8. Final Recommendations
- Advanced Cybersecurity:
- Quantum Encryption: Explore and integrate quantum-resistant encryption methods where applicable to secure communications between the aircraft, ATC, and ground systems. This is crucial to protect against future threats from quantum computers.
- Firmware Verification: Implement robust procedures for verifying the integrity of firmware before and after updates to prevent malicious code injection. This could involve cryptographic signatures and secure boot mechanisms.
- Redundancy:
- Backup Systems: Ensure the presence of redundant flight computers, communication links, and power supplies to maintain operation in case of primary system failures.
- Degraded Operations Protocols: Develop detailed procedures for operating the aircraft safely in various degraded modes, where some autonomous capabilities may be lost or limited.
- Certifications:
- Simulator Testing: Conduct extensive testing in high-fidelity simulators to validate the autonomous system's performance under a wide range of scenarios, including normal, abnormal, and emergency conditions.
- Early Engagement with FAA/EASA: Engage with regulatory authorities early in the development process to discuss the certification approach for autonomous flight systems and to understand their specific requirements and expectations.
- Operator Training:
- Specialized Training Modules: Develop specialized training modules for pilots and other relevant personnel on: * The principles of operation of the autonomous flight system. * Monitoring and supervising the autonomous system. * Intervention procedures and criteria. * Understanding the system's limitations and failure modes. * Collaboration and communication between the pilot and the autonomous system.
- Emergency Drills: Conduct regular emergency drills that involve both pilots and the autonomous system to ensure that procedures are well-understood and can be executed effectively. These drills should simulate various failure scenarios and test the pilot's ability to take over control from the autonomous system.
- Pilot-Autopilot Collaboration:
- Training Emphasis: Focus training on effective pilot-autopilot collaboration, emphasizing clear communication, mutual understanding of roles and responsibilities, and seamless transitions between manual and autonomous control.
- CRM Adaptation: Adapt Crew Resource Management (CRM) principles to the context of autonomous flight, emphasizing teamwork between the pilot and the AI.
9. Cost-Benefit Analysis
- Detailed Breakdown: Conduct a thorough cost-benefit analysis comparing manned vs. autonomous flights in various operational contexts.
- Cost Factors:
- Development and Certification: Include the costs of R&D, software development, hardware integration, testing, and certification.
- Implementation: Account for the costs of retrofitting existing aircraft or integrating the system into new aircraft.
- Training: Factor in the costs of developing and delivering training programs for pilots, maintenance personnel, and other stakeholders.
- Maintenance: Estimate the ongoing maintenance costs for the autonomous system, including software updates, hardware repairs, and sensor calibration.
- Insurance: Consider potential changes in insurance premiums due to the introduction of autonomous technology.
- Infrastructure: Factor any potential cost for infrastructure updates for supporting autonomous operations.
- Benefit Factors:
- Crew Cost Reduction: Analyze potential savings from reduced crew requirements, especially for long-haul flights or cargo operations.
- Fuel Efficiency: Quantify fuel savings resulting from optimized flight paths and more efficient operations.
- Increased Operational Efficiency: Estimate the benefits of increased aircraft utilization, reduced turnaround times, and optimized scheduling.
- Safety Improvements: While difficult to quantify directly, consider the potential reduction in accidents and incidents due to the mitigation of human error.
- New Revenue Streams: Explore potential for new revenue streams from autonomous cargo operations or new service models enabled by autonomous technology.
- Analysis:
- Net Present Value (NPV): Calculate the NPV of the autonomous flight system over its projected lifespan, considering the time value of money.
- Return on Investment (ROI): Determine the ROI to assess the financial viability and attractiveness of the investment.
- Payback Period: Calculate the time it takes for the accumulated benefits to exceed the accumulated costs.
- Sensitivity Analysis: Conduct sensitivity analyses to understand how changes in key assumptions (e.g., fuel prices, crew costs, accident rates) affect the overall cost-benefit analysis.
- Cost Factors:
10. Expanded Pilot Training Guidelines
- Understanding AI Limitations: Pilots need training to understand the limitations of AI, including potential biases in training data, the possibility of unexpected behavior in novel situations, and the importance of remaining vigilant even when the system is operating autonomously.
- Decision-Making Authority: Clearly define the pilot's authority and responsibility in relation to the autonomous system. Pilots should be trained on when and how to override the system's decisions.
- System Monitoring Skills: Develop specific training modules on how to effectively monitor the autonomous system's performance, interpret its status indicators, and identify subtle signs of potential issues.
- Multi-Modal Interaction: If the system incorporates voice control or AR, provide training on how to use these modalities effectively and efficiently.
- Simulator Training Emphasis: Place a strong emphasis on simulator training, exposing pilots to a wide range of scenarios, including:
- Normal autonomous operations in various flight phases and weather conditions.
- System failures and malfunctions.
- Emergency situations requiring pilot intervention.
- Unusual or unexpected behavior of the autonomous system.
- ATC interactions in an autonomous context.
11. Public Acceptance and Ethical Considerations
- Transparency: Be transparent with the public about the capabilities and limitations of the autonomous flight system. Provide clear and accessible information about how the system works, how decisions are made, and what safety measures are in place.
- Public Education: Develop public education campaigns to address common concerns and misconceptions about autonomous flight.
- Ethical Framework: Establish a clear ethical framework for the development and operation of the autonomous system. This framework should address issues such as:
- Accountability: Who is responsible when something goes wrong?
- Decision-Making in Emergencies: How should the system be programmed to make decisions in morally complex situations (e.g., the "trolley problem" applied to aviation)?
- Data Privacy: How will data collected by the autonomous system be used and protected?
- Collaboration: Work with industry groups, regulators, and ethicists to develop best practices and guidelines for the ethical development and deployment of autonomous flight technology.
Conclusion (22.121.4):
By incorporating these enhancements for autonomous flight, the Autopilot System of the GAIA AIR – Ampel360XWLRGA fleet advances toward minimal human intervention during all flight phases. This evolution aligns with GAIA’s ambitions to leverage AI, quantum analytics, and next-generation robotics—continuing to modernize air operations while satisfying global regulatory and safety standards. The integration of these advanced technologies not only enhances operational efficiency and safety but also positions GAIA AIR as a leader in the development and implementation of autonomous flight systems. The detailed considerations for regulatory compliance, pilot training, and public acceptance further ensure a smooth transition towards more autonomous operations. Ongoing collaboration with regulatory bodies, industry partners, and research institutions will be crucial to achieving these goals and realizing the full potential of autonomous flight.
Potential Cross-References:
- §22.200 Implementator: For details on the large-scale rollout and implementation of these autonomous flight enhancements across the GAIA AIR fleet.
- §22.95 (or similar HMI section): For specifics on user-centric HMI refinements enabling multi-modal interactions (voice, AR, etc.) to support the pilot's role in overseeing and interacting with the autonomous system.
- §22.53.x (Predictive Maintenance): For details on how data from the autonomous system integrates with predictive maintenance programs.
- Appendix A: For detailed regulatory references and compliance steps related to FAA/EASA regulations on autonomous flight.
Further Development:
- Detailed Design Documents: Develop detailed design documents for each module and sub-module of the autonomous flight system.
- Software Specifications: Create comprehensive software specifications for the AI/ML algorithms, control software, and communication protocols.
- Test Plans: Develop detailed test plans for each stage of development, including unit tests, integration tests, system tests, and flight tests.
- Safety Analysis Reports: Prepare safety analysis reports to demonstrate compliance with regulatory requirements and industry best practices.
- Training Materials: Develop comprehensive training materials for pilots, maintenance personnel, and other stakeholders.
This expanded section 22.121.4 provides a comprehensive roadmap for the integration of autonomous flight enhancements. By carefully considering the technical, regulatory, economic, and ethical aspects of this transformative technology, GAIA AIR can successfully implement these advancements and usher in a new era of safer, more efficient, and sustainable air travel. Remember to continuously update this section as the technology evolves and new insights emerge.
Upcoming Changes:
-
Stricter Certification Standards:
- Enhanced requirements for system redundancy and fail-safe mechanisms.
- Increased scrutiny on software reliability and cybersecurity.
-
New Safety Protocols:
- Implementation of advanced safety management systems (SMS) for autopilot operations.
- Enhanced protocols for handling system malfunctions and emergency scenarios.
-
Sustainability Standards:
- Regulations promoting the use of eco-friendly materials and energy-efficient system designs.
- Standards for reducing the environmental impact of autopilot systems.
Implications for Autopilot Systems:
- Design Adjustments: Need to incorporate stricter safety and redundancy measures.
- Maintenance Enhancements: More comprehensive maintenance procedures to meet evolving standards.
- Training Updates: Regular updates to training programs to align with new regulatory requirements.
Integration of Predictive Maintenance:
-
Data Analytics:
- Leveraging big data and analytics to monitor system performance and predict failures.
- Analyzing historical maintenance data to identify patterns and trends.
-
Machine Learning Models:
- Developing models that can forecast maintenance needs based on real-time data.
- Continuously improving models through machine learning for higher accuracy.
-
Automated Diagnostics:
- Implementing AI-driven diagnostic tools that automatically detect and diagnose system issues.
- Reducing the time required for manual diagnostics and troubleshooting.
Benefits:
- Proactive Maintenance: Anticipating and addressing issues before they lead to system failures.
- Cost Savings: Reducing unexpected downtimes and extending the lifespan of components.
- Enhanced System Reliability: Ensuring the Autopilot System operates optimally through continuous monitoring and maintenance.
Implementation Steps:
- Data Collection:
- Integrate sensors and IoT devices to collect comprehensive data on system performance.
- Model Development:
- Develop and train machine learning models using historical and real-time data.
- System Integration:
- Integrate predictive maintenance tools with the existing Autopilot System and CMMS.
- Monitoring and Alerts:
- Set up real-time monitoring dashboards and automated alert systems for impending maintenance needs.
- Continuous Improvement:
- Regularly update and refine predictive models based on new data and performance feedback.
Challenges:
- Data Quality: Ensuring high-quality, accurate data for reliable predictions.
- Integration Complexity: Seamlessly integrating predictive tools with existing systems.
- Personnel Training: Training maintenance personnel to interpret and act on predictive maintenance insights.
Conclusion:
Predictive maintenance, powered by AI, represents a significant advancement in Autopilot System management. By anticipating maintenance needs and addressing them proactively, organizations can achieve higher system reliability, reduced operational costs, and enhanced safety.
- EASA (European Union Aviation Safety Agency). (2023). Certification Specifications for Airplane Systems. Retrieved from EASA Website
- FAA (Federal Aviation Administration). (2023). Federal Aviation Regulations (FAR). Retrieved from FAA Website
- ATA International. (2022). ATA iSpec 2200: Aircraft Maintenance Information. Retrieved from ATA Website
- ISO (International Organization for Standardization). (2022). ISO 9001: Quality Management Systems – Requirements. Retrieved from ISO Website
- AS9100D Quality Management Systems – Requirements for Aviation, Space, and Defense Organizations.
- MIL-STD-1472G. (2021). Human Engineering Design Criteria for Military Systems. Retrieved from Military Standards
- ARP4754A. (2015). Guidelines for Development of Civil Aircraft and Systems. SAE International.
- DO-178C. (2011). Software Considerations in Airborne Systems and Equipment Certification. RTCA.
- DO-254. (2011). Design Assurance Guidance for Airborne Electronic Hardware. RTCA.
- Six Sigma Institute. (2023). Six Sigma Methodologies and Applications. Retrieved from Six Sigma Institute
- Kaizen Institute. (2023). Kaizen Principles and Practices. Retrieved from Kaizen Institute
Description: This schematic illustrates the key components and interconnections within the Autopilot System:
- Flight Control Computers (FCC): Process inputs and execute autopilot commands.
- Servo Actuators: Adjust control surfaces based on FCC outputs.
- Control Surfaces (Ailerons and Rudder): Mechanisms for flight path adjustments.
- Navigation Systems (GPS and INS): Provide positional data for autopilot accuracy.
- Sensors (Gyroscope and Accelerometer): Monitor aircraft motion and relay data to FCC.
- Mode Control Panel (MCP): Pilot interface for configuring autopilot settings.
- Human-Machine Interface (HMI): Displays system status and allows for manual overrides.
Description:
This chart uses the requested blue and yellow color scheme to visually represent the maintenance workflow for the Autopilot System:
- Routine Inspections: Begin with regular checks.
- Diagnostics with BITE: Utilize Built-In Test Equipment to identify potential issues.
- Repair or Replace Components: Fix or replace faulty parts.
- System Verification Tests: Validate the system’s functionality post-repair.
- Update Maintenance Logs: Document actions taken for future reference.
- Complete Maintenance: Finalize the process if no issues are found or after successful resolution.
Description:
This hierarchical diagram illustrates the Autopilot Maintenance Team Structure, emphasizing clear roles and responsibilities:
- Maintenance Manager: Oversees maintenance scheduling, personnel training, and compliance with ATA Chapter 22 standards.
- Supervisors: Coordinate daily tasks and monitor team performance.
- Technicians: Execute routine maintenance, inspections, and troubleshooting of the Autopilot System.
- Quality Assurance Specialists: Ensure all maintenance activities comply with regulatory standards and internal procedures.
| Task | Frequency | Completed (Y/N) | Notes |
|---|---|---|---|
| Check system status indicators | Daily | ||
| Inspect servo actuators | Weekly | ||
| Calibrate sensors | Monthly | ||
| Update software | Quarterly | ||
| Lubricate moving parts | Bi-Monthly | ||
| Backup system data | Weekly |
Inspection Report
- Date: ___________________
- Inspector: ___________________
- Aircraft Tail Number: ___________________
- Inspection Type: [ ] Routine [ ] Unscheduled
- Components Inspected:
- Flight Control Computers (FCC)
- Servo Actuators
- Sensors
- Mode Control Panel (MCP)
- Other: ___________________
- Findings:
-
- Actions Taken:
-
- Recommendations:
-
- Signature: ___________________
| Date | Issue | Fault Codes | Diagnosis | Action Taken | Resolved (Y/N) | Technician |
|---|---|---|---|---|---|---|
| YYYY-MM-DD | Autopilot not engaging | AP-01 | Power supply failure | Replaced power module | Y | John Doe |
| YYYY-MM-DD | Erratic flight path | AP-03, AP-04 | Sensor malfunction | Calibrated sensors | Y | Jane Smith |
| YYYY-MM-DD | System lag during operation | AP-02 | Software glitch | Updated firmware | Y | Emily Davis |
| YYYY-MM-DD | Unexpected disengagement | AP-05 | Overheating detected | Cleaned cooling vents | Y | Michael Brown |
| YYYY-MM-DD | Inaccurate navigation | AP-06 | GPS signal loss | Re-established GPS connectivity | Y | Sarah Wilson |
| Acronym | Definition |
|---|---|
| AI | Artificial Intelligence |
| ARP4754A | Guidelines for Development of Civil Aircraft and Systems |
| ATA | Air Transport Association |
| BITE | Built-In Test Equipment |
| CMMS | Computerized Maintenance Management System |
| DO-178C | Software Considerations in Airborne Systems and Equipment Certification |
| DO-254 | Design Assurance Guidance for Airborne Electronic Hardware |
| EICAS | Engine Indication and Crew Alerting System |
| ECAM | Electronic Centralized Aircraft Monitor |
| FAA | Federal Aviation Administration |
| FCC | Flight Control Computers |
| FMEA | Failure Modes and Effects Analysis |
| HMI | Human-Machine Interface |
| INS | Inertial Navigation System |
| ISO | International Organization for Standardization |
| LMS | Learning Management System |
| MIL-STD-1472 | Military Standard 1472 |
| MCP | Mode Control Panel |
| QRH | Quick Reference Handbook |
| RFID | Radio-Frequency Identification |
| SAE | Society of Automotive Engineers |
| SMS | Safety Management System |
| TQM | Total Quality Management |
| VR | Virtual Reality |
| Y | Yes |
| N | No |
The Autopilot System of the GAIA AIR – Ampel360XWLRGA Aircraft represents a blend of advanced engineering and cutting-edge technology, designed to ensure optimal flight performance and safety. As aviation continues to evolve, the integration of innovative technologies such as AI and predictive maintenance becomes paramount in maintaining the reliability and efficiency of autopilot systems. This companion section provides introductory insights into the significance of these advancements and their practical applications within the Autopilot System.
Key Insights:
- Technological Integration: The fusion of traditional autopilot functionalities with modern AI enhances decision-making capabilities and system adaptability.
- Predictive Maintenance: Leveraging data analytics to foresee maintenance needs reduces unexpected downtimes and prolongs system lifespan.
- User-Centric Design: Emphasizing intuitive HMI design ensures that pilots and maintenance personnel can interact with the system effectively, minimizing errors.
- Continuous Learning: Incorporating machine learning allows the Autopilot System to learn from past data, improving its performance over time.
Conclusion:
Understanding these introductory insights is crucial for appreciating the complexities and innovations embedded within the Autopilot System, setting the foundation for more detailed exploration in subsequent sections.
This section presents design solutions aimed at enhancing the functionality, reliability, and user experience of the Autopilot System in the GAIA AIR – Ampel360XWLRGA Aircraft.
Design Solutions:
-
Dual Flight Control Computers (FCC):
- Implementing dual FCCs to ensure continuous operation in case one fails.
- Real-time data synchronization between FCCs for seamless transition.
-
Redundant Power Supplies:
- Multiple power sources to prevent system outages.
- Automatic switching mechanisms to maintain power continuity.
-
Fail-Safe Control Surfaces:
- Incorporating mechanical backups for critical control surfaces.
- Ensuring manual override capabilities during system failures.
Design Solutions:
-
High-Precision Sensors:
- Utilizing advanced gyroscopes and accelerometers for accurate motion detection.
- Integrating multi-axis sensors for comprehensive data collection.
-
Sensor Fusion Technology:
- Combining data from multiple sensors to enhance system accuracy.
- Implementing algorithms that detect and correct sensor discrepancies.
Design Solutions:
-
Adaptive Control Algorithms:
- Developing AI algorithms that adapt to varying flight conditions.
- Enhancing system responsiveness and flight path optimization.
-
Anomaly Detection:
- Implementing machine learning models to identify and respond to unusual system behaviors.
- Reducing the response time to potential issues.
Design Solutions:
-
Data Analytics Platforms:
- Integrating platforms that analyze system data for predictive insights.
- Forecasting maintenance needs based on usage patterns and sensor data.
-
Automated Alerts and Scheduling:
- Setting up automated notifications for impending maintenance tasks.
- Streamlining maintenance scheduling to prevent disruptions.
Design Solutions:
-
Intuitive Interface Design:
- Developing user-friendly interfaces with clear visual indicators.
- Implementing touch and voice control options for enhanced accessibility.
-
Customizable Displays:
- Allowing users to personalize display settings based on preferences.
- Providing multiple display modes for different operational contexts.
Design Solutions:
-
Secure Communication Protocols:
- Implementing encryption for data transmission between system components.
- Protecting against unauthorized access and data breaches.
-
Regular Security Audits:
- Conducting periodic security assessments to identify vulnerabilities.
- Updating security protocols to address emerging threats.
Design Solutions:
-
Modular Architecture:
- Designing the Autopilot System with interchangeable modules for easy upgrades.
- Facilitating scalability to accommodate future advancements.
-
Flexible Integration Options:
- Ensuring compatibility with various avionics systems.
- Allowing for seamless integration of new technologies as they emerge.
Conclusion:
These design solutions aim to create a robust, efficient, and user-friendly Autopilot System that meets the high standards of modern aviation, ensuring the GAIA AIR – Ampel360XWLRGA Aircraft operates safely and efficiently under all conditions.
This section discusses strategies to ensure that the Autopilot System is scalable and operationally efficient, accommodating future advancements and expanding operational requirements.
Design Considerations:
-
Modular Components:
- Designing system components to be easily replaceable and upgradable.
- Facilitating the addition of new functionalities without overhauling the entire system.
-
Flexible Software Architecture:
- Implementing scalable software frameworks that can handle increased data processing and integration needs.
- Ensuring compatibility with future software updates and enhancements.
-
Future-Proof Hardware:
- Selecting hardware components with higher processing capabilities and memory to accommodate future software demands.
- Ensuring physical interfaces are adaptable for new technologies.
Certainly! Below is the fully integrated 22.200.1 Fully Autonomous Flight Architecture document, incorporating both the original content and the expanded sections. This comprehensive framework provides detailed insights into the development and implementation of a fully autonomous Autopilot system, aligning with current industry standards and anticipating future advancements.
This section outlines a framework for an advanced Autopilot system capable of executing flights from gate to gate with minimal or no pilot intervention. It builds on modular algorithms—ranging from mission coordination and contingency management to ATC integration—forming the basis of next-generation autonomous aviation.
-
Section “22.200 Implementator (Scalability and Operation)”
Focuses on fleet-level scaling and complex operational scenarios. Fully autonomous flight is suitable here since it tackles end-to-end mission execution across all phases of flight. -
Section “22.120 Future Trends”
Fully autonomous flight is a forward-looking concept leveraging advanced AI, quantum computing, and robotics, making it equally relevant for discussion under “Future Trends.”
To ensure the Fully Autonomous Flight Architecture adheres to existing and forthcoming aviation regulations, the following cross-references to FAA/EASA regulations and industry standards are pertinent:
-
FAA Regulations:
- FAA Part 23/25/27/29/91: These parts cover airworthiness standards for different classes of aircraft, operational rules, and maintenance requirements essential for integrating autonomous systems.
- FAA AC 20-138: Guidance for UAV operations, which can be extrapolated for larger autonomous aircraft.
- FAA NextGen Initiatives: Aligns with advancements in air traffic management that support autonomous flight operations.
-
EASA Regulations:
- EASA Part 23/25/27/29: Similar to FAA, these parts outline airworthiness standards across various aircraft categories within the European Union.
- EASA SC 20/20: Standards for UAV operations and the integration of autonomous systems into controlled airspace.
-
Industry Standards:
- SAE International AS9110: Quality management systems for aviation maintenance organizations, ensuring reliable maintenance of autonomous systems.
- DO-178C (Software Considerations in Airborne Systems): Standards for software development, critical for the safety and reliability of autonomous flight software.
- ARINC Standards (e.g., ARINC 664): Data communication standards necessary for seamless ATC integration and inter-system communication.
-
Emerging Standards:
- ISO/IEC 27001: Information security standards to safeguard data integrity and cybersecurity in autonomous systems.
- RTCA DO-326A: Unmanned Aircraft Systems (UAS) Traffic Management (UTM) standards, essential for integrating autonomous flights into national airspace.
Implementation Notes:
- Regularly update the architecture to remain compliant with evolving regulations.
- Collaborate with regulatory bodies during the development phase to ensure alignment and facilitate certification processes.
Below are three principal modules/algorithms needed to achieve a genuinely autonomous flight system:
- Autonomous Mission Coordination
- Deep-Learning-Based Contingency Management
- ATC Integration and Real-Time Regulatory Compliance
Each is described using an Objective–Inputs–Process–Outputs format consistent with ATA 22 documentation conventions.
To further enhance the Fully Autonomous Flight Architecture, integrating Quantum Optimization and Sensor Fusion modules is recommended. These modules will leverage cutting-edge technologies to improve decision-making, efficiency, and reliability.
-
Quantum Optimization Module
Objective: Utilize quantum computing techniques to solve complex optimization problems in real-time, enhancing flight path planning and resource management.
Key Features:
- Real-Time Route Optimization: Calculate the most efficient flight paths considering dynamic variables such as weather, air traffic, and fuel consumption.
- Resource Allocation: Optimize the use of onboard resources (e.g., energy, payload distribution) for maximum efficiency.
- Predictive Maintenance Scheduling: Use quantum algorithms to predict maintenance needs based on real-time data, minimizing downtime and preventing failures.
Benefits:
- Enhanced Efficiency: Achieve optimal routing and resource utilization beyond classical computational capabilities.
- Faster Decision-Making: Solve complex optimization problems more quickly, enabling timely adjustments during flight.
- Scalability: Handle increasing amounts of data and complexity as autonomous systems evolve.
-
Sensor Fusion Enhancement Module
Objective: Integrate data from multiple sensors to create a comprehensive and accurate representation of the aircraft’s environment and internal state.
Key Features:
- Multi-Sensor Integration: Combine inputs from radar, LIDAR, cameras, GPS, IMUs, and other sensors to enhance situational awareness.
- Redundancy and Reliability: Cross-validate sensor data to identify and mitigate sensor failures or inaccuracies.
- Environmental Mapping: Create real-time 3D maps of the surrounding airspace, obstacles, and terrain for improved navigation and obstacle avoidance.
Benefits:
- Increased Accuracy: More precise data interpretation through the combination of multiple sensor inputs.
- Enhanced Safety: Improved detection and response to unexpected obstacles or environmental changes.
- Robustness: Greater resilience to individual sensor failures, ensuring continuous reliable operation.
Integration Notes:
- Ensure compatibility and seamless communication between quantum and sensor fusion modules and existing systems.
- Implement rigorous testing protocols to validate the performance and reliability of these advanced modules under various operational scenarios.
Objective
Enable the Autopilot to plan, execute, and oversee the entire flight profile—taxi, takeoff, climb, cruise, approach, landing, and final taxi—in a hands-off manner.
Inputs
- Flight Plan Data: Origin, destination, waypoints, and alternates
- Dynamic Constraints: Weather data, ATC information, runway status, no-fly zones
- Performance Parameters: Fuel state, weight & balance, thrust curves
- Regulatory Protocols: Altitude restrictions, noise-abatement rules, separation minima
Process (Pseudocode)
# Pseudocode: Autonomous Mission Coordination
function AutonomousFlightCoordinator(flight_plan, constraints, aircraft_data):
# 1. Pre-Flight Checks
validate_aircraft_status(aircraft_data)
if not safe_for_departure(aircraft_data):
return "Abort: Pre-flight checks failed"
# 2. Taxi and Takeoff
path_taxi = generate_taxi_route(flight_plan.airport_layout)
guidance_system.follow_path(path_taxi)
if check_runway_clearance() == OK:
autopilot_takeoff()
else:
return "Holding: Runway unavailable"
# 3. Cruise Phase
while not nearing_destination():
optimize_flight_path(constraints, wind_data, quantum_analytics)
adjust_altitude_and_heading()
if detect_anomaly():
handle_anomaly()
# 4. Descent and Approach
plan_approach(flight_plan, weather_data)
autopilot_descent(approach_path)
# 5. Landing and Taxi-In
if runway_is_clear():
autopilot_landing()
else:
enter_holding_pattern()
post_flight_procedures()
return "Autonomous Flight Completed"Outputs
- Automated Flight Commands for each phase (taxi, takeoff, cruise, descent, landing)
- Continuous Monitoring: Anomaly detection and fallback procedures if conditions become unfavorable
Applications
- Door-to-Door Autonomy for cargo or passenger operations
- Reduced-Crew or Single-Pilot operations for oversight only
Example
- A UAV cargo aircraft performs the entire route, reoptimizing in real-time with quantum analytics to cut flight time and fuel consumption.
To facilitate real-time mission updates and dynamic communication between the autonomous aircraft and ground control or other systems, integrating advanced data link protocols is essential. One such protocol is Controller-Pilot Data Link Communications (CPDLC).
Controller-Pilot Data Link Communications (CPDLC):
Overview: CPDLC is a standardized method for exchanging text-based messages between controllers and pilots, reducing the need for voice communication and enhancing clarity and efficiency.
Key Features:
- Text-Based Communication: Facilitates precise and unambiguous instructions, reducing the risk of misunderstandings inherent in voice communication.
- Message Types: Includes clearances, requests, advisories, and reports, enabling comprehensive mission management.
- Integration with Autopilot Systems: Allows the autonomous flight system to receive and process ATC instructions seamlessly.
Implementation in Autonomous Mission Coordination:
- Mission Updates: Receive real-time changes to flight plans, such as rerouting around weather or airspace restrictions.
- Clearances and Instructions: Automatically process ATC clearances for takeoff, landing, altitude changes, and holding patterns.
- Acknowledgments: Send automated confirmations (e.g., “Roger”) back to ATC to acknowledge receipt and compliance with instructions.
Benefits:
- Enhanced Communication Efficiency: Streamlines interactions between ATC and the autonomous system, reducing communication delays.
- Improved Safety: Minimizes miscommunication risks, ensuring that flight instructions are accurately received and executed.
- Scalability: Supports high-volume communication environments, essential for managing multiple autonomous flights in busy airspace.
Integration Steps:
- Protocol Implementation: Incorporate CPDLC standards into the Autopilot’s communication systems.
- Testing and Validation: Conduct extensive testing in simulated environments to ensure reliable message transmission and processing.
- Regulatory Compliance: Work with aviation authorities to ensure CPDLC implementation meets all regulatory requirements for autonomous operations.
- Interoperability: Ensure compatibility with existing ATC systems and other autonomous aircraft to facilitate smooth communication across different platforms.
Objective
Give the Autopilot ML models to detect and handle unexpected scenarios (engine failures, severe turbulence, sensor malfunctions) in real time.
Inputs
- Sensor Fusion: INS, GPS, airspeed, engine status, etc.
- Historical Failure Data: Maintenance logs plus simulation-based edge cases
- Aircraft Envelope: Stall speeds, structural limits, max load factors
Process (Pseudocode)
# Pseudocode: Deep-Learning Contingency Handler
function ContingencyHandler(sensor_data, aircraft_state):
# 1. Anomaly Detection
anomaly_score = dl_model_inference(sensor_data)
if anomaly_score > anomaly_threshold:
# 2. Failure Mode Classification
failure_mode = classify_anomaly(sensor_data)
# 3. Autonomous Response
if failure_mode == "ENGINE_OUT":
autopilot.apply_engine_out_procedures(aircraft_state)
elif failure_mode == "SEVERE_TURBULENCE":
autopilot.adjust_altitude_or_heading()
else:
fallback_procedure(failure_mode)
else:
return "No anomaly detected"
return "Contingency Response Executed"Outputs
- Emergency or Adjusted Flight Commands (engine-out climbs, immediate altitude changes)
- System Status updates to the flight deck or remote operator
Applications
- High-Reliability UAV or commercial aircraft requiring immediate autopilot intervention
- Cockpit Overload Scenarios: Automatic stress load reduction by self-managing emergent issues
Example
- Severe turbulence triggers an anomaly detection. The system modifies flight parameters and updates the pilot/ground station with recommended route changes.
To enhance the Deep-Learning-Based Contingency Management module, incorporating advanced Machine Learning (ML) and Reinforcement Learning (RL) strategies will significantly improve anomaly detection and response capabilities.
-
Advanced Machine Learning Strategies
a. Ensemble Learning:
- Description: Combine multiple ML models (e.g., Random Forests, Gradient Boosting Machines) to improve prediction accuracy and robustness.
- Application: Enhance anomaly detection by aggregating the predictions of various models to reduce false positives and negatives.
b. Transfer Learning:
- Description: Leverage pre-trained models on similar tasks to accelerate training and improve performance on specific contingency scenarios.
- Application: Utilize models trained on general aviation data to better detect and respond to unique anomalies in autonomous flights.
-
Reinforcement Learning Strategies
a. Policy Gradient Methods:
- Description: Optimize decision-making policies by directly adjusting the parameters to maximize expected rewards.
- Application: Develop adaptive response strategies for different failure modes, allowing the system to learn optimal actions through trial and error in simulated environments.
b. Deep Q-Networks (DQN):
- Description: Use deep neural networks to approximate Q-values, enabling the system to make decisions based on expected future rewards.
- Application: Facilitate real-time decision-making for complex contingency scenarios, such as simultaneous multiple system failures.
-
Large Training Datasets for Deeper Anomaly Detection
a. Synthetic Data Generation:
- Description: Create simulated flight data that includes a wide range of failure scenarios and edge cases to train ML models.
- Application: Ensure models are exposed to rare but critical events that may not be present in historical data.
b. Data Augmentation Techniques:
- Description: Enhance existing datasets by applying transformations (e.g., noise addition, signal distortion) to increase variability.
- Application: Improve model generalization by training on diverse data samples, making the system more resilient to unexpected anomalies.
Implementation Steps:
-
Model Development:
- Develop and train ensemble and reinforcement learning models using comprehensive datasets.
- Utilize transfer learning to incorporate knowledge from related domains, enhancing model performance.
-
Simulation and Testing:
- Deploy models in simulated flight environments to test their effectiveness in detecting and responding to contingencies.
- Iterate on model design based on performance metrics and simulation outcomes.
-
Continuous Learning:
- Implement mechanisms for continuous model updates based on new data and real-world flight experiences.
- Ensure that models can adapt to evolving flight conditions and emerging anomaly types.
-
Validation and Certification:
- Collaborate with regulatory bodies to validate ML and RL strategies, ensuring they meet safety and reliability standards for autonomous operations.
Benefits:
- Enhanced Detection Accuracy: Improved ability to identify and classify a wide range of anomalies with higher precision.
- Adaptive Responses: Ability to learn and optimize responses to new and unforeseen contingencies, enhancing overall system resilience.
- Scalability: Models can be updated and scaled to accommodate increasing flight operations and complexity.
Objective
Ensure fully autonomous flights interface smoothly with ATC, adhering to separation rules, flight corridors, and dynamic controller directives.
Inputs
- ATC Data Feeds: Clearances, altimeter settings, approach instructions
- Airspace Corridor Definitions: Lateral/vertical boundaries, restricted areas
- Contingency Protocols: Steps for lost communications or contradictory directives
Process (Pseudocode)
# Pseudocode: ATC Compliance Engine
function ATCComplianceEngine(autopilot_state, atc_messages):
for message in atc_messages:
if message.type == "CLEARANCE":
autopilot.update_flight_path(message.new_route)
elif message.type == "ALTITUDE_CHANGE":
autopilot.set_altitude(message.altitude)
elif message.type == "HOLD_INSTRUCTIONS":
autopilot.enter_holding_pattern(message.holding_fix)
else:
log_unknown_message(message)
# Maintain assigned corridor
if out_of_corridor(autopilot_state.position):
autopilot.correct_course()
handle_frequency_changes()
return "ATC Compliance Maintained"Outputs
- Flight Path Adjustments: Heading, altitude, or holding patterns
- Status Acknowledgments: Confirmations or requests back to ATC
Applications
- Pilotless Cargo Flight in controlled airspace with dynamic route updates
- Night Operations: Automatic compliance with noise or altitude restrictions
Example
- A fully autonomous cargo aircraft receives an altitude change from ATC. The Autopilot complies and sends an automated “Roger” message via data link.
To achieve seamless integration between fully autonomous flights and Air Traffic Control (ATC), leveraging advanced ground-based and distributed AI systems is crucial. This synergy will facilitate comprehensive traffic management, enhancing safety and efficiency in increasingly crowded airspace.
-
Advanced Ground-Based AI for Traffic Management
a. Centralized AI Traffic Control:
- Description: Deploy centralized AI systems that oversee and manage all autonomous flight operations within a designated airspace.
- Functionality: Monitor real-time flight data, predict traffic patterns, and optimize traffic flow to prevent congestion and reduce the risk of collisions.
b. Dynamic Airspace Allocation:
- Description: Use AI to dynamically allocate airspace resources based on real-time demand, weather conditions, and flight priorities.
- Functionality: Adjust flight corridors, altitudes, and routes in real-time to accommodate changes in traffic and environmental factors.
-
Distributed AI for Decentralized Decision-Making
a. Peer-to-Peer Communication:
- Description: Enable autonomous aircraft to communicate directly with each other using distributed AI algorithms.
- Functionality: Share positional data, intentions, and contingency responses to collaboratively manage traffic and avoid conflicts.
b. Localized AI Conflict Resolution:
- Description: Implement AI systems on individual aircraft that can independently detect and resolve potential conflicts based on shared data.
- Functionality: Make real-time adjustments to flight paths and speeds to maintain safe separation without relying solely on ground-based directives.
-
Synergistic AI Integration Strategies
a. Multi-Agent Reinforcement Learning:
- Description: Apply multi-agent RL techniques where both ground-based and aircraft-based AI agents learn to cooperate and optimize overall traffic management.
- Functionality: Enhance collective decision-making processes, ensuring that individual actions contribute to global traffic efficiency and safety.
b. Federated Learning:
- Description: Utilize federated learning to allow distributed AI systems (both on-ground and onboard) to collaboratively train models without sharing raw data.
- Functionality: Protect data privacy while enabling AI systems to benefit from collective learning experiences, improving traffic management capabilities.
-
Integration with Existing ATC Systems
a. Seamless Data Exchange:
- Description: Ensure compatibility and seamless data exchange between autonomous flight systems and traditional ATC systems.
- Functionality: Use standardized communication protocols and data formats to facilitate interoperability and efficient information sharing.
b. Enhanced Predictive Analytics:
- Description: Leverage AI-driven predictive analytics to anticipate traffic trends, potential conflicts, and optimal traffic routing.
- Functionality: Provide ATC with actionable insights to proactively manage airspace and mitigate emerging issues before they escalate.
Implementation Steps:
-
AI System Development:
- Develop and deploy centralized and distributed AI systems tailored for advanced traffic management.
- Ensure robust communication protocols are in place for seamless interaction between all AI agents and ATC systems.
-
Pilot Programs and Simulations:
- Conduct pilot programs to test AI-driven traffic management in controlled environments.
- Use simulations to evaluate the effectiveness of AI integration strategies and refine algorithms based on performance data.
-
Regulatory Collaboration:
- Work closely with aviation authorities to establish guidelines and standards for AI-based traffic management systems.
- Ensure that AI integrations comply with all safety, security, and operational regulations.
-
Continuous Monitoring and Optimization:
- Implement monitoring systems to track AI performance and adapt to changing airspace conditions.
- Utilize feedback loops to continuously improve AI algorithms based on real-world operational data.
Benefits:
- Scalability: Efficiently manage increasing numbers of autonomous flights without overburdening traditional ATC systems.
- Enhanced Safety: Proactively prevent conflicts and manage traffic flows, reducing the risk of mid-air collisions and other incidents.
- Operational Efficiency: Optimize airspace usage, reducing delays and improving overall flight efficiency.
High-level Mermaid diagram illustrating an autonomous flight cycle:
flowchart TB
A[Pre-Flight Checks] --> B{All Systems OK?}
B -->|No| ABORT[Abort Flight]
B -->|Yes| C[Taxi & Takeoff]
C --> D[Cruise / Optimization]
D -->|Condition: Descend| E[Approach & Landing]
E --> F{Runway Clear?}
F -->|No| HOLD[Enter Holding Pattern]
F -->|Yes| LAND[Autopilot Landing]
LAND --> G[Taxi to Gate]
G --> END[Post-Flight Procedures]
To accommodate real-world complexities and ensure robust autonomous flight operations, incorporating additional subroutines for extended holding patterns and automatic diversion logic is essential. These subroutines enhance the system’s ability to handle unforeseen circumstances effectively.
-
Extended Holding Pattern Subroutine
Objective: Enable the Autopilot system to enter and manage extended holding patterns during prolonged periods of congestion, adverse weather, or other delays.
Key Components:
-
Extended Holding Decision Logic:
- Trigger Conditions: Identify conditions requiring extended holding, such as prolonged ATC delays, extended weather issues, or operational constraints at the destination airport.
- Holding Pattern Design: Calculate optimal holding routes, altitudes, and durations based on current flight data and airspace availability.
-
Resource Management:
- Fuel Monitoring: Continuously assess fuel levels to ensure sufficient reserves for extended holding or potential diversions.
- Passenger Comfort: Implement measures to maintain passenger comfort during extended holding, such as adjusting cabin conditions if applicable.
-
Communication Management:
- ATC Updates: Maintain regular communication with ATC to receive updates on holding duration and potential release instructions.
- Passenger Information Systems: Update passengers or ground operations on the status of the hold and expected timelines.
-
-
Automatic Diversion Logic Subroutine
Objective: Provide the Autopilot with the capability to autonomously divert to alternate airports in response to critical issues such as severe weather, runway closures, or significant system malfunctions.
Key Components:
-
Diversion Decision Engine:
- Critical Issue Detection: Identify critical issues that necessitate diversion, such as severe weather forecasts, runway unavailability, or major system failures.
- Alternate Airport Selection: Utilize pre-defined criteria to select the most suitable alternate airport based on proximity, available facilities, and current conditions.
-
Route Replanning:
- Optimized Diversion Path: Calculate the most efficient route to the selected alternate airport, considering current flight status and environmental factors.
- Airspace Compliance: Ensure the diversion route adheres to all regulatory and airspace constraints.
-
System Reconfiguration:
- Flight Parameter Adjustments: Modify flight parameters (e.g., speed, altitude) to optimize the diversion process.
- Passenger and Crew Notifications: Automatically inform passengers and remote operators of the diversion and provide updates on the new flight plan.
-
Safety and Redundancy Measures:
- Fuel Management: Ensure that diversion is performed with adequate fuel reserves, factoring in potential additional delays.
- Backup Diversion Options: Maintain a list of secondary alternate airports in case the primary alternate becomes unavailable.
-
Implementation Steps:
-
Subroutine Integration:
- Integrate extended holding and automatic diversion subroutines into the overall flight architecture.
- Ensure seamless interaction with existing modules such as mission coordination and contingency management.
-
Testing and Validation:
- Conduct rigorous simulations to validate the performance and reliability of the new subroutines under various scenarios.
- Implement fail-safes and fallback mechanisms to handle subroutine failures or unexpected conditions.
-
Regulatory Alignment:
- Collaborate with aviation authorities to ensure that extended holding and diversion logic comply with all relevant regulations and standards.
- Update operational protocols to incorporate the new capabilities.
-
Continuous Improvement:
- Monitor the performance of the subroutines in real-world operations and incorporate feedback for ongoing enhancements.
- Update algorithms based on evolving airspace conditions, regulatory changes, and technological advancements.
Benefits:
- Enhanced Resilience: Improve the system’s ability to handle prolonged delays and critical issues without compromising safety.
- Operational Flexibility: Allow for dynamic adjustments to flight plans in response to real-time conditions, maintaining operational efficiency.
- Passenger and Stakeholder Confidence: Provide transparent and reliable handling of extended holds and diversions, enhancing trust in autonomous operations.
-
Redundancy & Fail-Safe
- Multiple flight computers, sensor arrays, and degrade modes if a subsystem fails.
-
Cybersecurity & Data Integrity
- Protect communications and software updates with quantum-safe encryption (see §22.93).
-
Regulatory Compliance
- Ongoing discussions with FAA/EASA to define pilotless or reduced-crew frameworks, including separation and flight authorizations.
-
Pilot / Remote Operator Role
- Though autonomous, a human may monitor vitals and intervene under extreme edge cases.
-
Maintenance & Upgrades
- Emphasize predictive maintenance (see §22.53.1) to minimize inflight failures.
- Schedule regular calibration of sensors and updates to ML models.
Expanded Section: Hardware Redundancy and Degrade-to-Manual Handover in High-Stress or System-Failure Scenarios
To ensure the Fully Autonomous Flight Architecture maintains high reliability and safety standards, implementing comprehensive hardware redundancy and clear protocols for degrading to manual control is essential.
-
Hardware Redundancy
a. Redundant Flight Computers:
- Description: Deploy multiple flight computers that operate in parallel, ensuring that if one fails, others can seamlessly take over without interrupting flight operations.
- Implementation:
- Diversity: Use flight computers from different manufacturers or with different architectures to minimize the risk of common-mode failures.
- Hot Standby Systems: Maintain standby flight computers that can immediately assume control in the event of a failure.
b. Redundant Sensor Arrays:
- Description: Utilize multiple sets of critical sensors (e.g., GPS, INS, airspeed indicators) to provide continuous and accurate data even if some sensors fail.
- Implementation:
- Cross-Verification: Implement systems that cross-verify data from redundant sensors to detect and isolate faulty inputs.
- Distributed Sensor Networks: Position sensors in multiple locations on the aircraft to protect against localized failures.
c. Redundant Communication Systems:
- Description: Ensure multiple communication pathways (e.g., VHF, satellite, data links) are available for maintaining contact with ATC and ground control.
- Implementation:
- Failover Mechanisms: Automatically switch to backup communication systems if primary channels become unavailable.
- Secure Communication: Protect all redundant communication channels with encryption to prevent unauthorized access and ensure data integrity.
-
Degrade-to-Manual Handover Protocols
a. Detection of High-Stress or System-Failure Scenarios:
- Automated Monitoring: Continuously monitor system health and flight conditions to detect anomalies or failures that exceed autonomous handling capabilities.
- Thresholds and Triggers: Define specific thresholds (e.g., critical system failures, extreme weather conditions) that initiate the degrade-to-manual process.
b. Handover Procedures:
- Immediate Alerting: Automatically alert the pilot or remote operator of the impending handover through visual, auditory, and tactile signals.
- Control Transfer: Seamlessly transfer control from the Autopilot to the pilot or remote operator, ensuring no loss of critical flight data during the transition.
- Assisted Handover: Provide the pilot with real-time information about the current flight status, system failures, and suggested actions to facilitate a smooth takeover.
c. Training and Simulation:
- Pilot Training: Ensure pilots are extensively trained in handling degrade-to-manual scenarios, including rapid decision-making and system troubleshooting.
- Simulation Drills: Regularly conduct simulation exercises to test and refine the handover protocols, ensuring readiness for actual events.
-
Fail-Safe Mechanisms:
- Emergency Power Supplies: Incorporate backup power sources (e.g., batteries, generators) to maintain critical systems during power failures.
- Mechanical Redundancies: Implement mechanical backups for essential controls (e.g., manual override levers) to allow for physical intervention if electronic systems fail.
-
Maintenance and Testing:
- Regular Inspections: Conduct frequent inspections and maintenance of redundant hardware components to ensure their operational readiness.
- Integrity Testing: Perform periodic integrity tests on redundancy systems to verify their functionality and reliability under various conditions.
Implementation Steps:
-
Redundancy Design:
- Architect the system with multiple layers of redundancy for critical hardware components.
- Ensure that redundant systems are isolated to prevent cascading failures.
-
Protocol Development:
- Develop detailed protocols for degrade-to-manual handovers, including step-by-step procedures and communication guidelines.
- Incorporate fail-safe triggers that automatically initiate handover protocols when necessary.
-
Integration and Testing:
- Integrate redundant hardware systems into the overall flight architecture, ensuring compatibility and seamless operation.
- Conduct extensive testing under simulated failure conditions to validate redundancy and handover protocols.
-
Certification and Compliance:
- Work with aviation regulatory bodies to certify the redundancy and handover systems, ensuring compliance with all safety standards.
- Document all redundancy measures and handover procedures as part of the certification process.
Benefits:
- Enhanced Safety: Mitigate the risk of catastrophic failures by ensuring critical systems remain operational through redundancy.
- Operational Continuity: Maintain flight operations even in the event of partial system failures, reducing the likelihood of aborted missions.
- Pilot Assurance: Provide pilots and remote operators with confidence in the system’s reliability and the effectiveness of manual intervention protocols.
-
Redundancy & Fail-Safe
- Multiple flight computers, sensor arrays, and degrade modes if a subsystem fails.
-
Cybersecurity & Data Integrity
- Protect communications and software updates with quantum-safe encryption (see §22.93).
-
Regulatory Compliance
- Ongoing discussions with FAA/EASA to define pilotless or reduced-crew frameworks, including separation and flight authorizations.
-
Pilot / Remote Operator Role
- Though autonomous, a human may monitor vitals and intervene under extreme edge cases.
-
Maintenance & Upgrades
- Emphasize predictive maintenance (see §22.53.1) to minimize inflight failures.
- Schedule regular calibration of sensors and updates to ML models.
Expanded Section: Pilot Training Impacts, Operational Dashboards for Ground Monitoring, and Commercial Viability Analysis
To comprehensively address the transition to Fully Autonomous Flight, it is essential to consider the impacts on pilot training, the development of operational dashboards for ground monitoring, and the commercial viability of autonomous operations in both cargo and passenger sectors.
-
Pilot Training Impacts
a. Role Transformation:
- From Manual Control to Oversight: Shift pilot training from traditional manual flying skills to supervisory roles, focusing on monitoring autonomous systems and intervening when necessary.
- Enhanced Technical Skills: Train pilots in understanding and managing advanced systems such as AI, machine learning models, and quantum computing components integrated into the Autopilot.
b. New Training Programs:
- Autonomous System Familiarization: Develop comprehensive training modules that cover the architecture, functionalities, and failure modes of the autonomous systems.
- Emergency Intervention Procedures: Equip pilots with skills to handle scenarios where manual intervention is required, including troubleshooting and system recovery techniques.
c. Certification and Continuous Education:
- Certification Standards: Establish new certification criteria that validate pilots’ competence in overseeing autonomous operations.
- Ongoing Training: Implement continuous education programs to keep pilots updated on system upgrades, new technologies, and evolving operational protocols.
-
Operational Dashboards for Ground Monitoring
a. Real-Time Monitoring Interfaces:
- Flight Status Visualization: Develop dashboards that display real-time flight data, including position, speed, altitude, and system health indicators.
- Anomaly Detection Alerts: Incorporate alert systems that notify ground operators of any detected anomalies or system failures, enabling prompt intervention if needed.
b. Data Analytics and Reporting:
- Performance Metrics: Track key performance indicators (KPIs) such as fuel efficiency, on-time performance, and system reliability.
- Historical Data Analysis: Provide tools for analyzing historical flight data to identify trends, optimize operations, and inform maintenance schedules.
c. User-Friendly Interfaces:
- Intuitive Design: Ensure dashboards are designed for ease of use, allowing ground operators to quickly interpret data and make informed decisions.
- Customization Options: Allow operators to customize views and alerts based on specific roles and responsibilities, enhancing operational efficiency.
-
Commercial Viability Analysis: Cargo vs. Passenger Missions
a. Cargo Operations:
- High Demand for Efficiency: Autonomous systems can significantly reduce operational costs by minimizing the need for pilot crews and optimizing flight routes for fuel savings.
- 24/7 Operations: Enable continuous, unmanned cargo flights, increasing the throughput and flexibility of logistics networks.
- Safety and Reliability: High-reliability autonomous systems reduce the risk of accidents, ensuring safe and consistent cargo delivery.
b. Passenger Operations:
- Passenger Acceptance: Addressing passenger trust and acceptance is critical, requiring transparent safety measures and reliable performance.
- Enhanced Services: Autonomous systems can offer personalized in-flight services and improved comfort by optimizing flight conditions based on real-time data.
- Regulatory Challenges: Navigating stringent safety and certification requirements for passenger flights necessitates thorough testing and compliance with aviation standards.
c. Comparative Analysis:
- Cost-Benefit: Cargo operations benefit more immediately from cost reductions and efficiency gains, making them a more viable initial market for autonomous systems.
- Scalability: Passenger operations present greater scalability challenges due to higher safety standards and the need for passenger-centric services.
- Market Potential: Both sectors have significant market potential, but cargo operations offer a quicker return on investment, while passenger operations promise long-term growth as technology and acceptance mature.
Implementation Steps:
-
Develop Training Curricula:
- Collaborate with aviation training institutions to create specialized programs for pilots overseeing autonomous systems.
- Incorporate simulation-based training to provide hands-on experience with autonomous flight operations.
-
Design and Deploy Dashboards:
- Partner with software developers and UX designers to create effective operational dashboards.
- Pilot dashboard interfaces with ground operators to gather feedback and refine functionalities.
-
Conduct Market Research:
- Analyze market trends, customer needs, and competitive landscapes for both cargo and passenger autonomous operations.
- Develop business models that highlight the cost savings and efficiency improvements offered by autonomous systems.
-
Engage with Stakeholders:
- Work with regulatory bodies, airlines, logistics companies, and passenger advocacy groups to align autonomous flight solutions with industry needs and expectations.
- Promote the benefits of autonomous systems to potential commercial partners through demonstrations and pilot projects.
Benefits:
- Optimized Workforce Utilization: Transform pilot roles to focus on system oversight, enhancing workforce efficiency and job satisfaction.
- Enhanced Ground Operations: Operational dashboards provide ground teams with the tools needed to manage and monitor autonomous flights effectively.
- Strategic Market Positioning: By addressing the specific needs of cargo and passenger sectors, the Autopilot system can capture diverse market segments and drive widespread adoption of autonomous flight technologies.
-
Redundancy & Fail-Safe
- Multiple flight computers, sensor arrays, and degrade modes if a subsystem fails.
-
Cybersecurity & Data Integrity
- Protect communications and software updates with quantum-safe encryption (see §22.93).
-
Regulatory Compliance
- Ongoing discussions with FAA/EASA to define pilotless or reduced-crew frameworks, including separation and flight authorizations.
-
Pilot / Remote Operator Role
- Though autonomous, a human may monitor vitals and intervene under extreme edge cases.
-
Maintenance & Upgrades
- Emphasize predictive maintenance (see §22.53.1) to minimize inflight failures.
- Schedule regular calibration of sensors and updates to ML models.
By integrating these modules for Fully Autonomous Flight, the Autopilot System evolves to handle every phase of flight with minimal pilot input. This transition aligns with GAIA’s commitment to quantum-forward innovation and safety, with each algorithmic layer ensuring:
- Enhanced Safety: Quick, intelligent responses to anomalies or emergencies.
- Optimized Efficiency: Continual route adjustments powered by AI or quantum analytics.
- Regulatory Compliance: Adhering to new pilotless or reduced-crew standards.
Strategies:
-
Automation of Routine Tasks:
- Automating data logging, system diagnostics, and maintenance scheduling to reduce manual workload.
- Implementing automated alerts for maintenance needs based on real-time system performance.
-
Streamlined Maintenance Procedures:
- Developing standardized maintenance protocols that are easy to follow and execute.
- Utilizing CMMS for efficient tracking and management of maintenance activities.
-
Resource Optimization:
- Allocating maintenance resources based on predictive maintenance insights.
- Ensuring optimal use of personnel and equipment to maximize efficiency.
Technological Integrations:
-
Digital Twins:
- Creating virtual replicas of the Autopilot System for real-time monitoring and simulation.
- Using digital twins to test and validate system changes before implementation.
-
Internet of Things (IoT):
- Connecting system components to IoT devices for enhanced data collection and system monitoring.
- Leveraging IoT for remote diagnostics and support.
-
Blockchain for Maintenance Records:
- Utilizing blockchain technology to secure and verify maintenance records.
- Ensuring data integrity and traceability for all maintenance activities.
Training Initiatives:
-
Advanced Training Programs:
- Offering specialized training on new technologies and system enhancements.
- Providing access to online learning platforms for continuous education.
-
Cross-Functional Training:
- Training maintenance personnel in multiple areas to increase flexibility and efficiency.
- Encouraging knowledge sharing across different maintenance teams.
-
Certification and Accreditation:
- Ensuring all maintenance personnel hold up-to-date certifications.
- Offering advanced certifications for specialized skills and knowledge areas.
Monitoring Tools:
-
Real-Time Performance Dashboards:
- Implementing dashboards that provide real-time insights into system performance.
- Allowing operators to quickly identify and address performance issues.
-
Feedback Loops:
- Establishing channels for personnel to provide feedback on system performance and maintenance procedures.
- Using feedback to inform continuous improvement initiatives.
Evaluation Metrics:
- System Uptime: Measuring the availability and reliability of the Autopilot System.
- Maintenance Efficiency: Assessing the time and resources required to perform maintenance tasks.
- User Satisfaction: Gathering feedback from pilots and maintenance personnel on system usability and performance.
- Safety Incidents: Tracking and analyzing any safety-related incidents involving the Autopilot System.
Conclusion:
Ensuring scalability and operational efficiency of the Autopilot System is essential for adapting to future advancements and expanding operational demands. By integrating emerging technologies, optimizing maintenance procedures, and fostering continuous training, the GAIA AIR – Ampel360XWLRGA Aircraft can maintain a high level of performance, reliability, and safety.
Final Remarks and Next Steps
The FTC_22-00-00-00-000_ATA_22-Autopilot document for the GAIA AIR – Ampel360XWLRGA Aircraft lays out a forward-thinking approach to autopilot design, integration, maintenance, and evolution. By harmonizing regulatory compliance, safety, and sustainability with emerging technologies such as AI, quantum computing, digital twins, and sensor fusion, this framework positions GAIA AIR to lead aviation into a new era of operational efficiency and environmental responsibility.
-
Advanced AI Integration
- Deep Learning for Autonomy: Real-time adaptation to conditions like sudden weather shifts or subsystem failures.
- Predictive Maintenance: Machine learning models leverage sensor and historical data, detecting anomalies early to reduce unplanned downtime.
-
Quantum Computing Horizons
- High-Speed Optimization: Near-instant route planning updates powered by quantum algorithms for superior efficiency.
- Post-Quantum Security: Quantum-resistant cryptography guards against next-generation cyber threats.
-
Sensor and IoT Ecosystem
- Enhanced Situational Awareness: LiDAR, infrared, and optical sensors create 3D environmental maps for precise landings and obstacle detection.
- Real-Time Data Exchange: IoT sensor networks unify onboard systems, ground stations, and maintenance hubs.
-
Modular and Sustainable Design
- Scalable Architecture: Adaptable to a spectrum of aircraft, from large commercial jets to eVTOLs, using open standards and well-documented interfaces.
- Circular Economy Focus: Lightweight, recyclable materials minimize emissions and enable component reuse or remanufacturing.
-
Digital Twin and Predictive Maintenance
- Live System Mirroring: Digital twins continuously track real-time operational data, enabling early fault detection.
- CMMS Integration: Automated work orders and thorough diagnostics reduce maintenance turnaround times.
-
Human Factors and Training
- Ergonomic HMI: Logical interfaces, consistent symbolic language, and reduced pilot workload.
- AR and Voice Interaction: Enhanced training scenarios and streamlined operator inputs elevate flight safety and efficiency.
-
Regulatory Compliance and Sustainability
- Global Standards: Conformance with EASA, FAA, and ISO specifications paves the way for multinational certifications.
- Eco-Efficiency: Intelligent flight profiles, energy-efficient systems, and life-cycle assessments align with modern environmental mandates.
-
Refine AI and Sensor Fusion
- Reinforcement Learning: Adapt control parameters on-the-fly in response to changing flight conditions.
- Extended Sensor Suite: Incorporate advanced LiDAR, hyperspectral imaging, or radar technologies for richer data.
-
Leverage Quantum Advancements
- Early Prototypes: Collaborate with hardware providers to validate quantum optimization in route planning.
- Post-Quantum Security: Embed lattice- and code-based cryptography into key management systems.
-
Enhance Digital Twin Capabilities
- Autonomous Diagnostics: Refine real-time simulations to suggest reconfigurations or repairs automatically.
- Maintenance Analytics: Use AI to optimize scheduling, inventory, and resource planning.
-
Sustainability Roadmap
- Next-Gen Materials: Research nanocomposites or bio-resins for further weight reduction.
- Green Operations: Expand autopilot capabilities to integrate with airspace management systems, cutting congestion and emissions.
-
Training, Certification, and Human Factors
- Extended AR/VR: Offer immersive training modules, including advanced scenario-based drills.
- Feedback Loops: Continuously gather input from pilots and technicians to refine the system’s user interface.
By systematically evolving the Autopilot System through rigorous testing, integrated feedback loops, and strategic partnerships, GAIA AIR ensures that the Ampel360XWLRGA remains an industry-leading example of technological innovation and environmental stewardship. This living document will guide ongoing enhancements—supporting safer, more efficient, and more sustainable flight operations in the rapidly shifting aerospace landscape.
