Schema Discovery

Automated Discovery Behavior

When the JDBC driver connection needs to get the schema for the collection in the database, it will poll for all the collections in the database.

The driver will determine if a cached version of the schema for that collection already exists. If a cached version does not exist, it will sample the collection for documents and create a schema based on the following behavior.

Basics of Schema Discovery

In general, schema discovery works as follows:

A DocumentDB collection is mapped to a SQL table. There will always be a SQL table with the same name as the collection.
Each DocumentDB collection's "simple" (i.e., not sub-document or array) field becomes a SQL column.
Each DocumentDB collection's "complex" (i.e., sub-document or array) field becomes an additional SQL virtual table, with a foreign key relationship between these tables from the same collection based on the id field for that document and for arrays, the array index.
SQL virtual tables created will use the naming convention collection_field, where the name of the table is the name of the collection followed by the field containing the virtual table, with underscores in between. This can be embedded to any depth for complex fields that contain more complex fields within them (e.g., collection_field1_field2_field3).

Schema Generation Limitations

The DocumentDB JDBC driver imposes a limit on the length of identifiers at 128 characters. The schema generator may truncate the length of generated identifiers (table names and column names) to ensure they fit that limit.

Scanning Method Options

The sampling behavior can be modified using connection string or datasource options.

scanMethod=<option>
- random - (default) The sample documents are returned in random order.
- idForward - The sample documents are returned in order of id.
- idReverse - The sample documents are returned in reverse order of id.
- all - Sample all the documents in the collection.
scanLimit=<n> - The number of documents to sample. The value must be a positive integer. The default value is 1000. If scanMethod is set to all, this option is ignored.

DocumentDB Data Types

The DocumentDB server supports a number of MongoDB data types. Listed below are the supported data types, and their associated JDBC data types.

MongoDB Data Type	Supported in DocumentDB	JDBC Data Type
Binary Data	Yes	VARBINARY
Boolean	Yes	BOOLEAN
Double	Yes	DOUBLE
32-bit Integer	Yes	INTEGER
64-bit Integer	Yes	BIGINT
String	Yes	VARCHAR
ObjectId	Yes	VARCHAR
Date	Yes	TIMESTAMP
Null	Yes	VARCHAR
Regular Expression	Yes	VARCHAR
Timestamp	Yes	TIMESTAMP
MinKey	Yes	VARCHAR
MaxKey	Yes	VARCHAR
Object	Yes	virtual table
Array	Yes	virtual table
Decimal128	Yes	DECIMAL
JavaScript	No	VARCHAR
JavaScript (with scope)	No	VARCHAR
Undefined	No	VARCHAR
Symbol	No	VARCHAR
DBPointer (4.0+)	No	VARCHAR

Mapping Scalar Document Fields

When scanning a sample of documents from a collection, the JDBC driver will create one or more schema to represent the samples in the collection. In general, a scalar field in the document maps to a column in the table schema. For example, in a collection named team, and a single document { "_id" : "112233", "name" : "Alastair", "age" : 25 }, this would map to schema:

Table Name	Column Name	Data Type	Key
team	team__id	VARCHAR	PK
team	name	VARCHAR
team	age	INTEGER

Data Type Conflict Promotion

When scanning the sampled documents, it is possible that the data types for a field are not consistent from document to document. In this case, the JDBC driver will promote the JDBC data type to a common data type that will suit all data types from the sampled documents.

Example

{
  "_id" : "112233",
  "name" : "Alastair",
  "age" : 25
}

{
  "_id" : "112244",
  "name" : "Benjamin",
  "age" : "32"
}

The age field is of type 32-bit integer in the first document but string in the second document. Here the JDBC driver will promote the JDBC data type to VARCHAR to handle either data type when encountered.

Table Name	Column Name	Data Type	Key
team	team__id	VARCHAR	PK
team	name	VARCHAR
team	age	VARCHAR

Scalar-Scalar Conflict Promotion

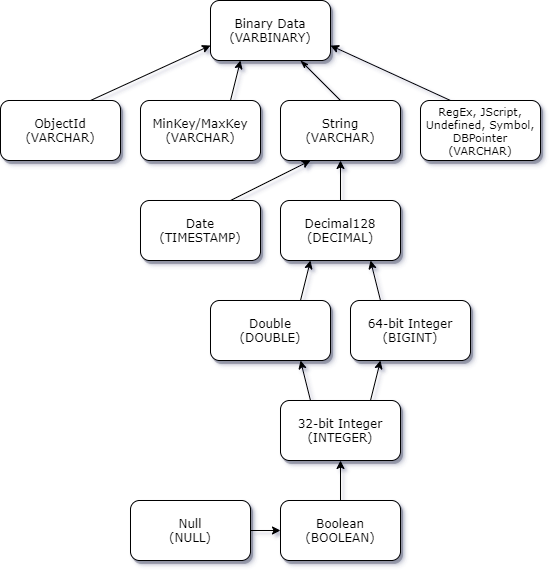

The following diagram shows the way in which scalar-scalar data type conflicts are resolved.

Object and Array Data Type Handling

So far, we've only described how scalar data types are mapped. Object and Array data types are (currently) mapped to virtual tables. The JDBC driver will create a virtual table to represent either object or array fields in a document. The name of the mapped virtual table will concatenate the original collection's name followed by the field's name separated by an underscore character ("_").

The base table's primary key ("_id") takes on a new name in the new virtual table and is provided as a foreign key to the associated base table.

For embedded array type fields, index columns are generated to represent the index into the array at each level of the array.

Embedded Object Field Example

For object fields in a document, a mapping to a virtual table is created by the JDBC driver.

Collection: customer

{
  "_id" : "112233",
  "name" : "George Jackson",
  "address" : {
    "address1" : "123 Avenue Way",
    "address2" : "Apt. 5",
    "city" : "Hollywood",
    "region" : "California",
    "country" : "USA",
    "code" : "90210"
  }
}

maps to schema for customer table, ...

Table Name	Column Name	Data Type	Key
customer	customer__id	VARCHAR	PK
customer	name	VARCHAR

... and the customer_address virtual table

Table Name	Column Name	Data Type	Key
customer_address	customer__id	VARCHAR	PK/FK
customer_address	address1	VARCHAR
customer_address	address2	VARCHAR
customer_address	city	VARCHAR
customer_address	region	VARCHAR
customer_address	country	VARCHAR
customer_address	code	VARCHAR

So the resulting data in the two tables would look like this...

Table: customer

customer__id	name
"112233"	"George Jackson"

Virtual Table: customer_address

customer__id	address1	address2	city	region	country	code
"112233"	"123 Avenue Way"	"Apt. 5"	"Hollywood"	"California"	"USA"	"90210"

To query the data and return all columns, use the following query with a JOIN statement to get the matching address data.

SELECT * FROM "customer"
  INNER JOIN "customer_address"
    ON "customer"."customer__id" = "customer_address"."customer__id"

Embedded Array Field Example

For array fields in a document, a mapping to a virtual table is also created by the JDBC driver.

Collection: customer1

{
  "_id" : "112233",
  "name" : "George Jackson",
  "subscriptions" : [
    "Vogue",
    "People",
    "USA Today"
  ]
}

maps to schema for the customer1 table, ...

Table Name	Column Name	Data Type	Key
customer1	customer1__id	VARCHAR	PK
customer1	name	VARCHAR

... and the customer1_subscriptions virtual table

Table Name	Column Name	Data Type	Key
customer1_subscriptions	customer1__id	VARCHAR	PK/FK
customer1_subscriptions	subscriptions_index_lvl0	BIGINT	PK
customer1_subscriptions	value	VARCHAR

So the resulting data in the two tables would look like this...

Table: customer1

customer1__id	name
"112233"	"George Jackson"

Virtual Table: customer1_subscriptions

customer1__id	subscriptions_index_lvl0	value
"112233"	0	"Vogue"
"112233"	1	"People"
"112233"	2	"USA Today"

To query the data and return all columns, use the following query with a JOIN statement to get the matching subscriptions data.

SELECT * FROM "customer1"
  INNER JOIN "customer1_subscriptions"
    ON "customer"."customer1__id" = "customer_address"."customer1__id"

Scalar-Complex Type Conflict Promotion

Like the scalar-scalar type conflicts, the same field in different documents can have conflicting data types between complex (array and object) and scalar (integer, boolean, etc.). All of these conflicts are resolved (promoted) to VARCHAR for those fields. In this case, array and object data is returned as the JSON representation.

Embedded Array - String Field Conflict Example

Collection: customer2

{
  "_id" : "112233",
  "name" : "George Jackson",
  "subscriptions" : [
    "Vogue",
    "People",
    "USA Today"
  ]
}

{
  "_id" : "112244",
  "name" : "Joan Starr",
  "subscriptions" : 1
}

maps to schema for the customer2 table, ...

Table Name	Column Name	Data Type	Key
customer2	customer2__id	VARCHAR	PK
customer2	name	VARCHAR
customer2	subscription	VARCHAR

So the resulting data in the table would look like this...

Table: customer2

customer2__id	name	subscriptions
"112233"	"George Jackson"	"[ \"Vogue\", \"People\", \"USA Today\" ]"
"112244"	"Joan Starr"	"1"
