@title[Title]

Network programming
TCP/IP programming

Server programming Overview

@title[Table of contents]

TOC

  • Basic
  • Memory efficiency
  • IO efficiency
  • Applications
  • Concurrency control

@title[IO]

IO

  • open
  • read
  • write
  • close

@title[socket]

Socket

@title[Table of contents: Basic]

Basic

  • Synchronous IO
  • Asynchronous IO
  • IO Multiplexing

@title[Synchronous IO]

Basic form.

bind(port); listen(backlog);
while (sock = accept(acceptSock)) { // blocked
  while (request = recv(sock)) { // blocked
    response = process(request);
    send(sock, response);
  }
  close(sock);
}

@title[Synchronous IO: multi-threaded]

Simple: multi-threaded.

while (sock = accept(acceptSock)) { // blocked
  thread(() => {
    while (request = recv(sock)) { // blocked
      response = process(request);
      send(sock, response);
    }
    close(sock);
  })
}

@title[Synchronous IO: multi-threaded]

Drawbacks.

  • Thread burden: allocation, scheduling costs.
  • Concurrency control.
  • Hard to throttle, control.

@title[Synchronous IO: Non-blocking]

If there is a non-blocking magic,

while (true) {
  sock = nb_accept(acceptSock);
  if (!sock) continue;
  while (true) { // How to process many sockets?
    request = nb_recv(sock); // Is it ok?
    if (!request) continue;
    if (request.end) break;
    response = process(request);
    nb_send(sock, response); // Is it ok?
  }
  close(sock);
}

@title[Synchronous IO: Non-blocking]

Drawbacks.

  • Hard to process multiple sockets.
  • Even if there is no work, but it should poll without rest.

@title[Asynchronous IO: callback]

How about a callback for asynchronous?

acceptNext = accept(acceptSock, sock => {
  processOne = () => recv(sock, request => {
    response = process(request);
    send(sock, response, processOne); // recursive
  });
  processOne();
  acceptNext(); // recursive
});

Acceptd and processes one by one.

@title[Asynchronous IO: await]

How about async and await?

(async () => {
  while (true) {
    sock = await accept(acceptSock);
    (async () => {
      while (request = await recv(sock)) {
        response = process(request);
        await send(sock, response);
      }
    })();
  }
})();

@title[Asynchronous IO: await]

What about the internal works?

@title[IO multiplexing]

Another way, IO multiplexing with select.

selector.register(acceptBegin(acceptSock));
while (true) {
  currentSock, op = selector.dequeueReadyOne();
  if (!op) { /* do other things */; continue; }
  switch (op) {
    case ACCEPT:
      selector.register(receiveBegin(acceptEnd(currentSock)));
      selector.register(acceptBegin(acceptSock));
      break;
    case RECEIVE:
      selector.register(sendBegin(process(receiveEnd(currentSock))));
      break;
    case SEND:
      selector.register(receiveBegin(currentSock));
      break;
  }
}

We can select a handle to be ready for IO works without blocking.

@title[Separation of concerns]

IO = Request + Completion.

while (completion = dequeueCompletion()) {
  if (completion.empty) { /* do other things */; continue; }
  switch (completion.type) {
    case ACCEPTED:
      receive(completion.sock, buffer);
      break;
    case RECEIVED:
      response = process(completion.buffer);
      send(completion.sock, response);
      break;
    case SENT:
      receive(completion.sock, buffer);
      break;
  }
}

@title[Ready? Completion?]

Ready or Completion

  • Because it is ready, we don't need to block.
  • Because it is completed, we don't need to block.

But in the completion case,

  • Kernel should do more work.

@title[Diagram: select]

select

select

@title[Diagram: iocp]

IOCP

iocp

@title[More]

  • How to find the begin and end of a message.
  • How to sort an order of messages.
  • How to process an error of each cases.
  • Can it use multi-core with efficient way?
  • Can it use core properly when there is no IO work?

@title[Table of contents: Memory efficiency]

Memory efficiency

  • Memory copy
  • Registered IO

@title[Memory copy]

Memory copy

memory-copy

Alive?

A memory in userspace

  • can be pagable. paged pool
  • can be deallocated before IO completion.
  • can be insufficient.
char* buffer = new char[4096]; // If data is bigger than this?
read_async(socket, buffer, 4096); // If buffer is paged?
delete buffer; // What the?

Page locking

  • Make a memory not to be paging.

Non paged pool

  • Memory space which doesn't be paged.

Zero-byte-receive

Steps
  1. Request 0-bytes receive.
  2. Receive a length from completion.
  3. Allocate a buffer of that size and receive data.
Benefits
  • Because of 0-bytes in step 1, it doesn't lock a memory.
  • Because data is ready in step 3, it doesn't lock a memory.

@title[Registered]

Registered IO

  • A lock is a sufficiently expensive resource.
  • Resources in kernel should have a their lock.
  • Can we avoid this?

The answer is registering these resources at startup.

Registered IO on Microsoft.

  • Register a request and completion queue.
  • Register buffers.

And almost same with IOCP, but,

  • Must manage manually concurrency of them.

See also,

@title[Table of contents: IO efficiency]

IO efficiency

  • Nagel algorithm
  • QUIC
  • DPDK

@title[Nagle's algorithm]

Nagle's algorithm

Nagle's algorithm is a means of improving the efficiency of TCP/IP networks by reducing the number of packets that need to be sent over the network.

  • Then, is it the best solution for all situations?

@title[QUIC]

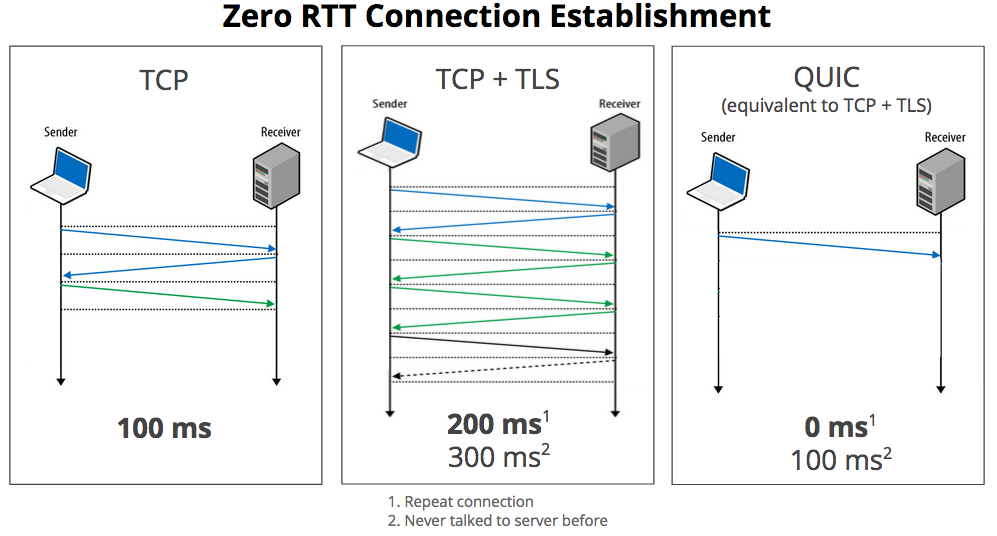

Quick UDP Internet Connections

QUIC is a new transport which reduces latency compared to that of TCP. On the surface, QUIC is very similar to TCP+TLS+HTTP/2 implemented on UDP.

QUIC

@title[dpdk]

Data plane development kit

The Data Plane Development Kit (DPDK) is a set of data plane libraries and network interface controller drivers for fast packet processing, currently managed as an open-source project under the Linux Foundation. The DPDK includes data plane libraries and optimized network interface controller (NIC) drivers.

  • A queue manager implements lockless queues.
  • A buffer manager pre-allocates fixed size buffers.
  • A memory manager allocates pools of objects in memory and uses a ring to store free objects; ensures that objects are spread equally on all DRAM channels.
  • Poll mode drivers (PMD) are designed to work without asynchronous notifications, reducing overhead.
  • A packet framework – a set of libraries that are helpers to develop packet processing.


@title[Table of contents: Applications]

Applications

  • Remote procedure call w/ message format, serializer

@title[RPC]

Remote procedure call

Remote procedure call (RPC) is when a computer program causes a procedure (subroutine) to execute in a different address space (commonly on another computer on a shared network), which is coded as if it were a normal (local) procedure call, without the programmer explicitly coding the details for the remote interaction.

In client,

const result = server.add(1, 2);

In server,

module.exports.add = (a, b) => a + b;

How could do this?

rpc-sequence

@title[Serialization]

Serialization

Serialization is the process of translating data structures or object state into a format that can be stored (for example, in a file or memory buffer) or transmitted (for example, across a network connection link) and reconstructed later (possibly in a different computer environment).

@title[Serialization: Examples]

Serialization with

@title[More and more]

Think more

  • What is your domain?
  • How about your expected Packet/Secs or Bandwidth/Secs?
  • Is it has CPU-bound or IO-bound? Or does it have another IO job such as serving static files?
  • What about your messaging format?
  • Isn't there another protocol or integration method?
