Multiplayer Vault and Mantle Movement Ability Documentation

How to Set It Up Using The Third Person Template

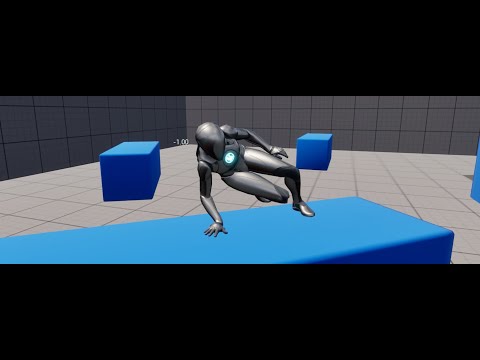

This tutorial shows how you can set up the Vault and Mantle ability using the Third Person Template and the VaultOver animation from the Windwalker Echo, both provided by Epic.

It should be pretty straightforward to set it up on any project, just follow along and adjust according to your specific project details.

1. Create a C++ game project with the provided Third Person Template

2. Enabling Required Plugins

Launch the editor and go to Edit > Plugins and enable the following plugins:

GameplayAbilities

MotionWarping

VaultMantle

3. Adding the MotionWarpingComponent to the your Character

Just simple add the MotionWarpingComponent to your Blueprint Character:

4. Setting up the Gameplay Ability System (GAS)

For the sake of simplifying things a bit, let's set up the Gameplay Ability System Component in the Character. First, add the necessary dependencies to the project:

Add the following dependencies to YourProject.Build.cs:

PublicDependencyModuleNames.AddRange(
    new string[]
    {
        "Core",
        "CoreUObject",
        "Engine",
        "InputCore",
        "EnhancedInput",
        "GameplayAbilities",
        "GameplayTags",
        "GameplayTasks",
    }
);

Add the UAbilitySystemComponent to the YourCharacterClass.h:

In your YourCharacterClass.h add #include <AbilitySystemInterface.h> and forward declare the ability system component. Also add the interface to the character and the GetAbilitySystemComponent method declaration. You should have something like the following:

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include <AbilitySystemInterface.h>
#include "YourCharacterClass.generated.h"

class UAbilitySystemComponent;

UCLASS(config=Game)
class AYourCharacterClass : public ACharacter, public IAbilitySystemInterface
{
	GENERATED_BODY()

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = GameplayAbility, meta = (AllowPrivateAccess = "true"))
	TObjectPtr<UAbilitySystemComponent> AbilitySystemComponent;

    // other stuff

public:
	// Begin Ability System Interface
	UAbilitySystemComponent* GetAbilitySystemComponent() const override;
	// End Ability System Interface
}

Create the AbilitySystemComponent and implement interface

In your AYourCharacterClass.cpp file include the AbilitySystemComponent.h header, add the GetAbilitySystemComponent method implementation, and also setup the AbilitySystemComponent like so:

// other includes
#include <AbilitySystemComponent.h>

AYourCharacterClass::AYourCharacterClass()
{
	AbilitySystemComponent = CreateDefaultSubobject<UAbilitySystemComponent>(TEXT("AbilitySystemComponent"));
	AbilitySystemComponent->SetIsReplicated(true);
	AbilitySystemComponent->SetReplicationMode(EGameplayEffectReplicationMode::Mixed);
}

UAbilitySystemComponent* AYourCharacterClass::GetAbilitySystemComponent() const
{
	return AbilitySystemComponent;
}

Granting the Ability

For simplicity, let's grant the ability on Character's BeginPlay event callback:

GA_VaultMantle parameters

If needed open the GA_VaultMantle ability and setup its parameters such as montages to play, size of trace box, and so on:

5. Setting up Inputs and Triggering the Ability

Inputs

Create a new InputAction so we can trigger the ability by pressing a key:

Add it to your InputMappingContext like so:

Triggering the Ability

For this example we're going to activate the ability by using its gameplay tag everytime we press the input key:

---

FAQ

1. My project doesn't use the Gameplay Ability System (GAS), will it work?

Unfortunately no. There is another plugin coming soon that will enable projects without GAS to have this gameplay mechanic. Stay tuned.

2. Compatible with Lyra?

Yes, but if you want to use it with the Lyra Ability Set (ULyraAbilitySet) it requires you to create a new C++ ability based on the ULyraGameplayAbility. You can simple copy and paste the relevant code from the UGameplayAbility_VaultMantle and that's it. If using the Windwalker Echo animation make sure to retarget to Lyra's character skeleton. When opening the montage you should get something similar to the following screens:

Pick a replacement for the skeleton:

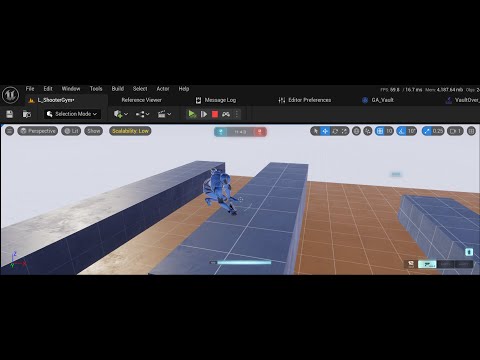

Lyra video example:
