Openfort-PlayFab Integration in Unity

Overview

PlayFab is a backend service provided by Microsoft for game developers, offering tools for live game management, all powered by Azure's cloud infrastructure.

In this sample we use PlayFab's email & password authentication method to register a new user or log in with an existing one. Once authenticaded we use PlayFab's user identity token to create a self-custodial account using Embedded Smart Accounts.

Moreover, by integrating the Openfort SDK into Azure Functions, we establish a seamless connection to PlayFab. Unity clients using the PlayFab Unity SDK can tap into these functions, accessing the full range of Openfort features within the game environment.

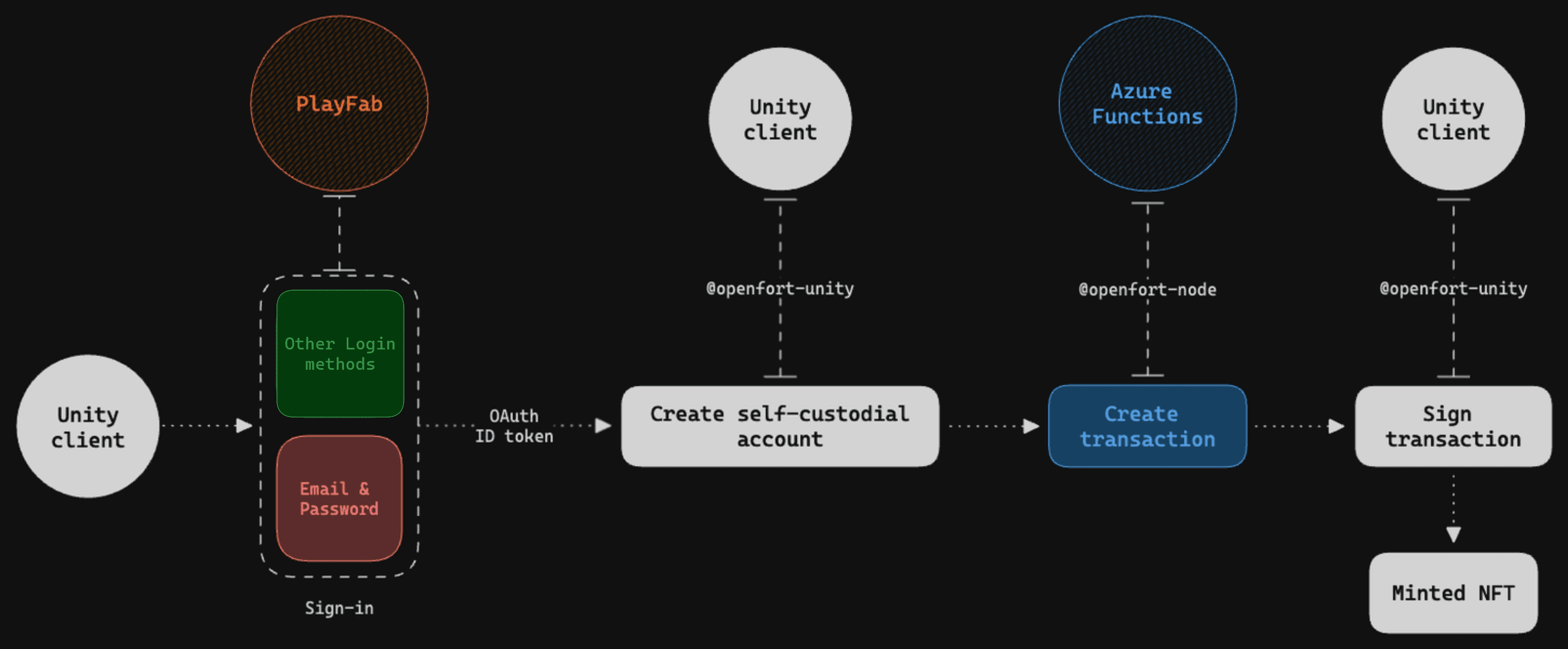

Application Workflow

Prerequisites

• Create a PlayFab account and title
• Set up your Azure development environment:
  • Configure your environment
  • Sign in to Azure
  • Create a function app
• Sign in to dashboard.openfort.xyz and create a new project
• Download or clone the sample project:
  • Open unity-client with Unity
  • Open azure-backend with VS Code

Set up Openfort

1. Add PlayFab as a provider

   Add your PlayFab title and choose Save:



2. Create Shield Keys

   In order to create secure self-custodial accounts for our players, we need to create Shield Keys:

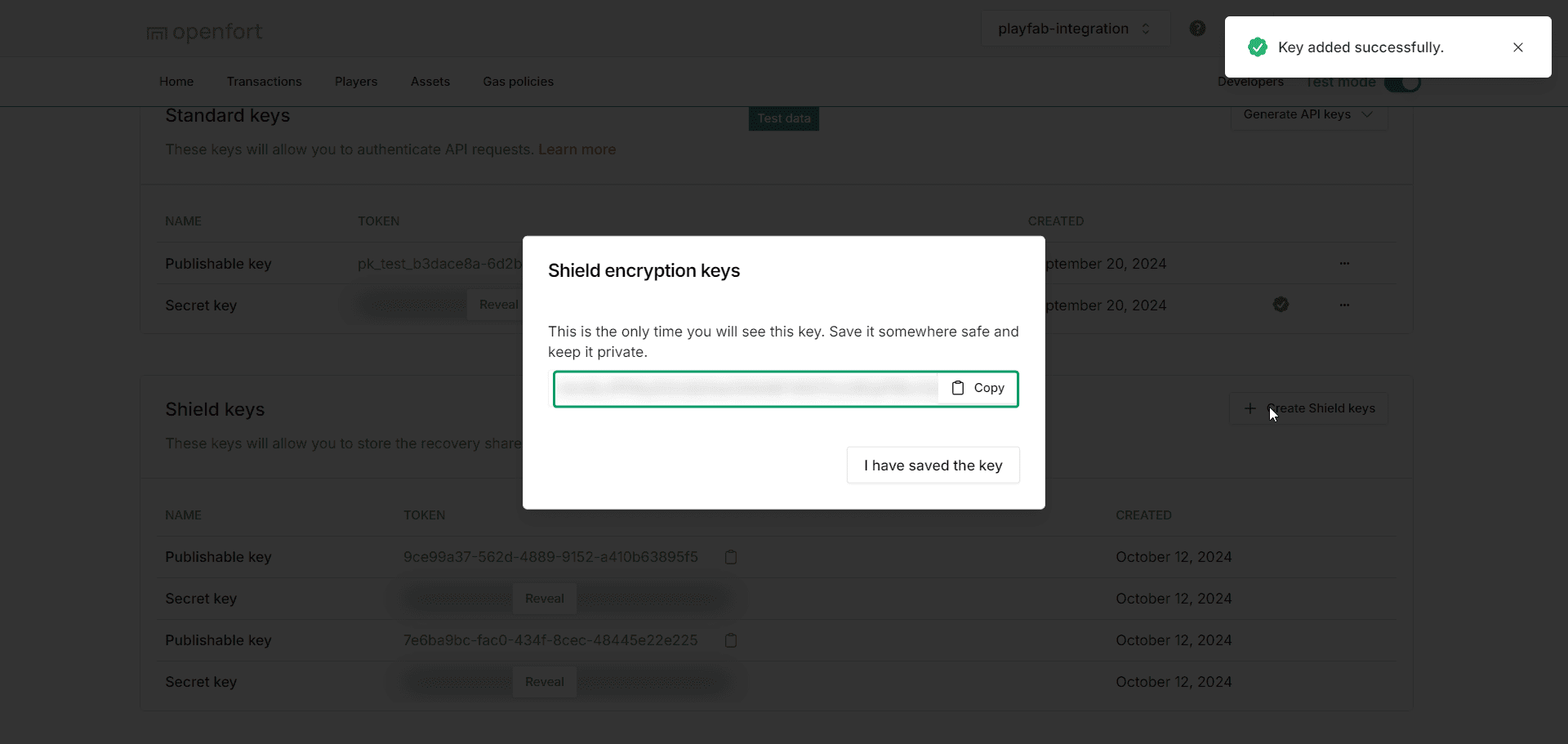

   After the creation, it's very important you save Shield Encryption Share Key, you will need it later:

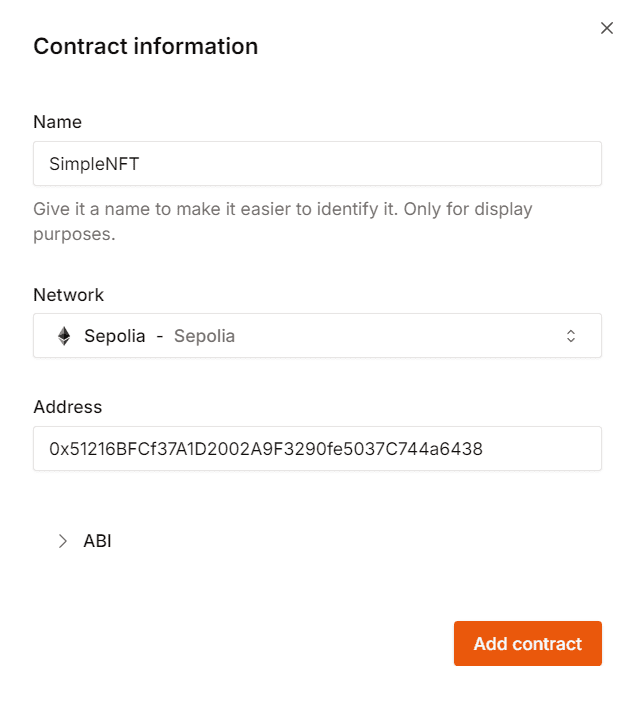

3. Add a Contract

   This sample requires a contract to run. We use 0x51216BFCf37A1D2002A9F3290fe5037C744a6438 (NFT contract deployed in Sepolia - 11155111). You can use the same to ease up things:

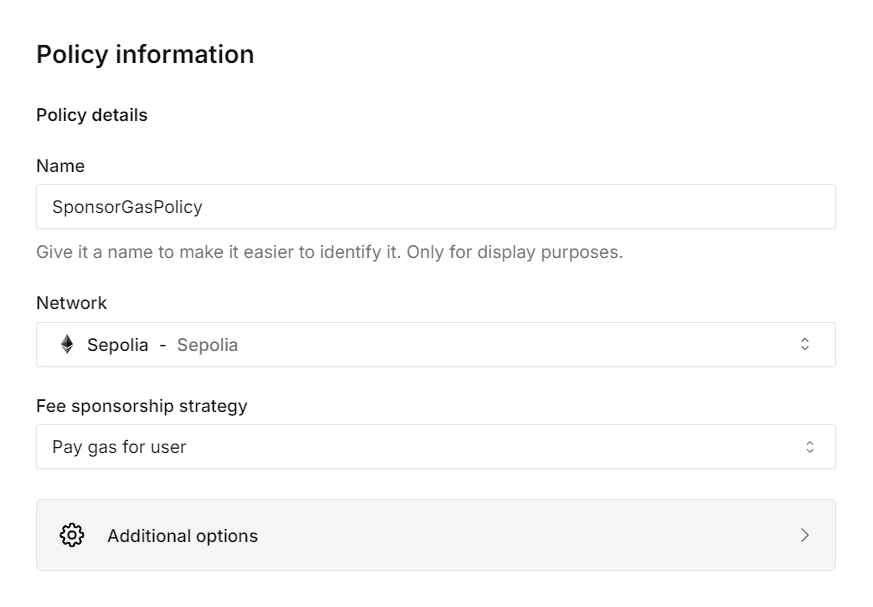

4. Add a Policy

   We aim to cover gas fees for users. Set a new gas policy:



   Now, add a rule to make our contract benefit from it:



Deploy Azure Backend

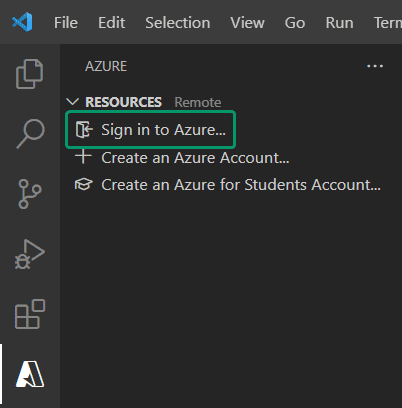

Open azure-backend with VS Code and sign in to Azure:

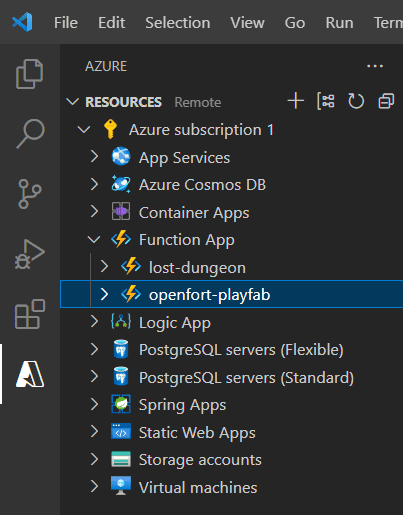

Ensure your Function App (here, it's "openfort-playfab") is listed:

In the terminal, run:

npm install

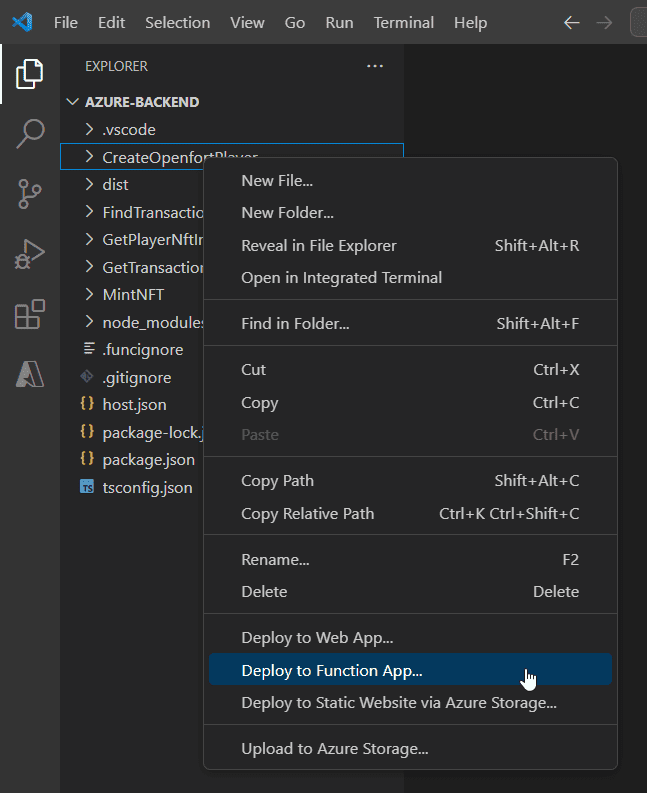

In the explorer, right-click on a function and select Deploy to Function App:

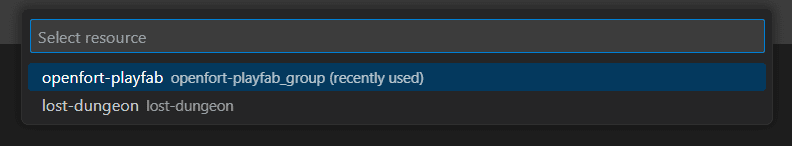

Next, choose your Function App:

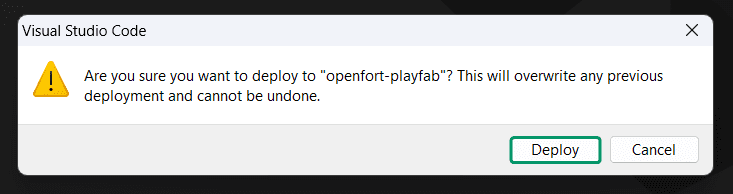

Then, click on Deploy:

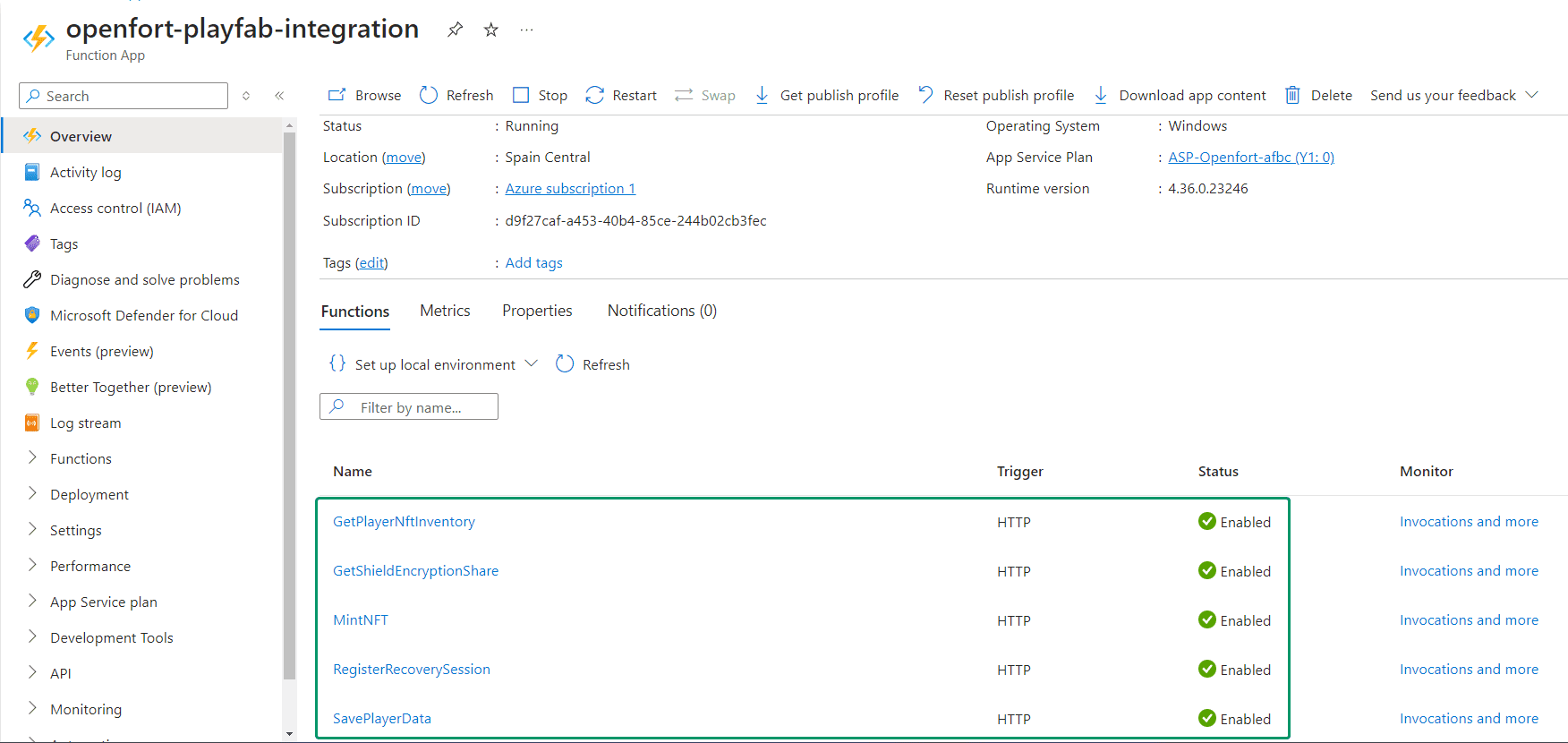

Navigate to your Azure Portal and open your Function App. You should see all the functions listed:

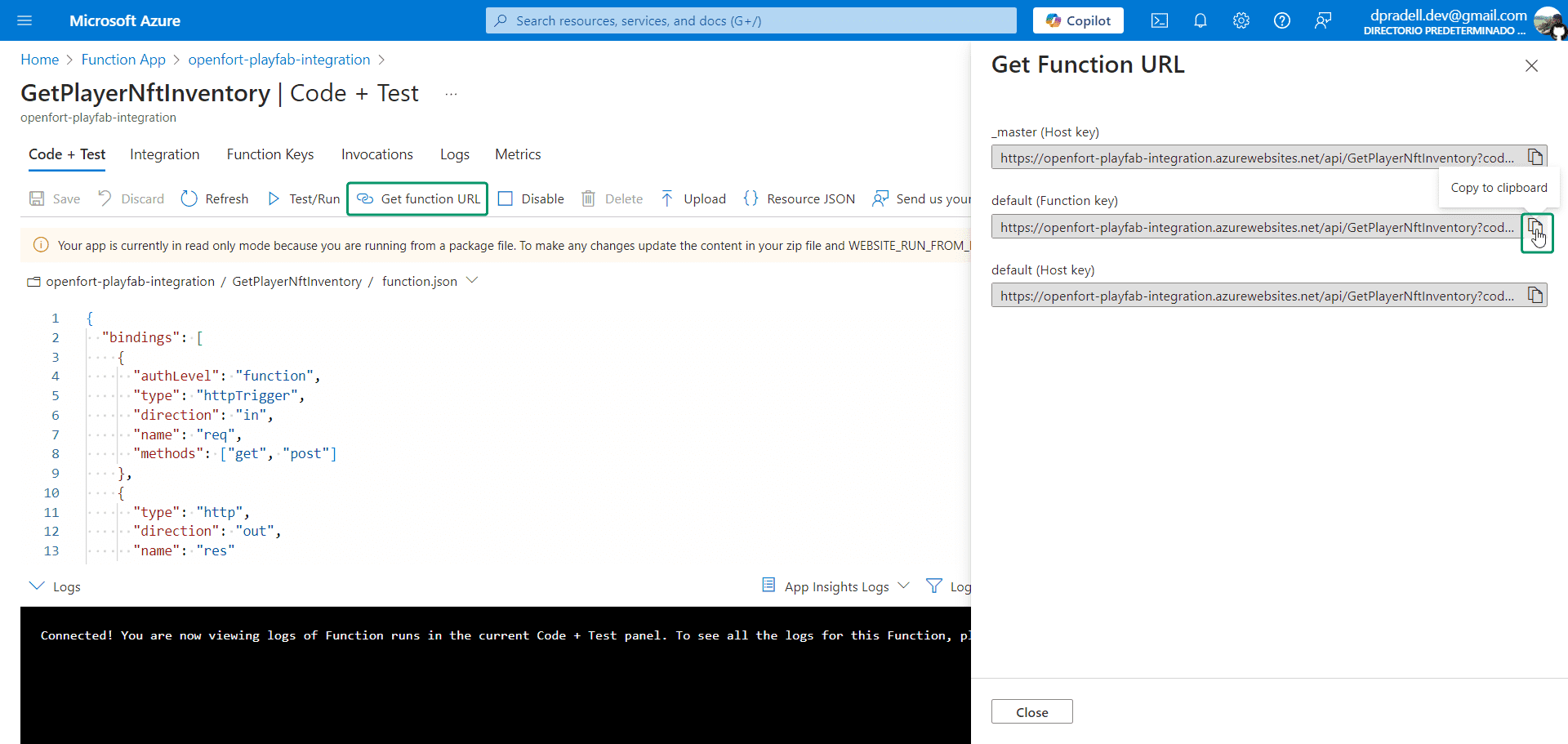

Click on any function and select Get Function Url:

Subsequently, add this URL (along with all others) to PlayFab to enable access to our Azure Functions from within PlayFab.

Set up PlayFab Title

1. Register Azure Functions

   Visit the PlayFab developer dashboard, choose your title, and click on Automation:

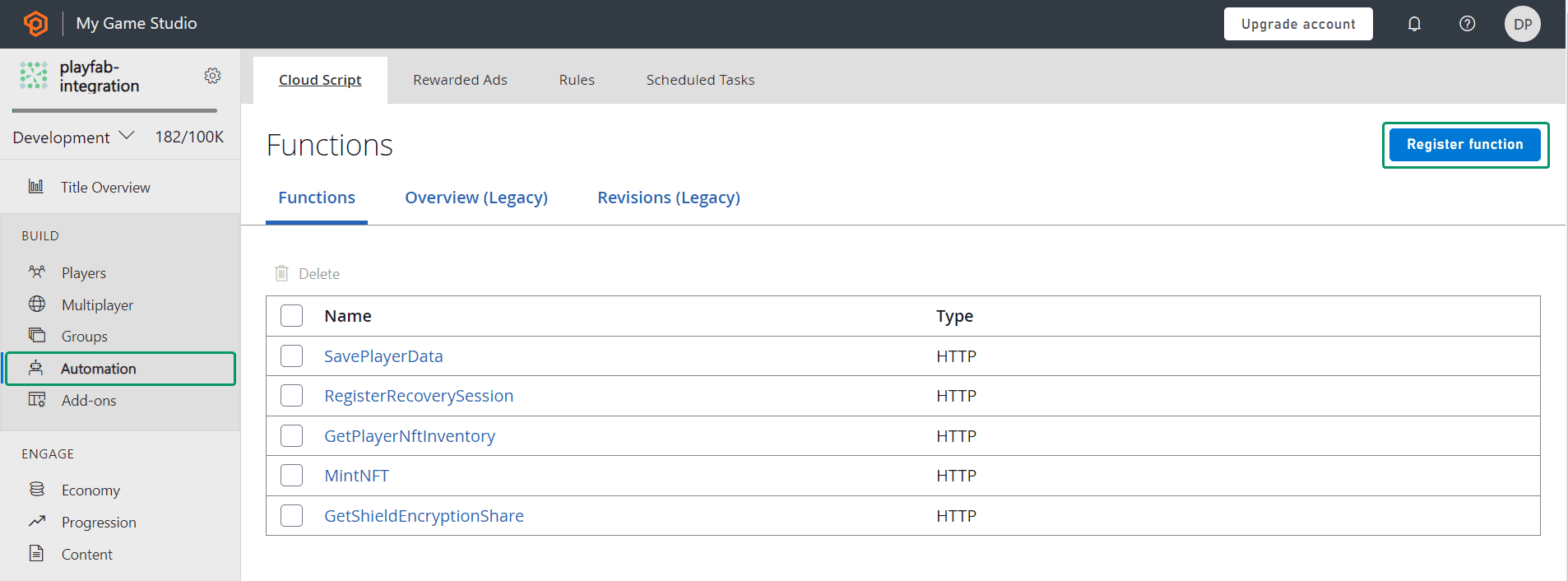

   Our functions are already registered. To do the same, click Register function and provide the function name along with its URL:



   Repeat this for all deployed functions.

Set up Azure Backend

Our Azure backend requires environment variables from both PlayFab and Openfort. Let's configure them.

1. Add Openfort Environment Variables

   • Navigate to the Azure Portal and select your Function App.
   • Under Settings --> Environment variables, click Add:


   • Provide the following details:

     • Name: OF_API_KEY
     • Value: Retrieve the API Secret key

   • Add another application setting:

     • Name: OF_SHIELD_PUB_KEY
     • Value: Retrieve the Shield Publishable Key

   • Add another application setting:

     • Name: OF_SHIELD_SECRET_KEY
     • Value: Retrieve the Shield Secret Key

   • Add another application setting:

     • Name: OF_SHIELD_ENCRYPTION_SHARE
     • Value: It's the Shield Encryption Share Key you saved before.

   • Add another application setting:

     • Name: OF_NFT_CONTRACT
     • Value: Retrieve the Contract API ID

   • Add another application setting:

     • Name: OF_SPONSOR_POLICY
     • Value: Retrieve the Policy API ID

   • And another application setting:

     • Name: OF_CHAIN_ID
     • Value: 11155111

2. Add PlayFab Environment Variables

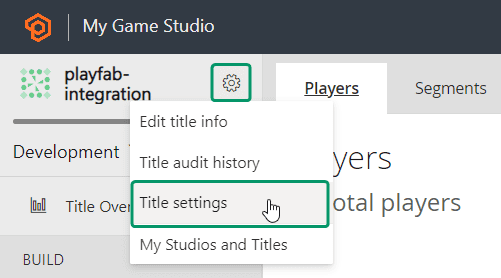

   • Visit the PlayFab developer dashboard, select your title, and navigate to Settings wheel --> Title settings:

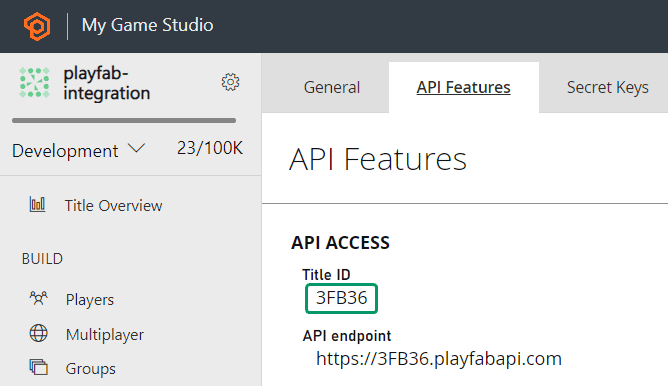

   • In the API Features section, copy your Title ID:

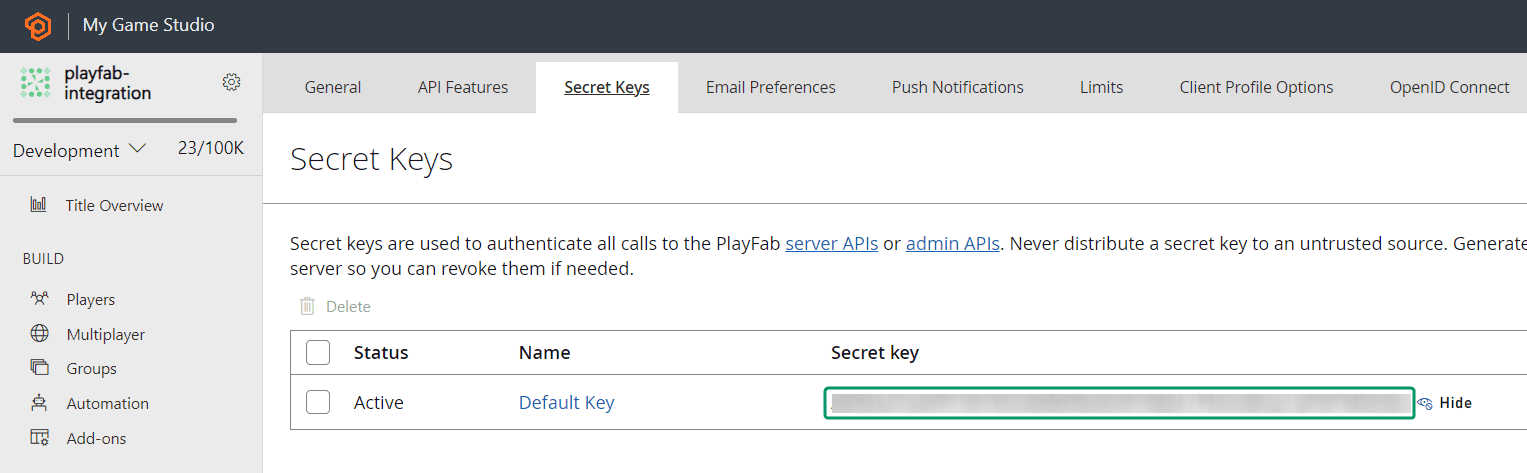

   • Under Secret Keys, note down your Secret key:



   • Return to the Azure Portal and choose your Function App.

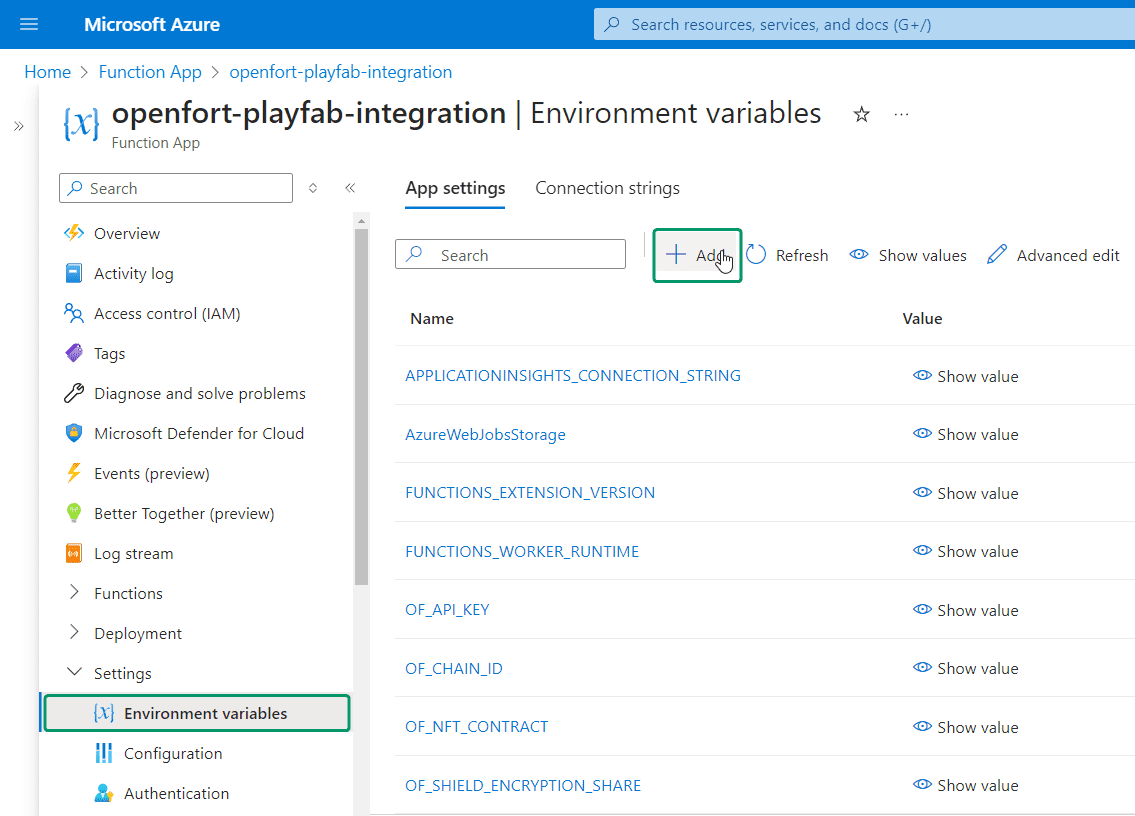

   • Under Settings --> Environment variables, click Add:

     • Name: PLAYFAB_TITLE_ID
     • Value: [Your Title ID]

   • Add another application setting:

     • Name: PLAYFAB_SECRET_KEY
     • Value: [Your Secret Key]

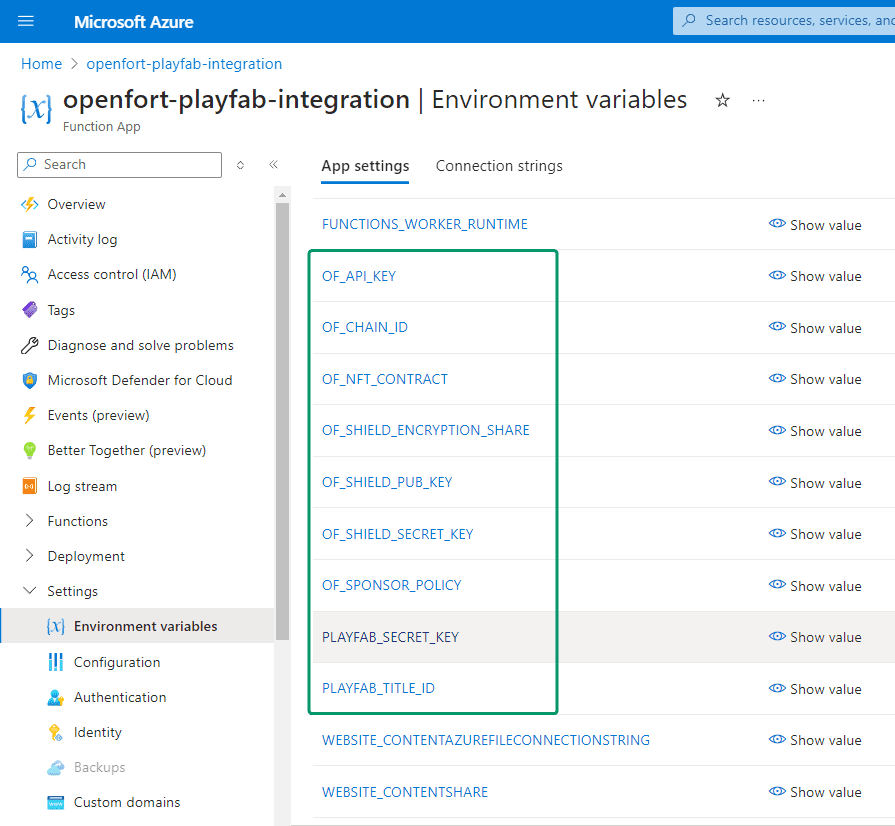

After adding all the environment variables, your configuration panel should look like the following. Confirm your changes by clicking Save:

Set up Unity Client

This Unity sample project is already equipped with:

• PlayFab Unity SDK
• Openfort SDK

To begin, open unity-client with Unity:

1. Configure PlayFab SDK

   • Navigate to the Project tab.

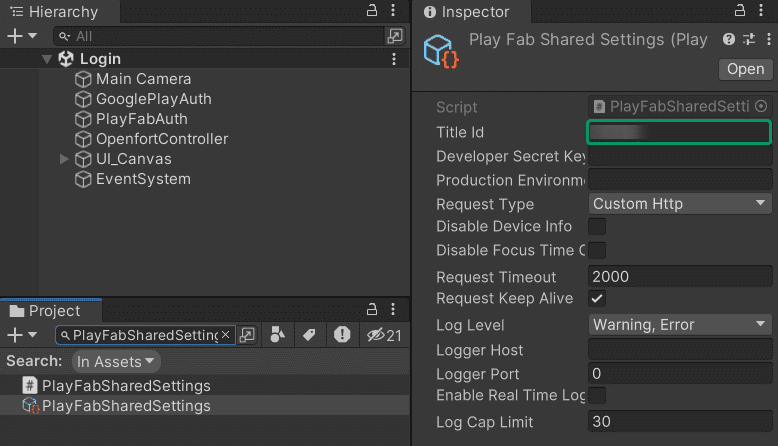

   • Search for PlayFabSharedSettings and input your PlayFab Title ID:


2. Configure Openfort SDK

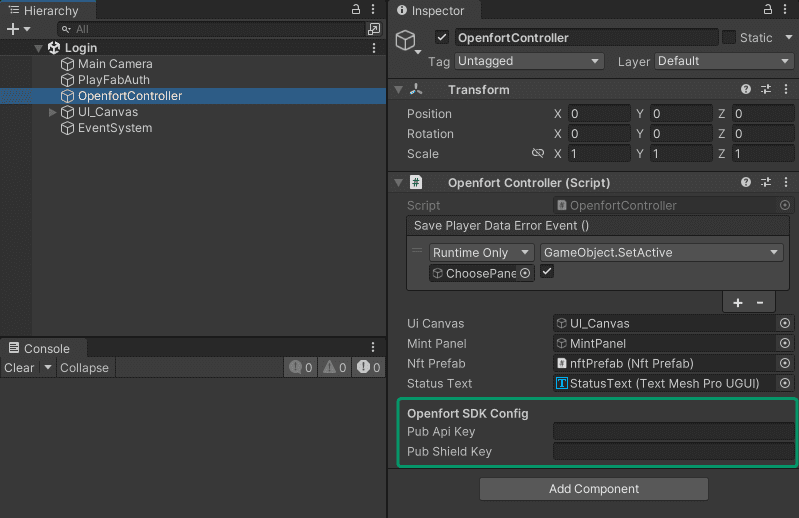

   • Open the Login scene and add the API Publishable Key and the Shield Publishable Key to the OpenfortController config section:


Test in Editor

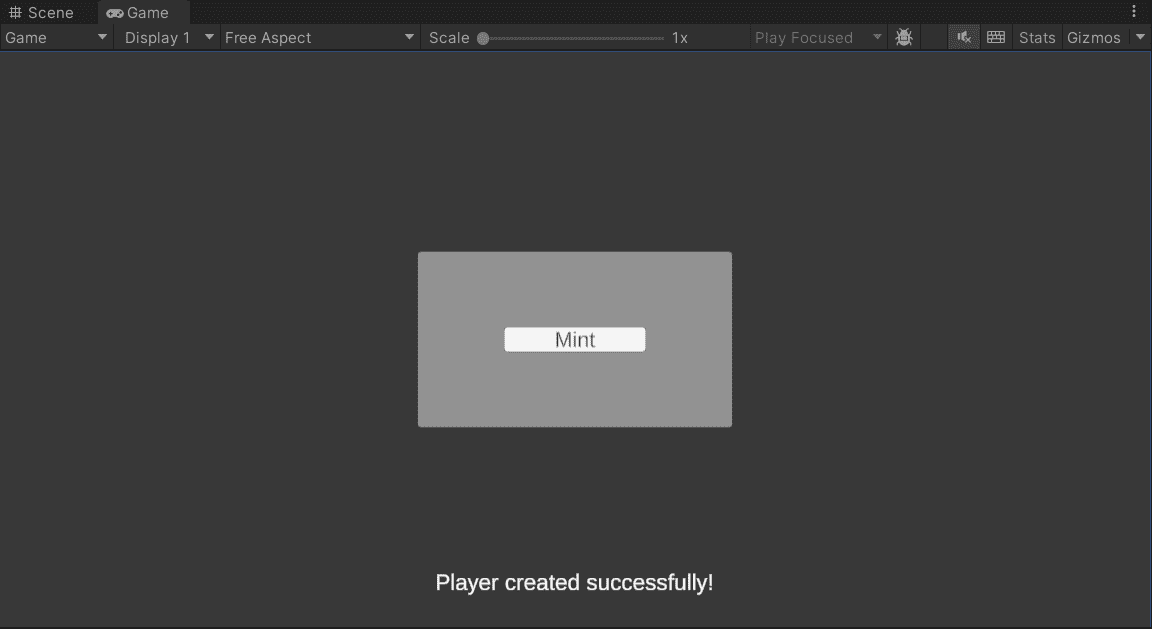

Play Login scene, opt for Register, provide an email and password, then click Register again. This scene should appear:

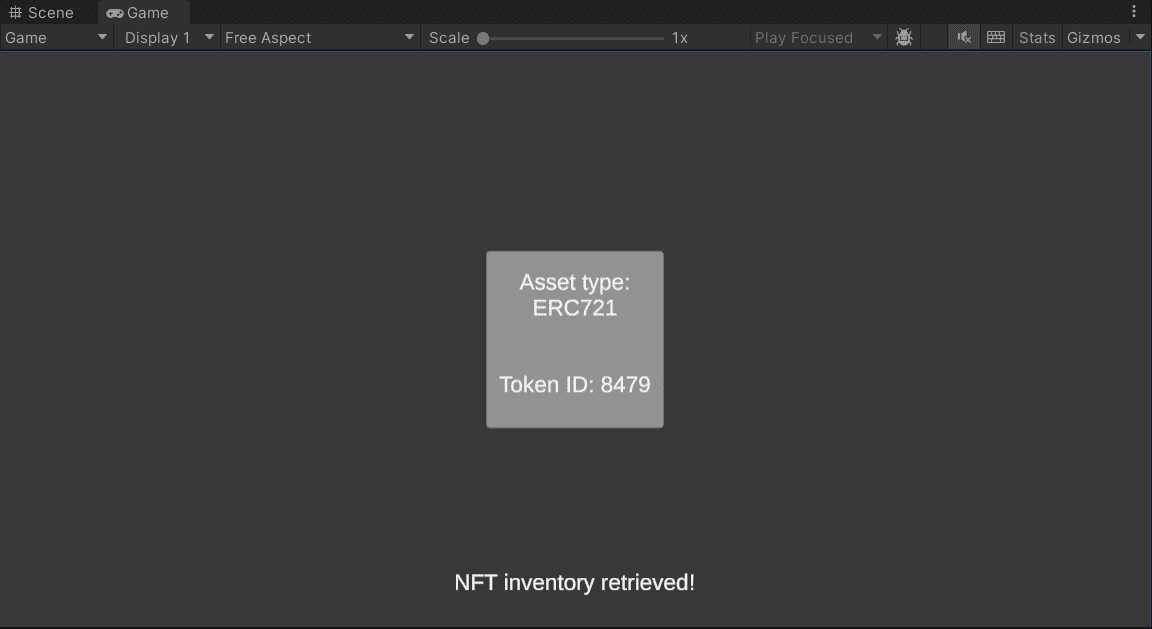

Select Mint. After a brief period, you should see a representation of your newly minted NFT:

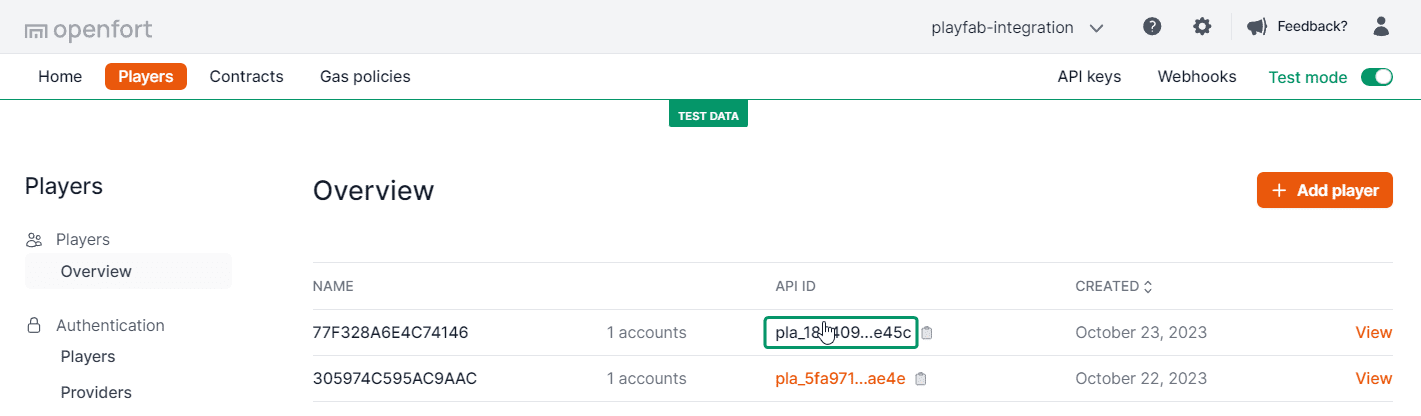

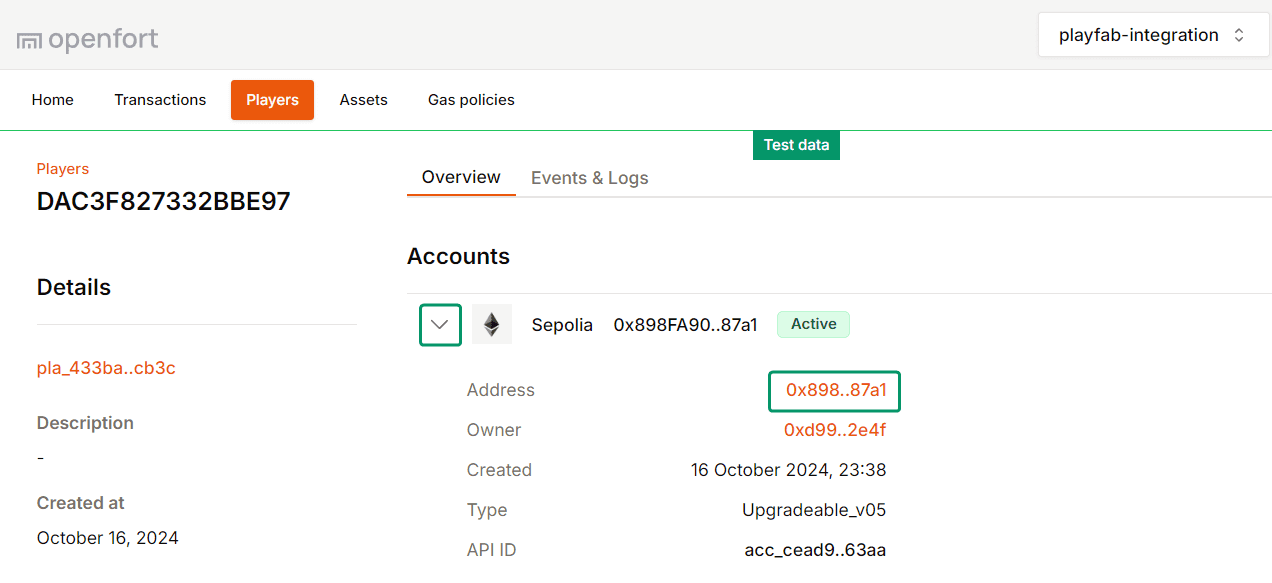

In the Openfort Players dashboard, a new player entry should be visible. On selecting this player:

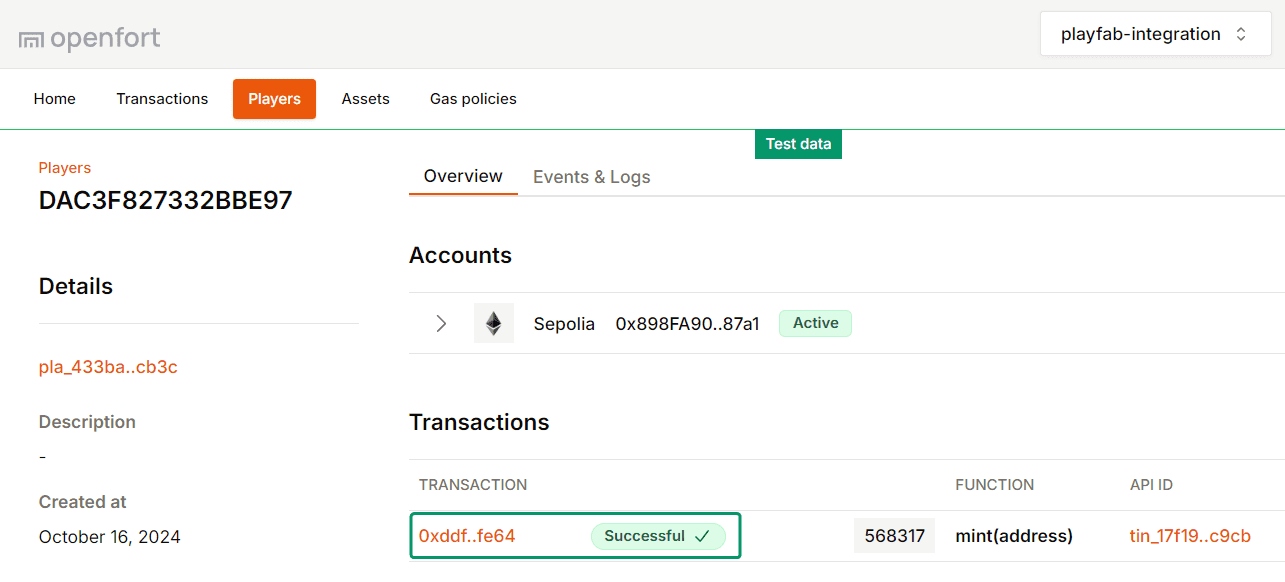

You'll notice that a mint transaction has been successfully processed:

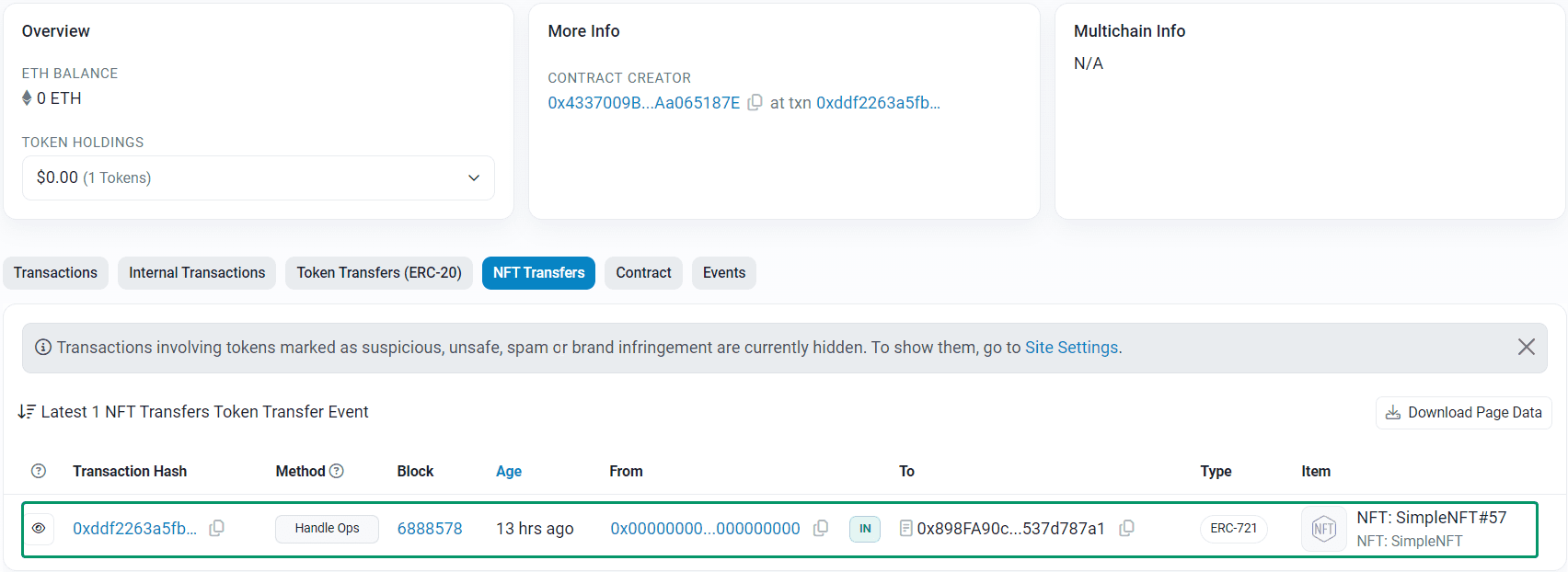

Additionally, by choosing your Sepolia Wallet Address, the explorer will open and by selecting NFT Transfers tab you'll see the transaction is further confirmed:

Conclusion

Upon completing the above steps, your Unity game will be fully integrated with Openfort and PlayFab. Always remember to test every feature before deploying to guarantee a flawless player experience.
